AKD Benutzerhandbuch | 24.7.3 CAP0.EVENT, CAP1.EVENT
Event
0
1
2
3
Example
Event 0

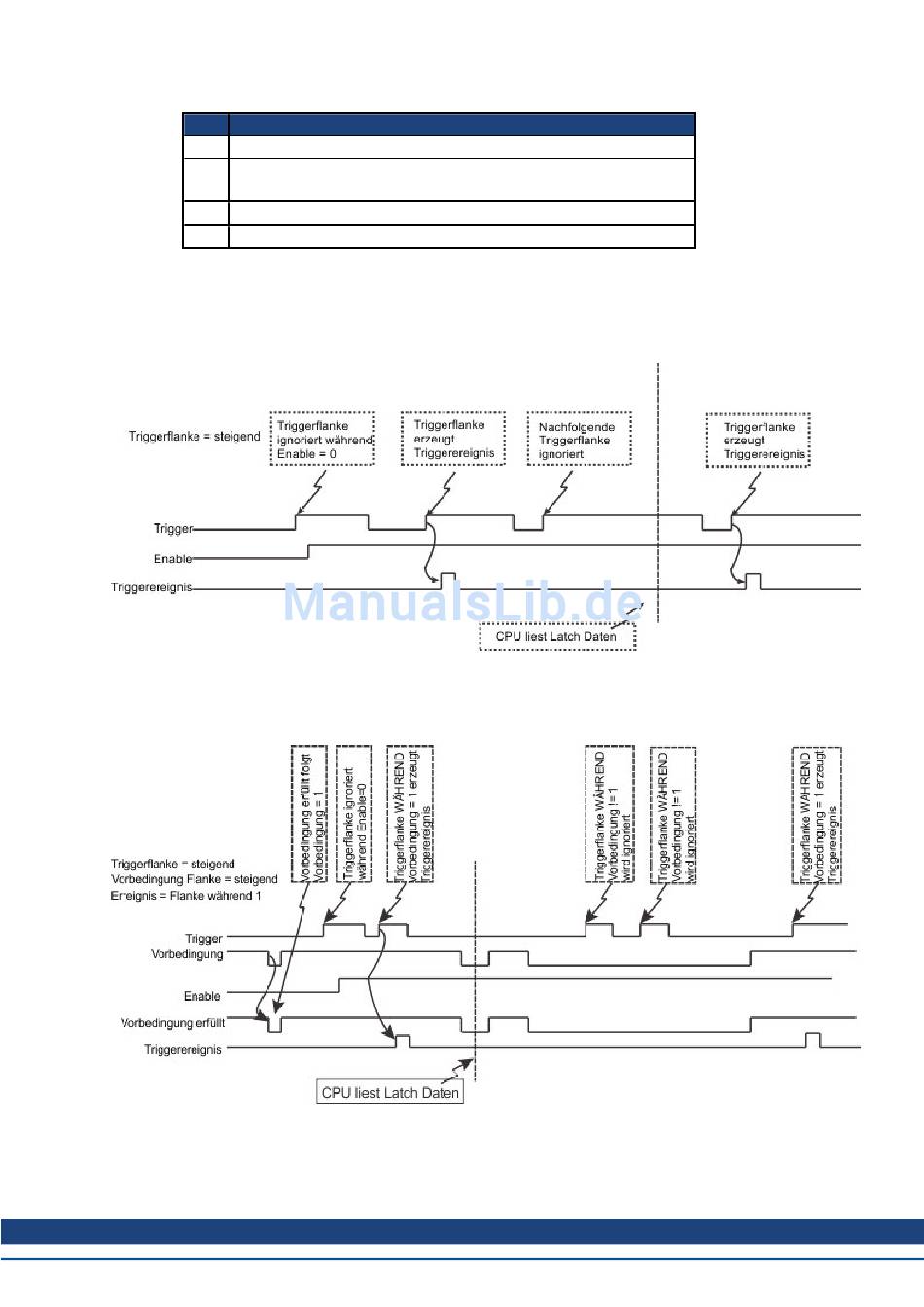

The following diagram shows an example of Event = 0 (trigger on edge, trigger edge = rising). In this
mode, the precondition logic is ignored.
Figure 1: Trigger Edge Mode
Events 2 and 3 (Trigger edge while precondition = 0 or 1)
In these events, the precondition logic samples the current (post-filter) state of the selected precondition
source input. The capture engine looks for a trigger edge while the precondition input is at a "1" or "0" state.
Figure 2: Trigger edge WHILE precondition edge
Event 1 (Trigger edge after precondition)
Precondition settings ignored.
Trigger on first trigger event after selected edge on precondition
input.
Trigger on first trigger event to occur while precondition input is 1
Trigger on first trigger event to occur while precondition input is 0.
Description
