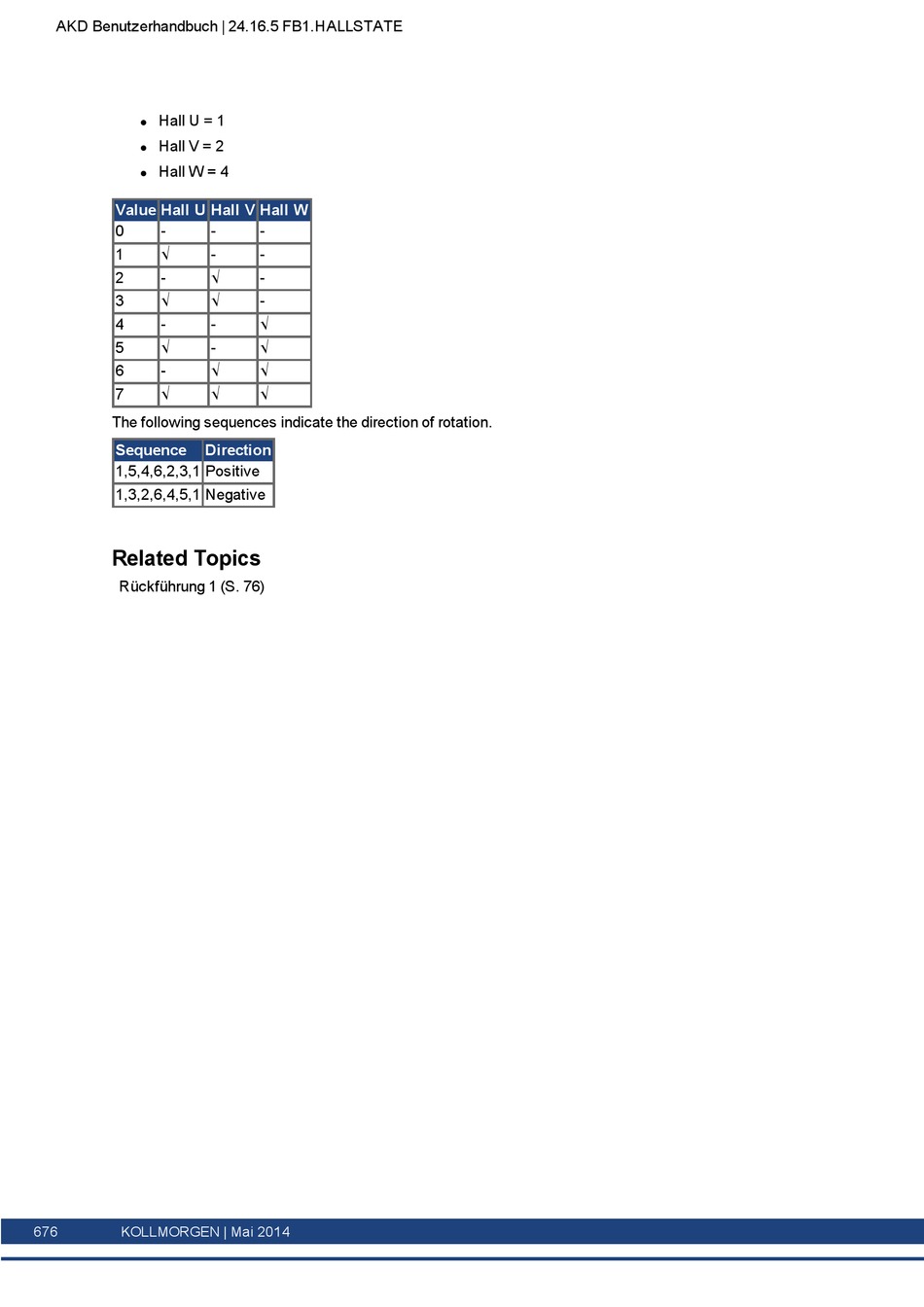

AKD Benutzerhandbuch | 24.16.5 FB1.HALLSTATE
Hall U = 1
l
Hall V = 2
l
Hall W = 4
l
Value Hall U Hall V Hall W
0 -
1 √
2 -
3 √
4 -
5 √
6 -
7 √
The following sequences indicate the direction of rotation.
Sequence Direction
1,5,4,6,2,3,1 Positive
1,3,2,6,4,5,1 Negative
Related Topics
Rückführung 1 (S. 76)
