AKD Benutzerhandbuch | 24.25.5 IP.SUBNET

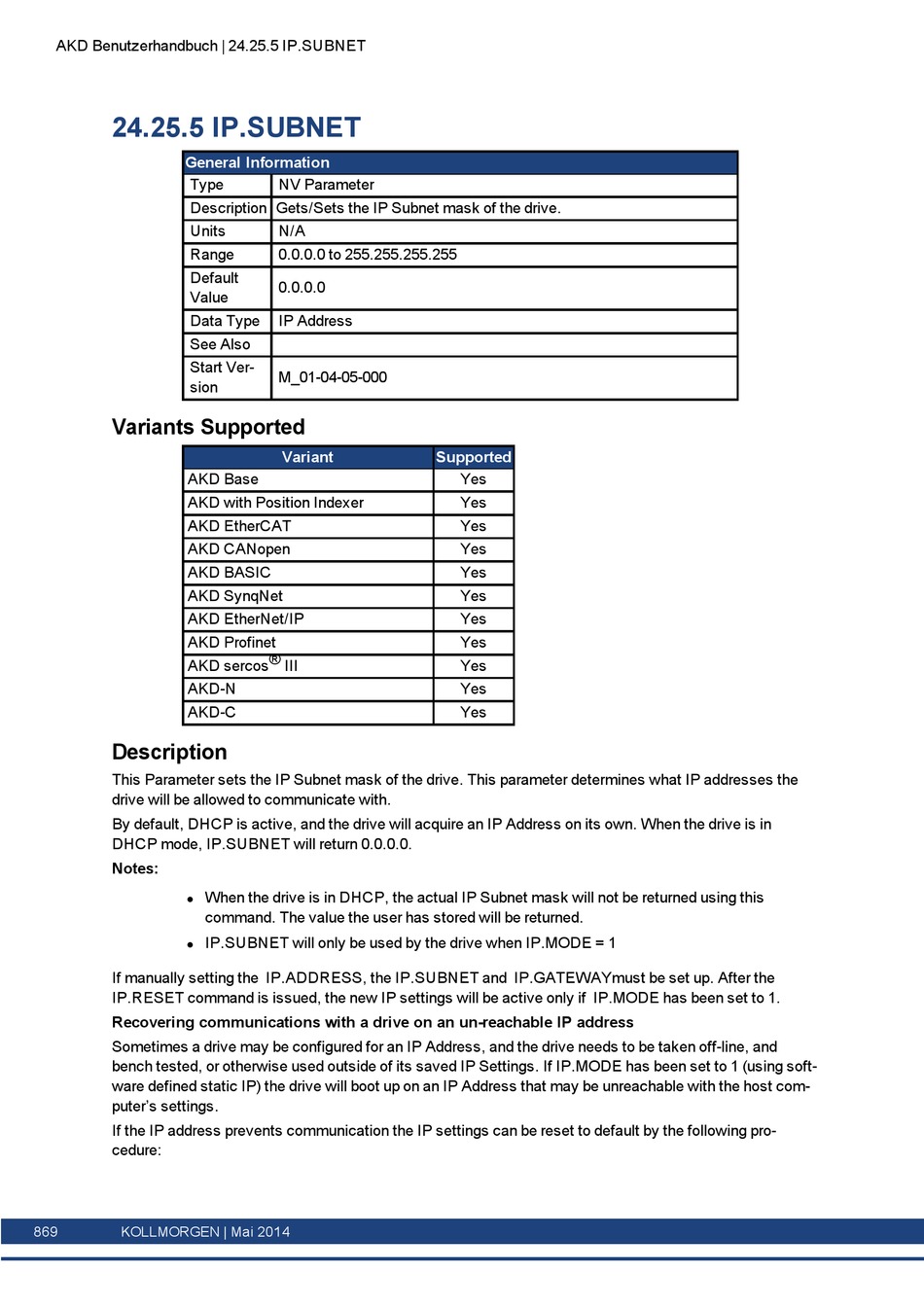

24.25.5 IP.SUBNET

General Information
Type
Description Gets/Sets the IP Subnet mask of the drive.
Units
Range
Default
Value
Data Type
See Also
Start Ver-
sion
Variants Supported
AKD Base
AKD with Position Indexer
AKD EtherCAT
AKD CANopen
AKD BASIC
AKD SynqNet
AKD EtherNet/IP
AKD Profinet
AKD sercos ® III
AKD-N
AKD-C
Description
This Parameter sets the IP Subnet mask of the drive. This parameter determines what IP addresses the
drive will be allowed to communicate with.
By default, DHCP is active, and the drive will acquire an IP Address on its own. When the drive is in
DHCP mode, IP.SUBNET will return 0.0.0.0.
Notes:
When the drive is in DHCP, the actual IP Subnet mask will not be returned using this
l
command. The value the user has stored will be returned.
IP.SUBNET will only be used by the drive when IP.MODE = 1
l
If manually setting the IP.ADDRESS, the IP.SUBNET and IP.GATEWAYmust be set up. After the
IP.RESET command is issued, the new IP settings will be active only if IP.MODE has been set to 1.
Recovering communications with a drive on an un-reachable IP address
Sometimes a drive may be configured for an IP Address, and the drive needs to be taken off-line, and
bench tested, or otherwise used outside of its saved IP Settings. If IP.MODE has been set to 1 (using soft-
ware defined static IP) the drive will boot up on an IP Address that may be unreachable with the host com-
puter's settings.
If the IP address prevents communication the IP settings can be reset to default by the following pro-
cedure:
869 KOLLMORGEN | Mai 2014
NV Parameter
N/A
0.0.0.0 to 255.255.255.255
0.0.0.0
IP Address
M_01-04-05-000
Variant Supported
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
