AKD Benutzerhandbuch | 24.43.6 UNIT.POUT

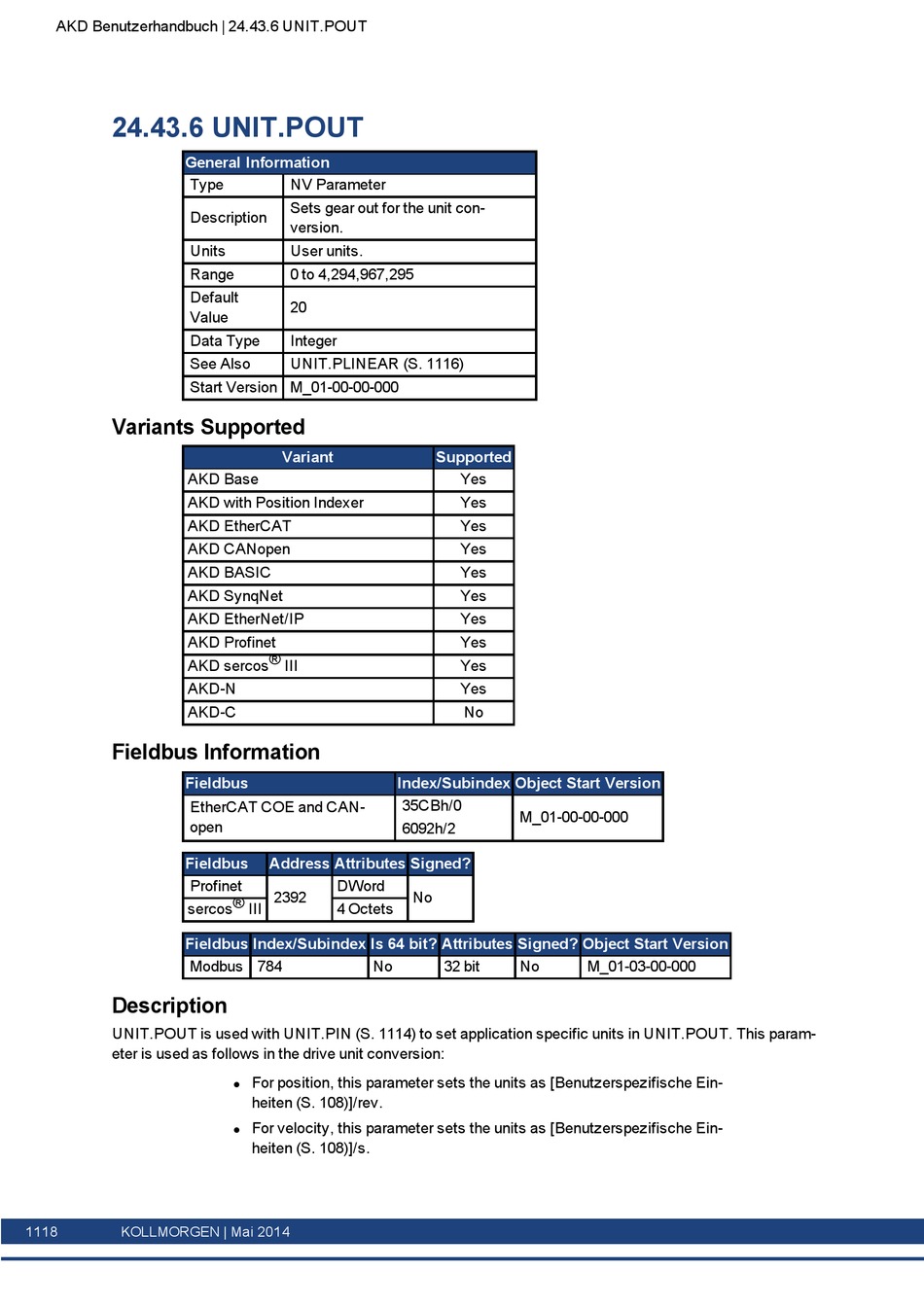

24.43.6 UNIT.POUT
General Information
Type
Description
Units
Range
Default
Value
Data Type
See Also
Start Version M_01-00-00-000
Variants Supported
AKD Base
AKD with Position Indexer
AKD EtherCAT
AKD CANopen
AKD BASIC
AKD SynqNet
AKD EtherNet/IP
AKD Profinet
AKD sercos ® III
AKD-N
AKD-C
Fieldbus Information
Fieldbus
EtherCAT COE and CAN-
open
Fieldbus
Profinet
sercos ® III
Fieldbus Index/Subindex Is 64 bit? Attributes Signed? Object Start Version
Modbus 784
Description
UNIT.POUT is used with UNIT.PIN (S. 1114) to set application specific units in UNIT.POUT. This param-
eter is used as follows in the drive unit conversion:
1118 KOLLMORGEN | Mai 2014
NV Parameter
Sets gear out for the unit con-
version.
User units.
0 to 4,294,967,295
20
Integer
UNIT.PLINEAR (S. 1116)
Variant
Index/Subindex Object Start Version
35CBh/0
6092h/2
Address Attributes Signed?
DWord
2392
4 Octets
No
For position, this parameter sets the units as [Benutzerspezifische Ein-
l
heiten (S. 108)]/rev.
For velocity, this parameter sets the units as [Benutzerspezifische Ein-
l
heiten (S. 108)]/s.
Supported
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
M_01-00-00-000
No
32 bit No M_01-03-00-000
