AKD Benutzerhandbuch | 24.46.28 VL.VFTHRESH

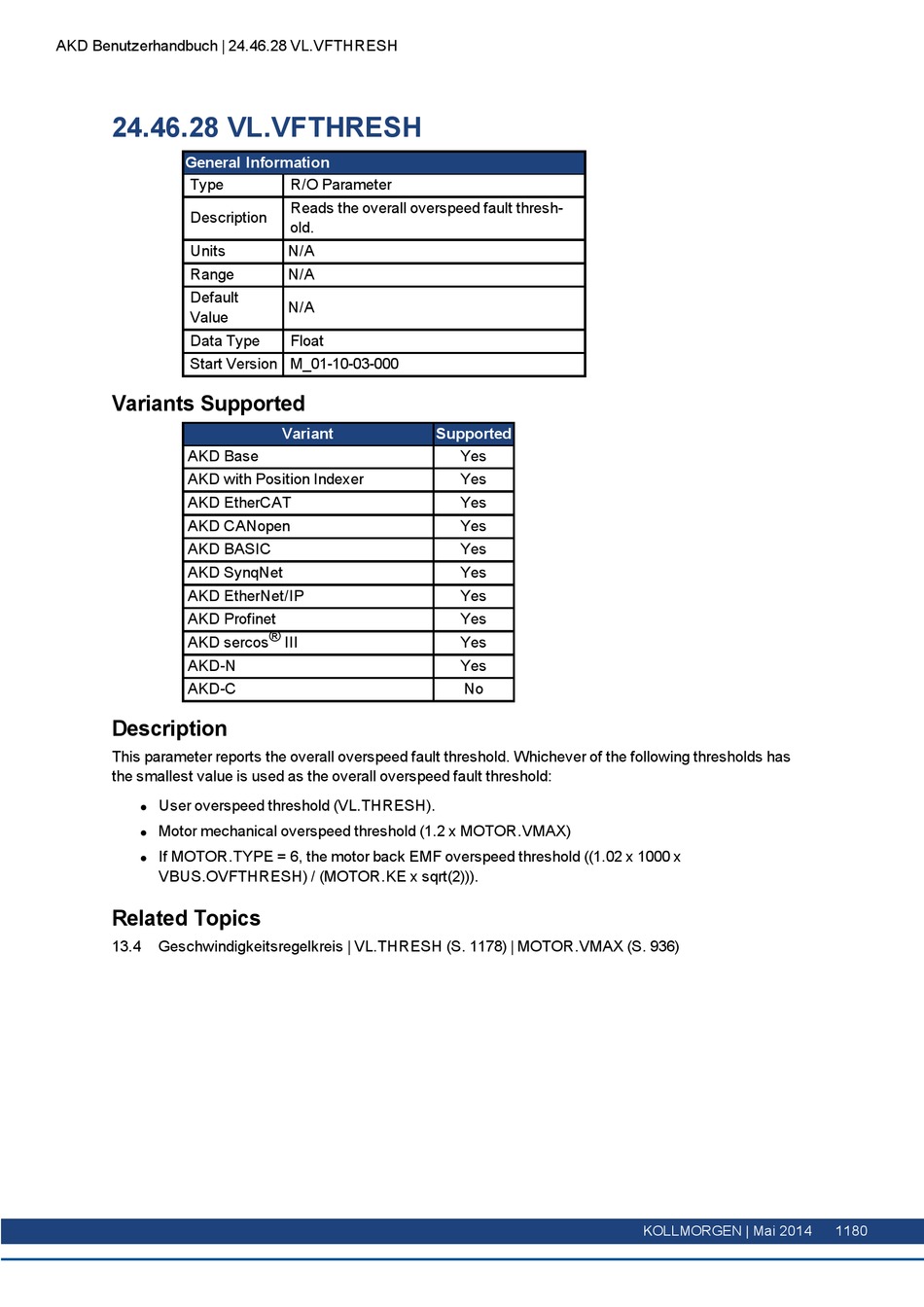

24.46.28 VL.VFTHRESH
General Information
Type
Description
Units
Range
Default
Value
Data Type
Start Version M_01-10-03-000
Variants Supported
AKD Base
AKD with Position Indexer
AKD EtherCAT
AKD CANopen
AKD BASIC
AKD SynqNet
AKD EtherNet/IP
AKD Profinet
AKD sercos ® III
AKD-N
AKD-C
Description
This parameter reports the overall overspeed fault threshold. Whichever of the following thresholds has
the smallest value is used as the overall overspeed fault threshold:
User overspeed threshold (VL.THRESH).
l
Motor mechanical overspeed threshold (1.2 x MOTOR.VMAX)
l
If MOTOR.TYPE = 6, the motor back EMF overspeed threshold ((1.02 x 1000 x
l
VBUS.OVFTHRESH) / (MOTOR.KE x sqrt(2))).
Related Topics
13.4 Geschwindigkeitsregelkreis | VL.THRESH (S. 1178) | MOTOR.VMAX (S. 936)
R/O Parameter
Reads the overall overspeed fault thresh-
old.
N/A
N/A
N/A
Float
Variant Supported
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
KOLLMORGEN | Mai 2014 1180
