AKD Benutzerhandbuch | 25.8.3 CAP0.EVENT, CAP1.EVENT

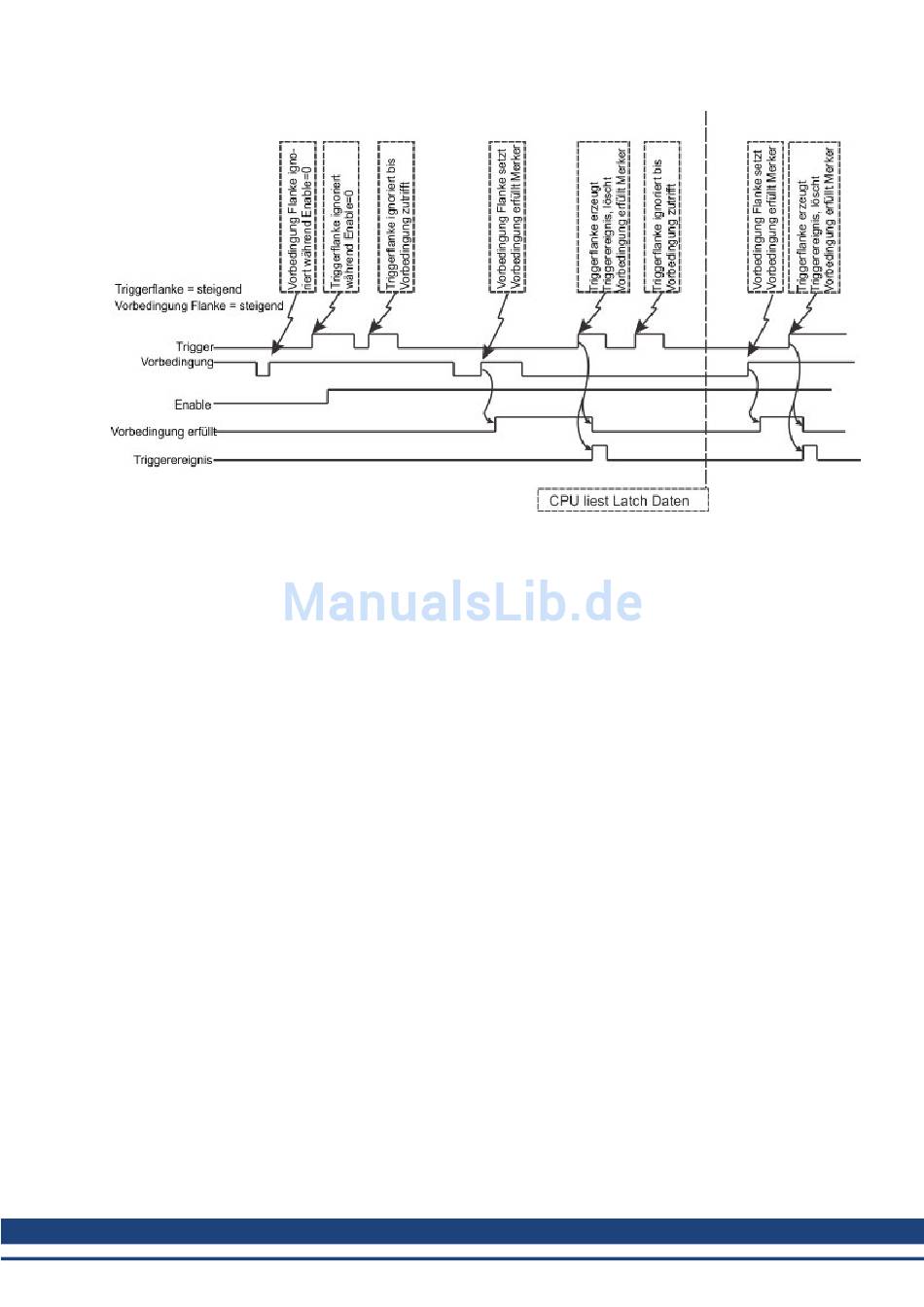

Figure 3: Trigger edge after precondition edge
Note: If the precondition and trigger edges occur at the same time, it is not a valid trigger event. A sub-
sequent trigger edge must occur after the precondition edge. The same time resolves to a single 40 ns
clock tick in the trigger event logic (after the optional filter function as well as any sensor, cable, or noise
delays).
Related Topics
Verwendung der Positionserfassung (s: 88)
