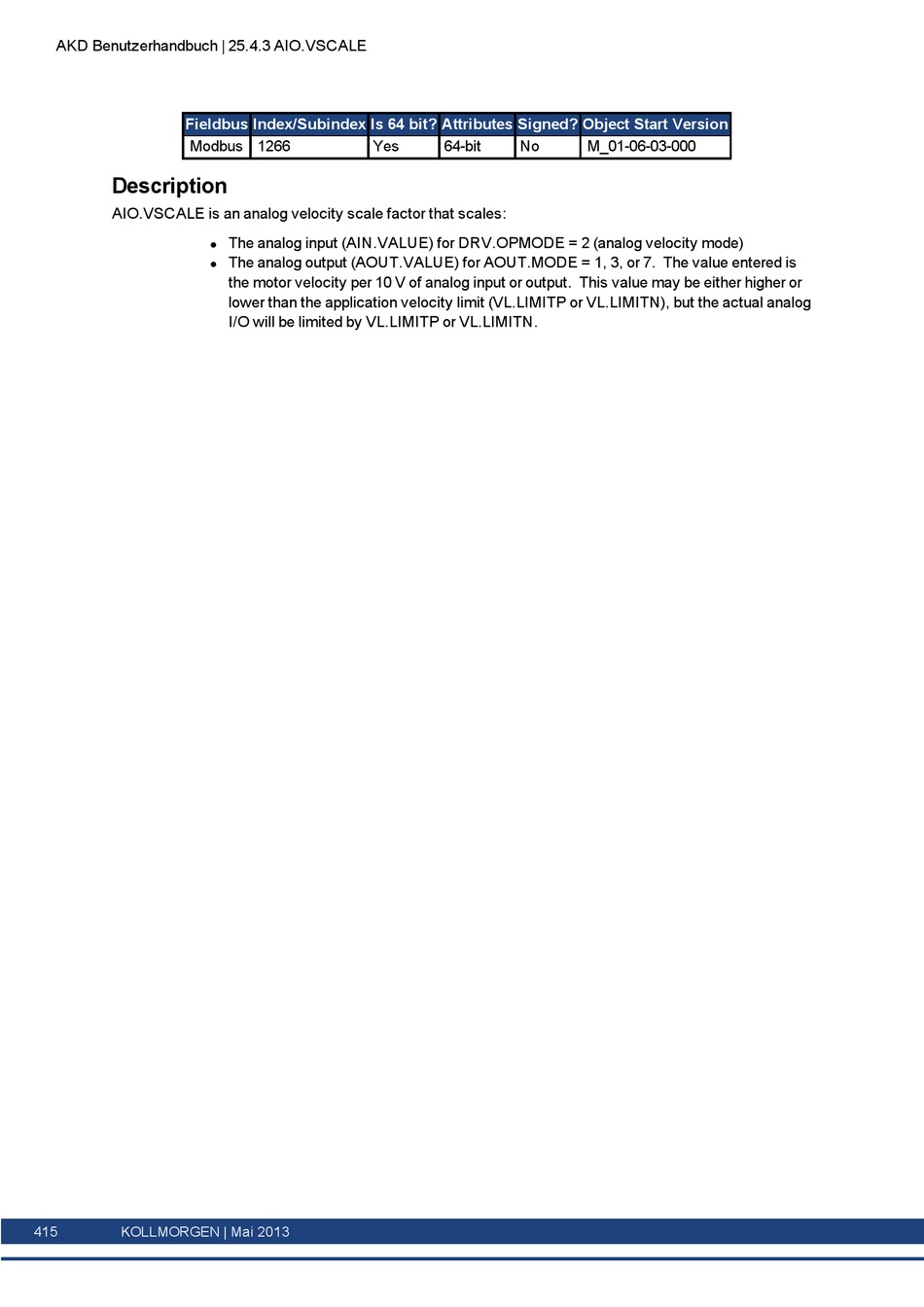

AKD Benutzerhandbuch | 25.4.3 AIO.VSCALE
Fieldbus Index/Subindex Is 64 bit? Attributes Signed? Object Start Version
Modbus 1266
Description
AIO.VSCALE is an analog velocity scale factor that scales:
415 KOLLMORGEN | Mai 2013
Yes
The analog input (AIN.VALUE) for DRV.OPMODE = 2 (analog velocity mode)
l
The analog output (AOUT.VALUE) for AOUT.MODE = 1, 3, or 7. The value entered is
l
the motor velocity per 10 V of analog input or output. This value may be either higher or
lower than the application velocity limit (VL.LIMITP or VL.LIMITN), but the actual analog
I/O will be limited by VL.LIMITP or VL.LIMITN.
64-bit No M_01-06-03-000
