AKD Benutzerhandbuch | 25.4.1 AIO.ISCALE

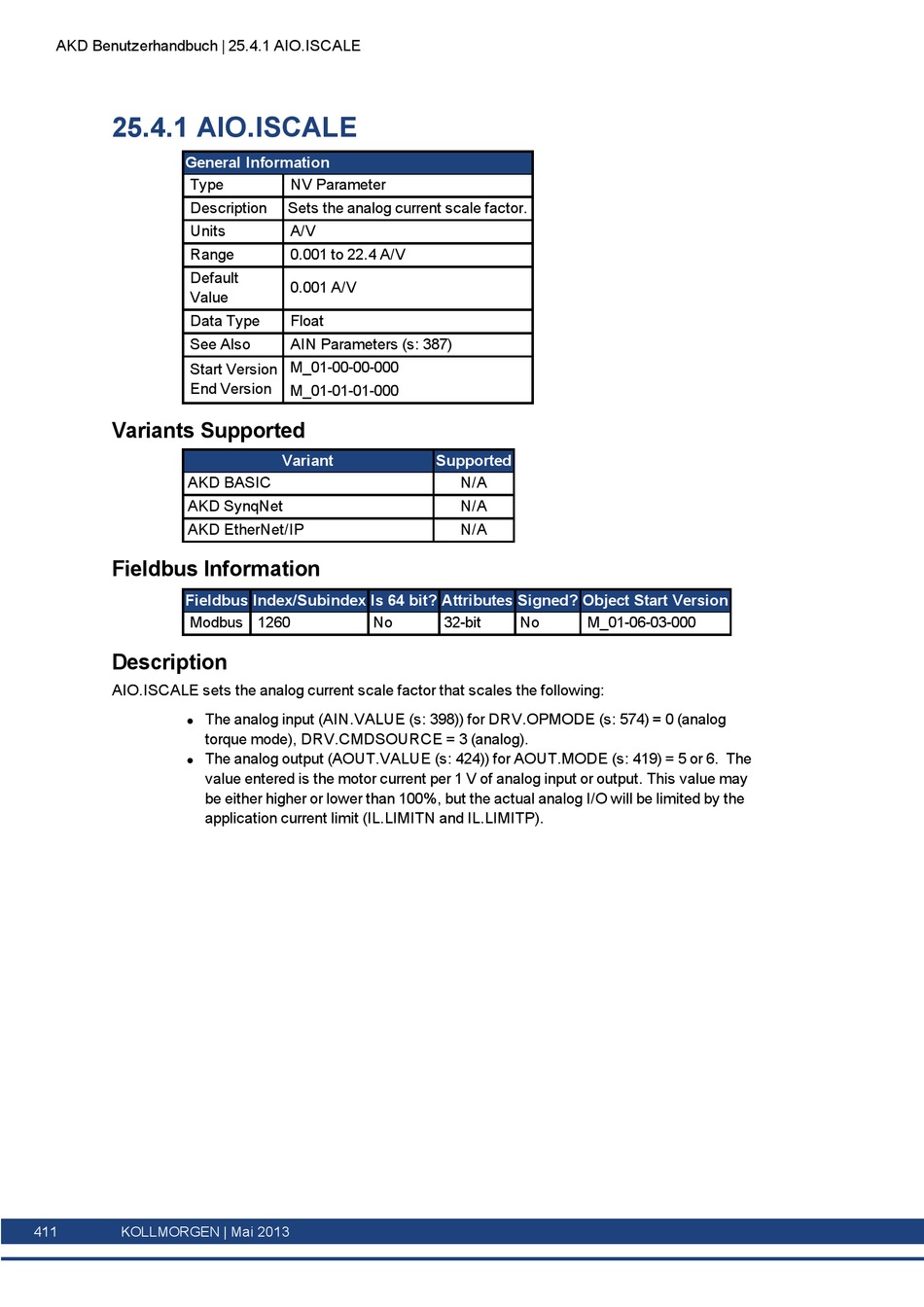

25.4.1 AIO.ISCALE

General Information
Type
Description
Units
Range
Default
Value
Data Type
See Also
Start Version
End Version
Variants Supported
AKD BASIC
AKD SynqNet
AKD EtherNet/IP
Fieldbus Information
Fieldbus Index/Subindex Is 64 bit? Attributes Signed? Object Start Version
Modbus 1260
Description
AIO.ISCALE sets the analog current scale factor that scales the following:
The analog input (AIN.VALUE (s: 398)) for DRV.OPMODE (s: 574) = 0 (analog
l
torque mode), DRV.CMDSOURCE = 3 (analog).
The analog output (AOUT.VALUE (s: 424)) for AOUT.MODE (s: 419) = 5 or 6. The
l
value entered is the motor current per 1 V of analog input or output. This value may
be either higher or lower than 100%, but the actual analog I/O will be limited by the
application current limit (IL.LIMITN and IL.LIMITP).
411 KOLLMORGEN | Mai 2013
NV Parameter
Sets the analog current scale factor.
A/V
0.001 to 22.4 A/V
0.001 A/V
Float
AIN Parameters (s: 387)
M_01-00-00-000
M_01-01-01-000
Variant Supported
No 32-bit
N/A
N/A
N/A
No M_01-06-03-000
