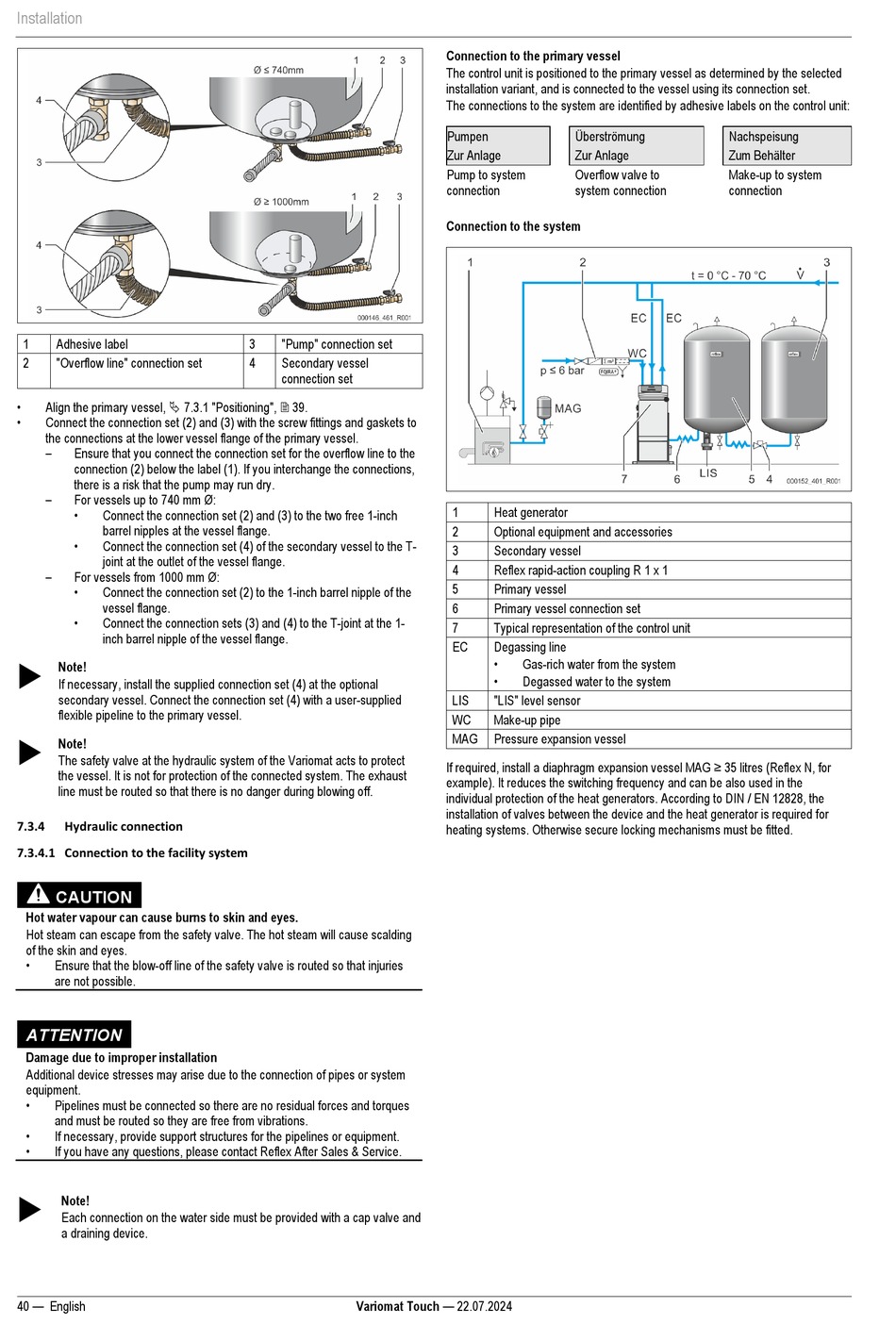

Installation
1 Adhesive label
2 "Overflow line" connection set
•
Align the primary vessel,  7.3.1 "Positioning",  39.
•
Connect the connection set (2) and (3) with the screw fittings and gaskets to
the connections at the lower vessel flange of the primary vessel.
–
Ensure that you connect the connection set for the overflow line to the
connection (2) below the label (1). If you interchange the connections,
there is a risk that the pump may run dry.
–
For vessels up to 740 mm Ø:
•
Connect the connection set (2) and (3) to the two free 1-inch
barrel nipples at the vessel flange.
•
Connect the connection set (4) of the secondary vessel to the T-
joint at the outlet of the vessel flange.
–
For vessels from 1000 mm Ø:
•
Connect the connection set (2) to the 1-inch barrel nipple of the
vessel flange.
•
Connect the connection sets (3) and (4) to the T-joint at the 1-
inch barrel nipple of the vessel flange.

Note!
If necessary, install the supplied connection set (4) at the optional
secondary vessel. Connect the connection set (4) with a user-supplied
flexible pipeline to the primary vessel.

Note!
The safety valve at the hydraulic system of the Variomat acts to protect
the vessel. It is not for protection of the connected system. The exhaust
line must be routed so that there is no danger during blowing off.
7.3.4 Hydraulic connection
7.3.4.1 Connection to the facility system
CAUTION
Hot water vapour can cause burns to skin and eyes.
Hot steam can escape from the safety valve. The hot steam will cause scalding
of the skin and eyes.
•
Ensure that the blow-off line of the safety valve is routed so that injuries
are not possible.
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
Pipelines must be connected so there are no residual forces and torques
and must be routed so they are free from vibrations.
•
If necessary, provide support structures for the pipelines or equipment.
•
If you have any questions, please contact Reflex After Sales & Service.

Note!
Each connection on the water side must be provided with a cap valve and
a draining device.
40 — English
3 "Pump" connection set
4 Secondary vessel
connection set
Variomat Touch — 22.07.2024
Connection to the primary vessel
The control unit is positioned to the primary vessel as determined by the selected
installation variant, and is connected to the vessel using its connection set.
The connections to the system are identified by adhesive labels on the control unit:
Pumpen Überströmung
Zur Anlage Zur Anlage
Pump to system Overflow valve to
connection system connection
Connection to the system
1 Heat generator
2 Optional equipment and accessories
3 Secondary vessel
4 Reflex rapid-action coupling R 1 x 1
5 Primary vessel
6 Primary vessel connection set
7 Typical representation of the control unit
EC Degassing line
•
Gas-rich water from the system
•
Degassed water to the system
LIS "LIS" level sensor
WC Make-up pipe
MAG Pressure expansion vessel
If required, install a diaphragm expansion vessel MAG ≥ 35 litres (Reflex N, for
example). It reduces the switching frequency and can be also used in the
individual protection of the heat generators. According to DIN / EN 12828, the
installation of valves between the device and the heat generator is required for
heating systems. Otherwise secure locking mechanisms must be fitted.
Nachspeisung
Zum Behälter
Make-up to system
connection
