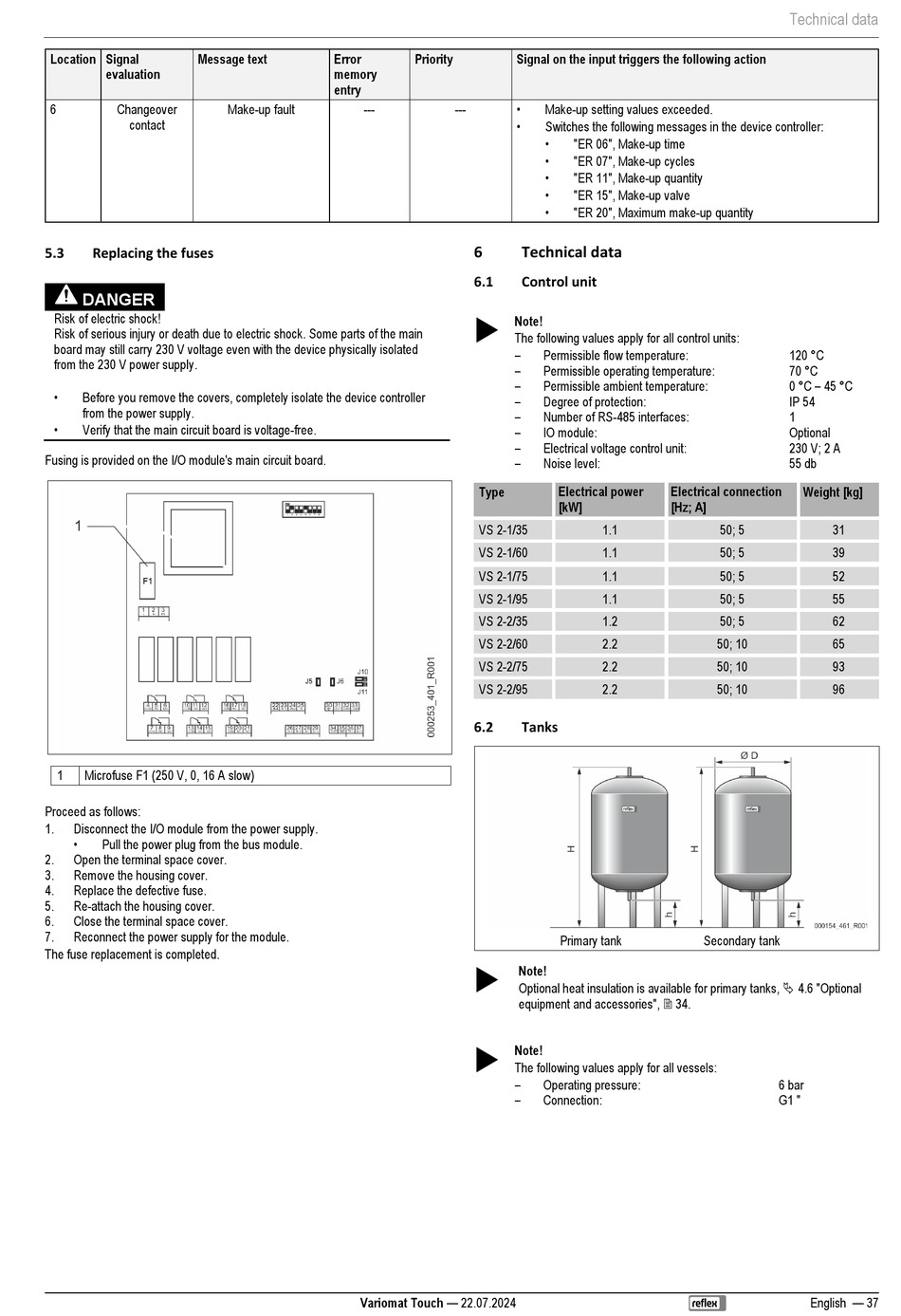

Reflex Variomat Touch VS 2-1/35 Originalbetriebsanleitung Seite 37

Location Signal Message text
evaluation
6 Changeover
contact
5.3 Replacing the fuses
DANGER
Risk of electric shock!
Risk of serious injury or death due to electric shock. Some parts of the main
board may still carry 230 V voltage even with the device physically isolated
from the 230 V power supply.
•
Before you remove the covers, completely isolate the device controller
from the power supply.
•
Verify that the main circuit board is voltage-free.
Fusing is provided on the I/O module's main circuit board.
1 Microfuse F1 (250 V, 0, 16 A slow)
Proceed as follows:
1. Disconnect the I/O module from the power supply.
•
Pull the power plug from the bus module.
2. Open the terminal space cover.
3. Remove the housing cover.
4. Replace the defective fuse.
5. Re-attach the housing cover.
6. Close the terminal space cover.
7. Reconnect the power supply for the module.
The fuse replacement is completed.
Error
memory
entry
Make-up fault ---
Variomat Touch — 22.07.2024
Priority Signal on the input triggers the following action
•
--- Make-up setting values exceeded.
•
Switches the following messages in the device controller:
•
"ER 06", Make-up time
•
"ER 07", Make-up cycles
•
"ER 11", Make-up quantity
•
"ER 15", Make-up valve
•
"ER 20", Maximum make-up quantity
6 Technical data
6.1 Control unit

Note!
The following values apply for all control units:
–
Permissible flow temperature:
–
Permissible operating temperature:
–
Permissible ambient temperature:
–
Degree of protection:
–
Number of RS-485 interfaces:
–
IO module:
–
Electrical voltage control unit:
–
Noise level:
Electrical power
Type
[kW]
VS 2-1/35
VS 2-1/60
VS 2-1/75
VS 2-1/95
VS 2-2/35
VS 2-2/60
VS 2-2/75
VS 2-2/95
6.2 Tanks
Primary tank

Note!
Optional heat insulation is available for primary tanks,  4.6 "Optional
equipment and accessories",  34.

Note!
The following values apply for all vessels:
–
Operating pressure:
–
Connection:
Electrical connection
[Hz; A]
1.1 50; 5
1.1 50; 5
1.1 50; 5
1.1 50; 5
1.2 50; 5
2.2 50; 10
2.2 50; 10
2.2 50; 10
Secondary tank
Technical data
120 °C
70 °C
0 °C – 45 °C
IP 54
1
Optional
230 V; 2 A
55 db
Weight [kg]
31
39
52
55
62
65
93
96
6 bar
G1 "
