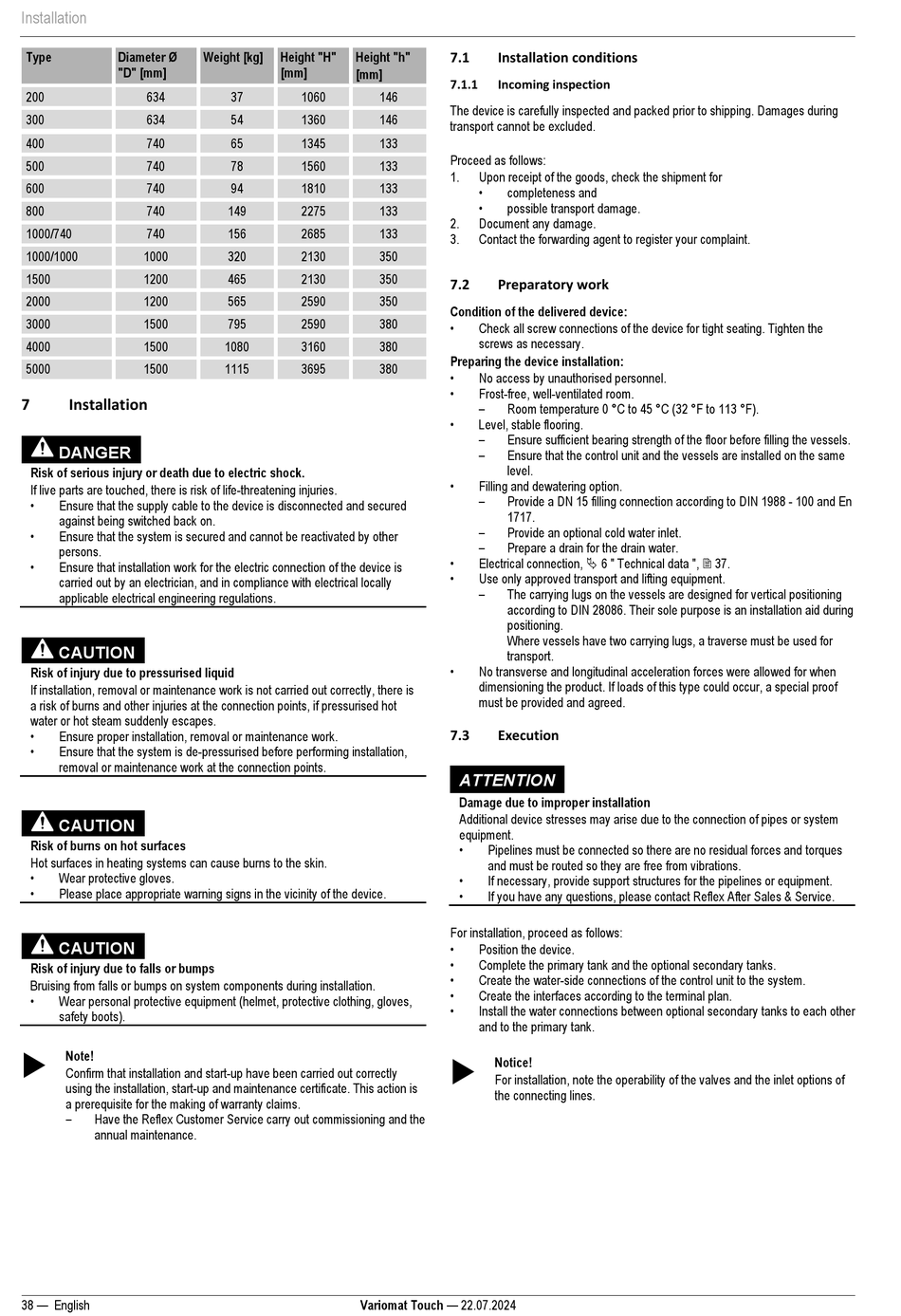

Installation
Type Diameter Ø
"D" [mm]
200 634
300 634
400 740
500 740
600 740
800 740
1000/740 740
1000/1000 1000
1500 1200
2000 1200
3000 1500
4000 1500
5000 1500
7 Installation
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the supply cable to the device is disconnected and secured
against being switched back on.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical locally
applicable electrical engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there is
a risk of burns and other injuries at the connection points, if pressurised hot
water or hot steam suddenly escapes.
•
Ensure proper installation, removal or maintenance work.
•
Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to falls or bumps
Bruising from falls or bumps on system components during installation.
•
Wear personal protective equipment (helmet, protective clothing, gloves,
safety boots).

Note!
Confirm that installation and start-up have been carried out correctly
using the installation, start-up and maintenance certificate. This action is
a prerequisite for the making of warranty claims.
–
Have the Reflex Customer Service carry out commissioning and the
annual maintenance.
38 — English
Weight [kg] Height "H" Height "h"
[mm]
[mm]
37 1060
54 1360
65 1345
78 1560
94 1810
149 2275
156 2685
320 2130
465 2130
565 2590
795 2590
1080 3160
1115 3695
Variomat Touch — 22.07.2024
7.1 Installation conditions
7.1.1 Incoming inspection
146
The device is carefully inspected and packed prior to shipping. Damages during
146
transport cannot be excluded.
133
Proceed as follows:
133
1. Upon receipt of the goods, check the shipment for
133 •
completeness and
•
possible transport damage.
133
2. Document any damage.
133
3. Contact the forwarding agent to register your complaint.
350
350
7.2 Preparatory work
350
Condition of the delivered device:
380 •
Check all screw connections of the device for tight seating. Tighten the
screws as necessary.
380
Preparing the device installation:
380
•
No access by unauthorised personnel.
•
Frost-free, well-ventilated room.
–
Room temperature 0 °C to 45 °C (32 °F to 113 °F).
•
Level, stable flooring.
–
Ensure sufficient bearing strength of the floor before filling the vessels.
–
Ensure that the control unit and the vessels are installed on the same
level.
•
Filling and dewatering option.
–
Provide a DN 15 filling connection according to DIN 1988 - 100 and En
1717.
–
Provide an optional cold water inlet.
–
Prepare a drain for the drain water.
•
Electrical connection,  6 " Technical data ",  37.
•
Use only approved transport and lifting equipment.
–
The carrying lugs on the vessels are designed for vertical positioning
according to DIN 28086. Their sole purpose is an installation aid during
positioning.
Where vessels have two carrying lugs, a traverse must be used for
transport.
•
No transverse and longitudinal acceleration forces were allowed for when
dimensioning the product. If loads of this type could occur, a special proof
must be provided and agreed.
7.3 Execution
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
Pipelines must be connected so there are no residual forces and torques
and must be routed so they are free from vibrations.
•
If necessary, provide support structures for the pipelines or equipment.
•
If you have any questions, please contact Reflex After Sales & Service.
For installation, proceed as follows:
•
Position the device.
•
Complete the primary tank and the optional secondary tanks.
•
Create the water-side connections of the control unit to the system.
•
Create the interfaces according to the terminal plan.
•
Install the water connections between optional secondary tanks to each other
and to the primary tank.

Notice!
For installation, note the operability of the valves and the inlet options of
the connecting lines.
