8.7.31 Digital outputs (4.3.9)

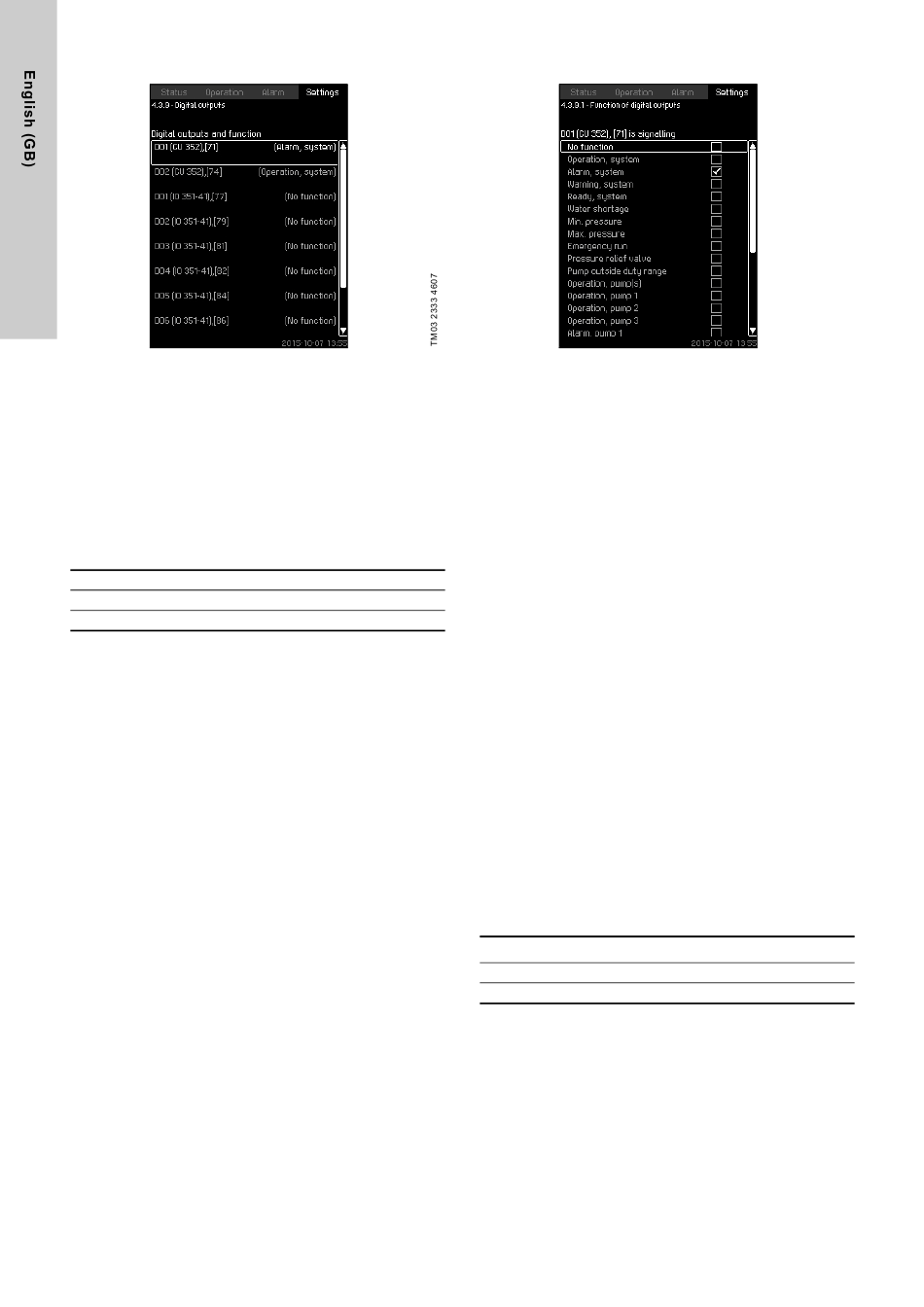

Fig. 77 Digital outputs
Description
Each digital output can be activated and related to a certain
function.
As standard, the system has two digital outputs.
If the system incorporates an IO 351B module (option), the
number of digital outputs is 9.
All digital outputs are shown so that their physical position in the
system can be identified.
Example
DO1 (IO 351-41) [71]:
DO1 Digital output No 1
(IO 351-41) IO 351B, GENIbus number 41
[71] Terminal No 71
For further information on the connection of various digital
outputs, see the wiring diagram supplied with the CU 352.
46
8.7.32 Function of digital outputs (4.3.9.1 - 4.3.9.16)
Fig. 78 Function of digital outputs
Description
A function can be related to the individual outputs.
Setting range
It is possible to select one function in each display:
• No function
• Operation, system
• Alarm, system
• Warning, system
• Ready, system
• Water shortage
• Min. pressure
• Max. pressure
• Emergency run
• Operation, pilot pump
• Operation, backup pump
• Pressure relief valve
• Pump outside duty range
• Operation, pump(s)
• Operation, pump 1 - 6
• Alarm, pump 1
• Alarm, limit 1 exceeded
• Warning, limit 1 exceeded
• Alarm, limit 2 exceeded
• Warning, limit 2 exceeded
• Reduced operation.
Setting via control panel
• Settings > Secondary functions > Stop function > Digital
outputs.
Factory setting
Digital output Function
DO1 (CU 352) [71] Alarm, system
DO2 (CU 352) [74] Operation, system
