Setting via control panel
• Settings > Primary controller > Primary sensor > Go to setting
of analog input.
Display Analog inputs (4.3.8) appears.
1. Select analog input (AI) for the primary sensor and set the
parameters.
2. .
3. Select control parameter for the primary sensor.
Factory setting
The primary parameter is discharge pressure. The sensor is
connected to AI1 (CU 352). Other primary parameters can be
selected in the start-up wizard.
8.7.8 Clock program (4.1.6)

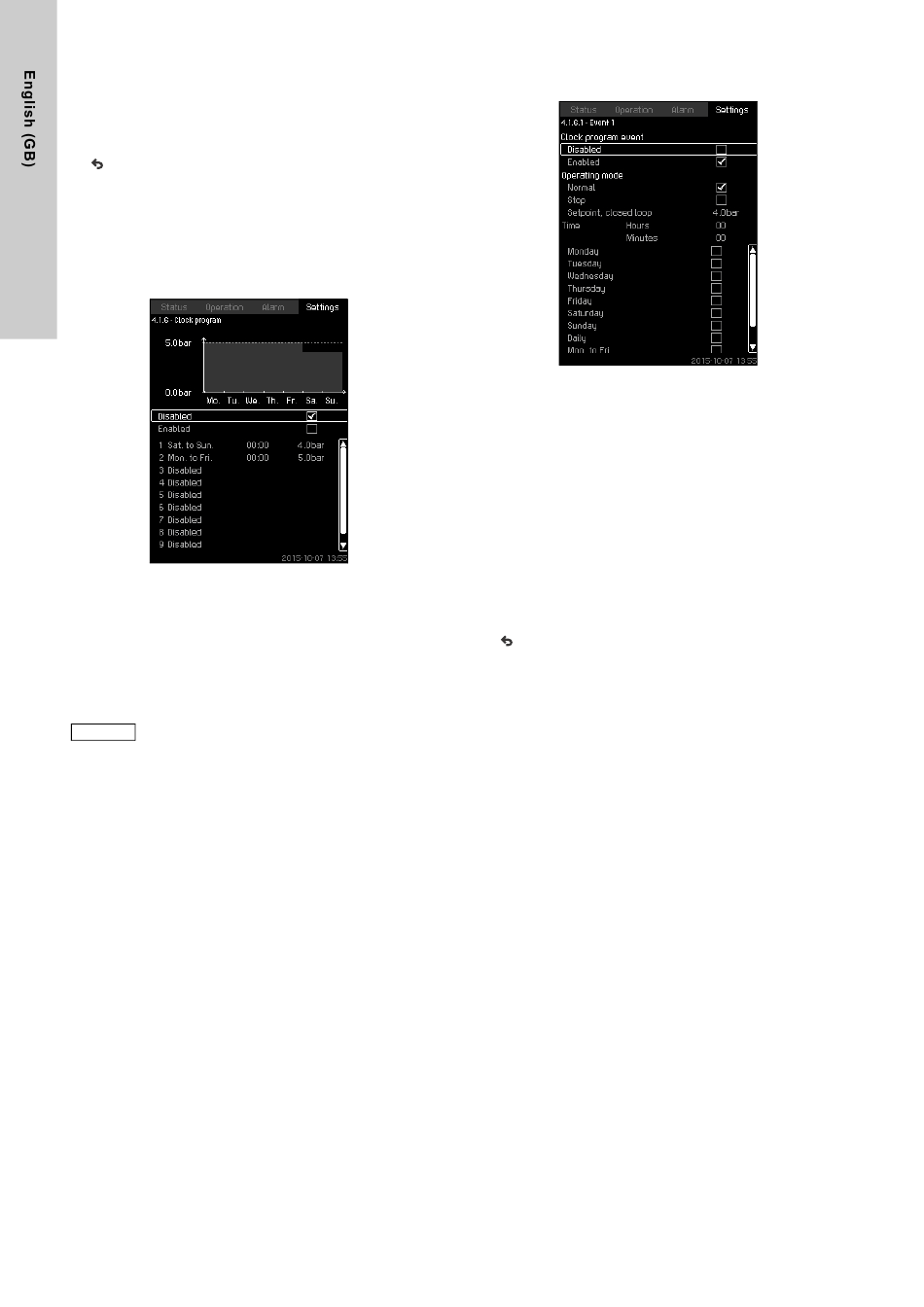

Fig. 45 Clock program
Description
With this function, it is possible to set setpoints and day and time
for their activation. It is also possible to set day and time for stop
of the system.
If the clock program is disabled, the setpoint of the program will
remain active.
Minimum two events are required when activating the
Note clock program; one to start the system and one to
stop the system.
34
Setting range
• Activation and setting of event.
Fig. 46 Event 1
Setting via control panel
• Settings > Primary controller > Clock program.
1. Enable the function.
2. Select and enable one of the ten events.
3. Select: Normal / Stop.
(Skip step 4 if you select "Stop".)
4. Set: Setpoint, closed loop.
5. Set: Time, Hours, Minutes.
6. Select the day of week on which the settings are to be
activated.
7. Select: Enabled.
8. Repeat steps 2 to 7 if several events are to be enabled.
Note: Up to ten events can be set.
9. .
10. Select: Enabled.
Factory setting
The function is disabled.
