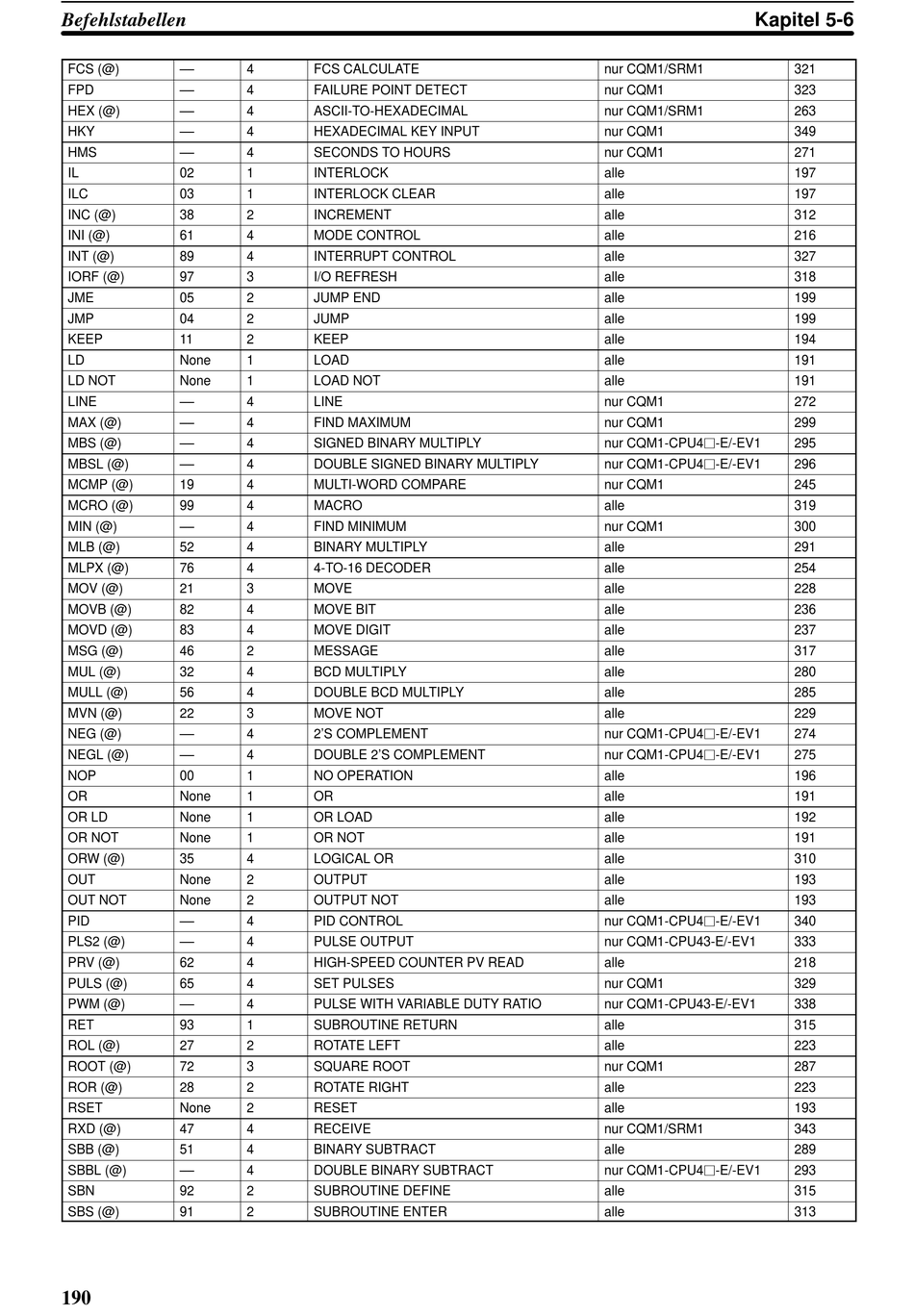

Omron SYSMAC CQM1 Bedienerhandbuch Seite 200

Befehlstabellen
FCS (@) ––
FPD ––
HEX (@) ––
HKY ––
HMS ––
IL 02
ILC 03
INC (@) 38
INI (@) 61
INT (@) 89
IORF (@) 97
JME 05
JMP 04
KEEP 11
LD None
LD NOT None
LINE ––
MAX (@) ––
MBS (@) ––
MBSL (@) ––
MCMP (@) 19
MCRO (@) 99
MIN (@) ––
MLB (@) 52
MLPX (@) 76
MOV (@) 21
MOVB (@) 82
MOVD (@) 83
MSG (@) 46
MUL (@) 32
MULL (@) 56
MVN (@) 22
NEG (@) ––
NEGL (@) ––
NOP 00
OR None
OR LD None
OR NOT None
ORW (@) 35
OUT None
OUT NOT None
PID ––
PLS2 (@) ––
PRV (@) 62
PULS (@) 65
PWM (@) ––
RET 93
ROL (@) 27
ROOT (@) 72
ROR (@) 28
RSET None
RXD (@) 47
SBB (@) 51
SBBL (@) ––
SBN 92
SBS (@) 91
190
4 FCS CALCULATE
4 FAILURE POINT DETECT
4 ASCII-TO-HEXADECIMAL
4 HEXADECIMAL KEY INPUT
4 SECONDS TO HOURS
1 INTERLOCK
1 INTERLOCK CLEAR
2 INCREMENT
4 MODE CONTROL
4 INTERRUPT CONTROL
3 I/O REFRESH
2 JUMP END
2 JUMP
2 KEEP
1 LOAD
1 LOAD NOT
4 LINE
4 FIND MAXIMUM
4 SIGNED BINARY MULTIPLY
4 DOUBLE SIGNED BINARY MULTIPLY
4 MULTI-WORD COMPARE
4 MACRO
4 FIND MINIMUM
4 BINARY MULTIPLY
4 4-TO-16 DECODER
3 MOVE
4 MOVE BIT
4 MOVE DIGIT
2 MESSAGE
4 BCD MULTIPLY
4 DOUBLE BCD MULTIPLY
3 MOVE NOT
4 2'S COMPLEMENT
4 DOUBLE 2'S COMPLEMENT
1 NO OPERATION
1 OR
1 OR LOAD
1 OR NOT
4 LOGICAL OR
2 OUTPUT
2 OUTPUT NOT
4 PID CONTROL
4 PULSE OUTPUT
4 HIGH-SPEED COUNTER PV READ
4 SET PULSES
4 PULSE WITH VARIABLE DUTY RATIO
1 SUBROUTINE RETURN
2 ROTATE LEFT
3 SQUARE ROOT
2 ROTATE RIGHT
2 RESET
4 RECEIVE
4 BINARY SUBTRACT
4 DOUBLE BINARY SUBTRACT
2 SUBROUTINE DEFINE
2 SUBROUTINE ENTER
Kapitel 5-6
nur CQM1/SRM1
nur CQM1
nur CQM1/SRM1
nur CQM1
nur CQM1
alle
alle
alle
alle
alle
alle
alle
alle
alle
alle
alle
nur CQM1
nur CQM1
nur CQM1-CPU4j-E/-EV1
nur CQM1-CPU4j-E/-EV1
nur CQM1
alle
nur CQM1
alle
alle
alle
alle
alle
alle
alle
alle
alle
nur CQM1-CPU4j-E/-EV1
nur CQM1-CPU4j-E/-EV1
alle
alle
alle
alle
alle
alle
alle
nur CQM1-CPU4j-E/-EV1
nur CQM1-CPU43-E/-EV1
alle
nur CQM1
nur CQM1-CPU43-E/-EV1
alle
alle
nur CQM1
alle
alle
nur CQM1/SRM1
alle
nur CQM1-CPU4j-E/-EV1
alle
alle
321
323
263
349
271
197
197
312
216
327
318
199
199
194
191
191
272
299
295
296
245
319
300
291
254
228
236
237
317
280
285
229
274
275
196
191
192
191
310
193
193
340
333
218
329
338
315
223
287
223
193
343
289
293
315
313
