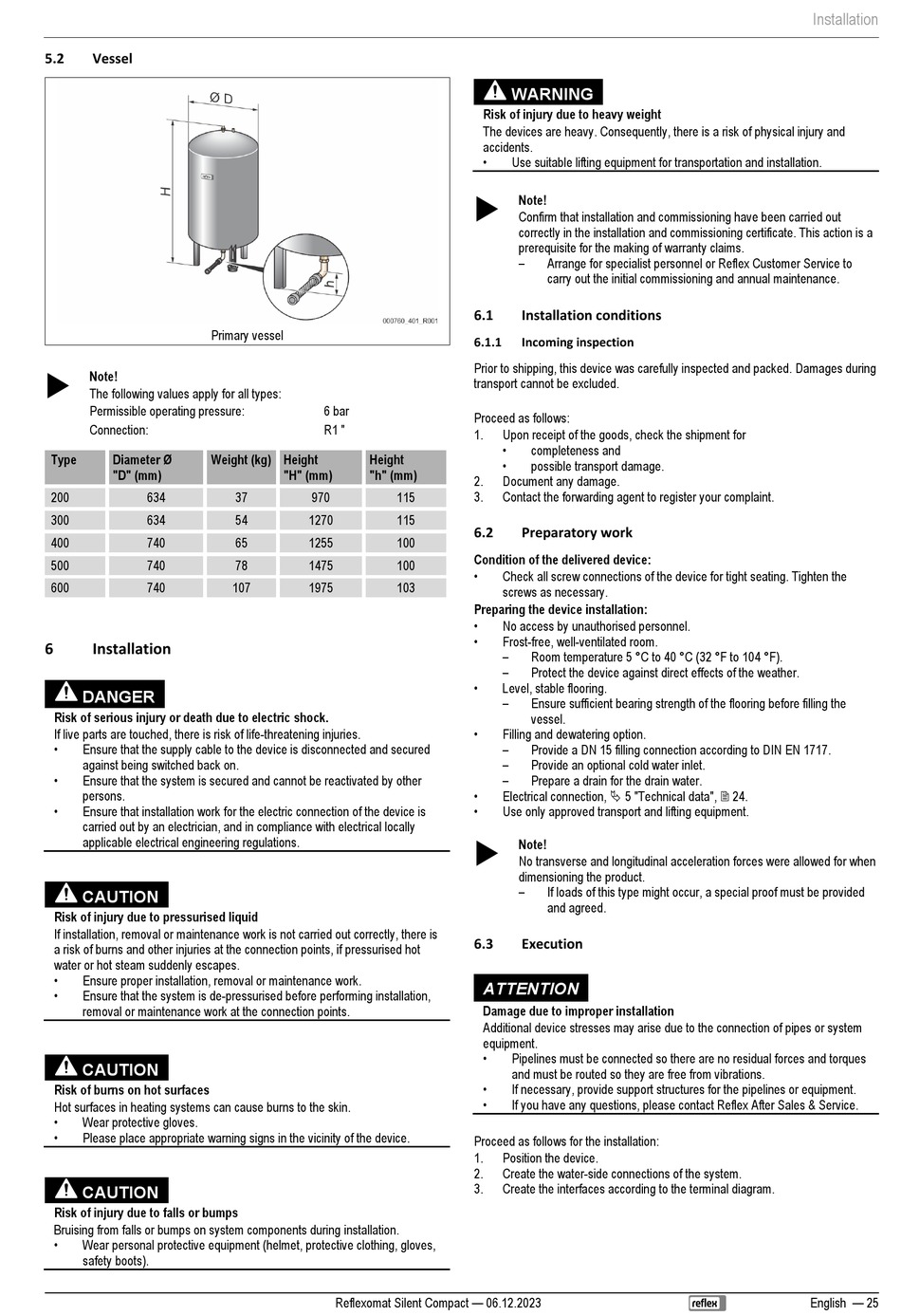

5.2
Vessel
Primary vessel
Note!
The following values apply for all types:
Permissible operating pressure:
Connection:
Type
Diameter Ø
Weight (kg) Height
"D" (mm)
200
634
300
634
400
740
500
740
600
740
6
Installation
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the supply cable to the device is disconnected and secured
against being switched back on.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical locally
applicable electrical engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there is
a risk of burns and other injuries at the connection points, if pressurised hot
water or hot steam suddenly escapes.
•
Ensure proper installation, removal or maintenance work.
•
Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
•
Wear protective gloves.
•
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to falls or bumps
Bruising from falls or bumps on system components during installation.
•
Wear personal protective equipment (helmet, protective clothing, gloves,
safety boots).
6 bar
R1 "
Height
"H" (mm)
"h" (mm)
37
970
115
54
1270
115
65
1255
100
78
1475
100
107
1975
103
Reflexomat Silent Compact — 06.12.2023
WARNING
Risk of injury due to heavy weight
The devices are heavy. Consequently, there is a risk of physical injury and
accidents.
•
Use suitable lifting equipment for transportation and installation.
Note!
Confirm that installation and commissioning have been carried out
correctly in the installation and commissioning certificate. This action is a
prerequisite for the making of warranty claims.
–
Arrange for specialist personnel or Reflex Customer Service to
carry out the initial commissioning and annual maintenance.
6.1
Installation conditions
6.1.1
Incoming inspection
Prior to shipping, this device was carefully inspected and packed. Damages during
transport cannot be excluded.
Proceed as follows:
1.
Upon receipt of the goods, check the shipment for
•
completeness and
•
possible transport damage.
2.
Document any damage.
3.
Contact the forwarding agent to register your complaint.
6.2
Preparatory work
Condition of the delivered device:
•
Check all screw connections of the device for tight seating. Tighten the
screws as necessary.
Preparing the device installation:
•
No access by unauthorised personnel.
•
Frost-free, well-ventilated room.
–
Room temperature 5 °C to 40 °C (32 °F to 104 °F).
–
Protect the device against direct effects of the weather.
•
Level, stable flooring.
–
Ensure sufficient bearing strength of the flooring before filling the
vessel.
•
Filling and dewatering option.
–
Provide a DN 15 filling connection according to DIN EN 1717.
–
Provide an optional cold water inlet.
–
Prepare a drain for the drain water.
•
Electrical connection, 5 "Technical data", 24.
•
Use only approved transport and lifting equipment.
Note!
No transverse and longitudinal acceleration forces were allowed for when
dimensioning the product.
–
If loads of this type might occur, a special proof must be provided
and agreed.
6.3
Execution
ATTENTION
Damage due to improper installation
Additional device stresses may arise due to the connection of pipes or system
equipment.
•
Pipelines must be connected so there are no residual forces and torques
and must be routed so they are free from vibrations.
•
If necessary, provide support structures for the pipelines or equipment.
•
If you have any questions, please contact Reflex After Sales & Service.
Proceed as follows for the installation:
1.
Position the device.
2.
Create the water-side connections of the system.
3.
Create the interfaces according to the terminal diagram.
Installation
English — 25
