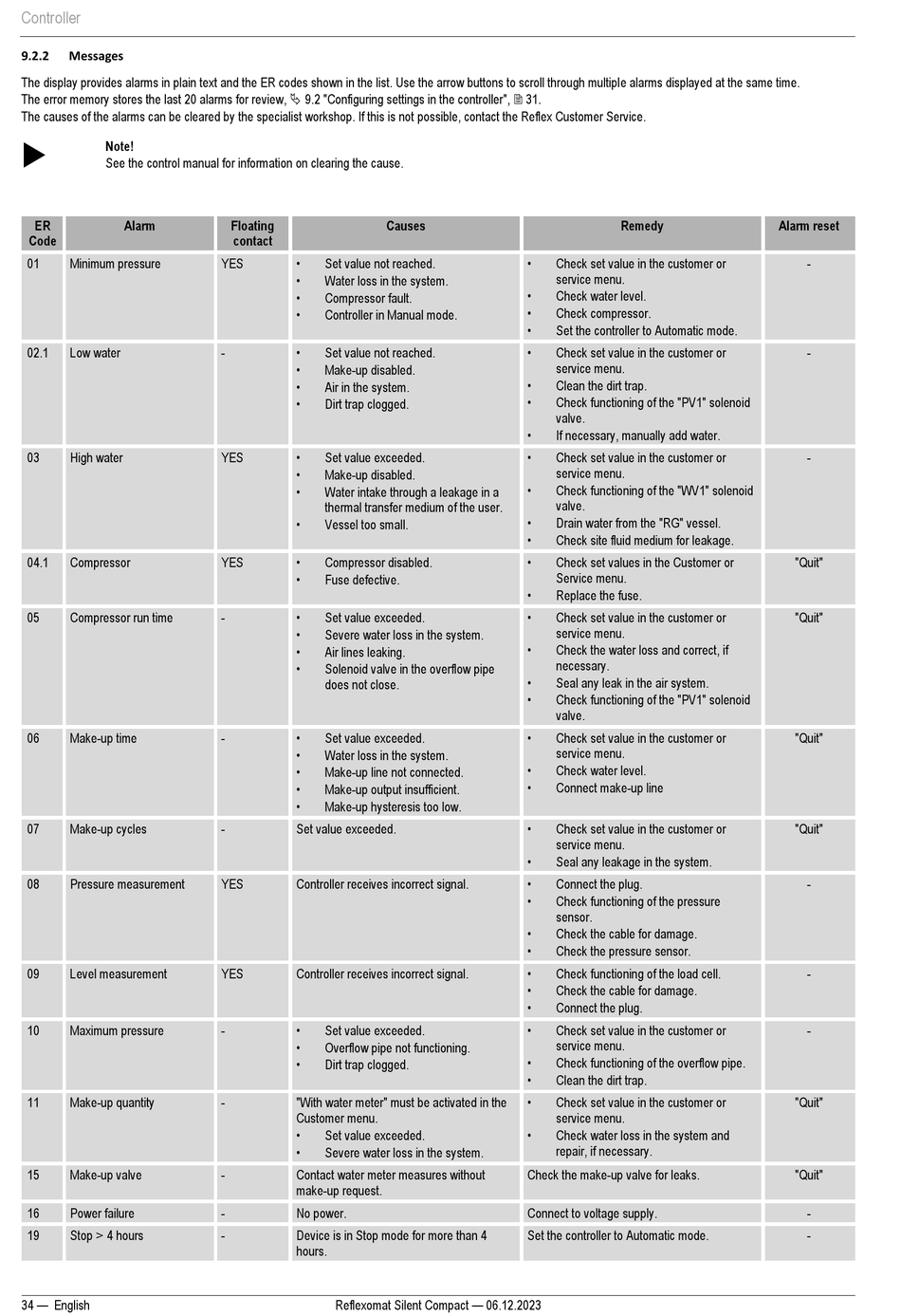

9.2.2 Messages
The display provides alarms in plain text and the ER codes shown in the list. Use the arrow buttons to scroll through multiple alarms displayed at the same time.
The error memory stores the last 20 alarms for review,  9.2 "Configuring settings in the controller",  31.
The causes of the alarms can be cleared by the specialist workshop. If this is not possible, contact the Reflex Customer Service.

Note!
See the control manual for information on clearing the cause.
ER Alarm
Code
01 Minimum pressure
02.1 Low water
03 High water
04.1 Compressor
05 Compressor run time
06 Make-up time
07 Make-up cycles
08 Pressure measurement
09 Level measurement
10 Maximum pressure
11 Make-up quantity
15 Make-up valve
16 Power failure
Stop ˃ 4 hours
19
34 — English
Floating Causes
contact
•
YES Set value not reached.
•
Water loss in the system.
•
Compressor fault.
•
Controller in Manual mode.
•
- Set value not reached.
•
Make-up disabled.
•
Air in the system.
•
Dirt trap clogged.
•
YES Set value exceeded.
•
Make-up disabled.
•
Water intake through a leakage in a
thermal transfer medium of the user.
•
Vessel too small.
•
YES Compressor disabled.
•
Fuse defective.
•
- Set value exceeded.
•
Severe water loss in the system.
•
Air lines leaking.
•
Solenoid valve in the overflow pipe
does not close.
•
- Set value exceeded.
•
Water loss in the system.
•
Make-up line not connected.
•
Make-up output insufficient.
•
Make-up hysteresis too low.
- Set value exceeded.
YES Controller receives incorrect signal.
YES Controller receives incorrect signal.
•
- Set value exceeded.
•
Overflow pipe not functioning.
•
Dirt trap clogged.
- "With water meter" must be activated in the
Customer menu.
•
Set value exceeded.
•
Severe water loss in the system.
- Contact water meter measures without
make-up request.
- No power.
- Device is in Stop mode for more than 4
hours.
Reflexomat Silent Compact — 06.12.2023
Remedy
•
Check set value in the customer or
service menu.
•
Check water level.
•
Check compressor.
•
Set the controller to Automatic mode.
•
Check set value in the customer or
service menu.
•
Clean the dirt trap.
•
Check functioning of the "PV1" solenoid
valve.
•
If necessary, manually add water.
•
Check set value in the customer or
service menu.
•
Check functioning of the "WV1" solenoid
valve.
•
Drain water from the "RG" vessel.
•
Check site fluid medium for leakage.
•
Check set values in the Customer or
Service menu.
•
Replace the fuse.
•
Check set value in the customer or
service menu.
•
Check the water loss and correct, if
necessary.
•
Seal any leak in the air system.
•
Check functioning of the "PV1" solenoid
valve.
•
Check set value in the customer or
service menu.
•
Check water level.
•
Connect make-up line
•
Check set value in the customer or
service menu.
•
Seal any leakage in the system.
•
Connect the plug.
•
Check functioning of the pressure
sensor.
•
Check the cable for damage.
•
Check the pressure sensor.
•
Check functioning of the load cell.
•
Check the cable for damage.
•
Connect the plug.
•
Check set value in the customer or
service menu.
•
Check functioning of the overflow pipe.
•
Clean the dirt trap.
•
Check set value in the customer or
service menu.
•
Check water loss in the system and
repair, if necessary.
Check the make-up valve for leaks.
Connect to voltage supply.
Set the controller to Automatic mode.
Alarm reset
-
-
-
