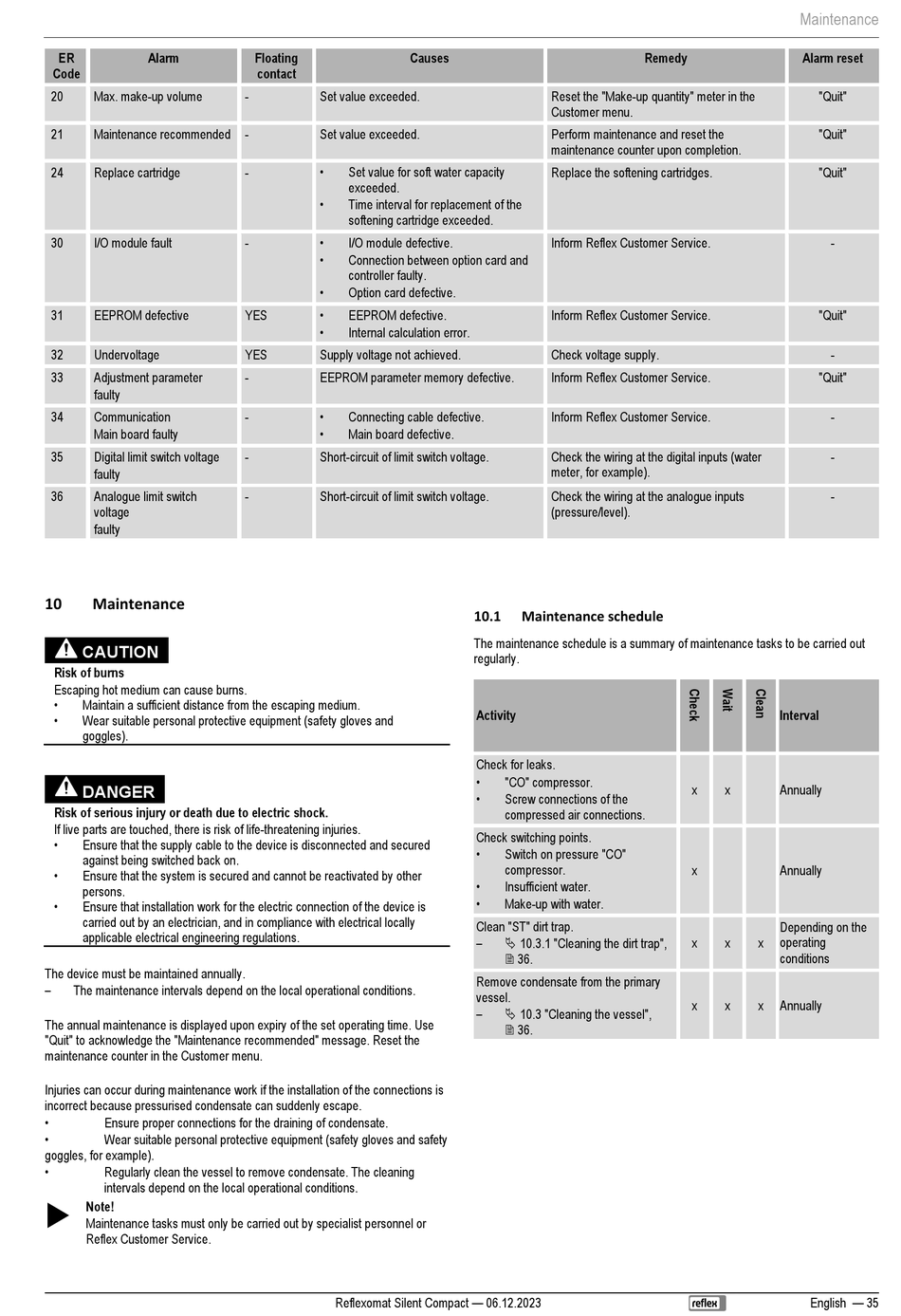

Reflex Reflexomat Silent Compact RSC 200 Betriebsanleitung Seite 35

ER Alarm
Code
20 Max. make-up volume
21 Maintenance recommended
24 Replace cartridge
30 I/O module fault
31 EEPROM defective
32 Undervoltage
33 Adjustment parameter
faulty
34 Communication
Main board faulty
35 Digital limit switch voltage
faulty
36 Analogue limit switch
voltage
faulty
10 Maintenance
CAUTION
Risk of burns
Escaping hot medium can cause burns.
•
Maintain a sufficient distance from the escaping medium.
•
Wear suitable personal protective equipment (safety gloves and
goggles).
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
•
Ensure that the supply cable to the device is disconnected and secured
against being switched back on.
•
Ensure that the system is secured and cannot be reactivated by other
persons.
•
Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical locally
applicable electrical engineering regulations.
The device must be maintained annually.
–
The maintenance intervals depend on the local operational conditions.
The annual maintenance is displayed upon expiry of the set operating time. Use
"Quit" to acknowledge the "Maintenance recommended" message. Reset the
maintenance counter in the Customer menu.
Injuries can occur during maintenance work if the installation of the connections is
incorrect because pressurised condensate can suddenly escape.
•
Ensure proper connections for the draining of condensate.
•
Wear suitable personal protective equipment (safety gloves and safety
goggles, for example).
•
Regularly clean the vessel to remove condensate. The cleaning
intervals depend on the local operational conditions.

Note!
Maintenance tasks must only be carried out by specialist personnel or
Reflex Customer Service.
Floating Causes
contact
- Set value exceeded.
- Set value exceeded.
•
- Set value for soft water capacity
exceeded.
•
Time interval for replacement of the
softening cartridge exceeded.
•
- I/O module defective.
•
Connection between option card and
controller faulty.
•
Option card defective.
•
YES EEPROM defective.
•
Internal calculation error.
YES Supply voltage not achieved.
- EEPROM parameter memory defective.
•
- Connecting cable defective.
•
Main board defective.
- Short-circuit of limit switch voltage.
- Short-circuit of limit switch voltage.
Reflexomat Silent Compact — 06.12.2023
Remedy
Reset the "Make-up quantity" meter in the
Customer menu.
Perform maintenance and reset the
maintenance counter upon completion.
Replace the softening cartridges.
Inform Reflex Customer Service.
Inform Reflex Customer Service.
Check voltage supply.
Inform Reflex Customer Service.
Inform Reflex Customer Service.
Check the wiring at the digital inputs (water
meter, for example).
Check the wiring at the analogue inputs
(pressure/level).
10.1 Maintenance schedule
The maintenance schedule is a summary of maintenance tasks to be carried out
regularly.
Activity
Check for leaks.
•
"CO" compressor.
•
Screw connections of the
compressed air connections.
Check switching points.
•
Switch on pressure "CO"
compressor.
•
Insufficient water.
•
Make-up with water.
Clean "ST" dirt trap.
–
 10.3.1 "Cleaning the dirt trap",
 36.
Remove condensate from the primary
vessel.
–
 10.3 "Cleaning the vessel",
 36.
Maintenance
Alarm reset
"Quit"
"Quit"
"Quit"
-
"Quit"
-
"Quit"
-
-
-
Interval
x x Annually
x Annually
Depending on the
x x x operating
conditions
x x x Annually
