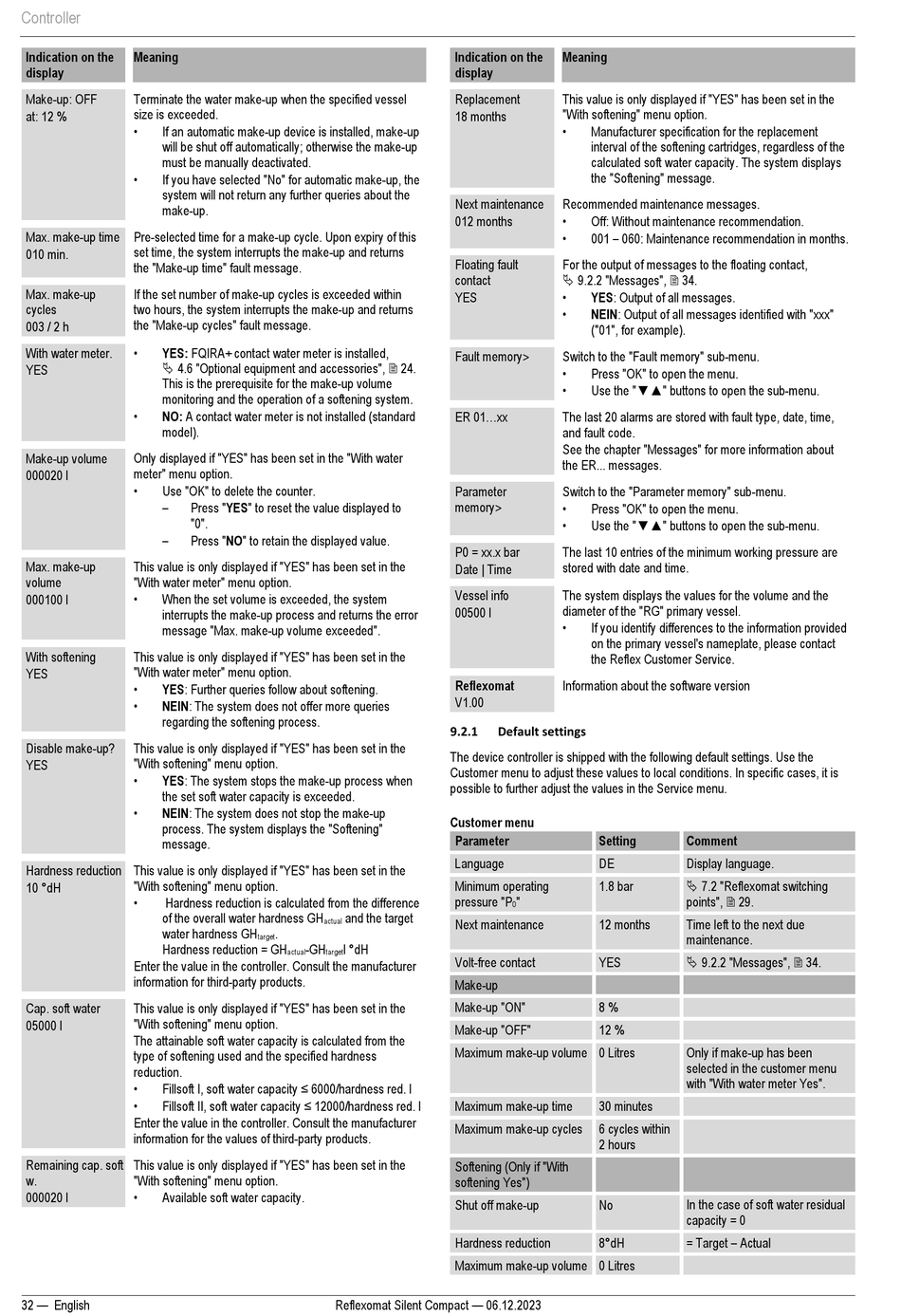

Reflex Reflexomat Silent Compact RSC 200 Betriebsanleitung Seite 32

Controller
Indication on the Meaning
display
Make-up: OFF Terminate the water make-up when the specified vessel
size is exceeded.
at: 12 %
•
If an automatic make-up device is installed, make-up
will be shut off automatically; otherwise the make-up
must be manually deactivated.
•
If you have selected "No" for automatic make-up, the
system will not return any further queries about the
make-up.
Max. make-up time Pre-selected time for a make-up cycle. Upon expiry of this
set time, the system interrupts the make-up and returns
010 min.
the "Make-up time" fault message.
Max. make-up If the set number of make-up cycles is exceeded within
two hours, the system interrupts the make-up and returns
cycles
the "Make-up cycles" fault message.
003 / 2 h
•
With water meter. YES: FQIRA+ contact water meter is installed,
 4.6 "Optional equipment and accessories",  24.
YES
This is the prerequisite for the make-up volume
monitoring and the operation of a softening system.
•
NO: A contact water meter is not installed (standard
model).
Only displayed if "YES" has been set in the "With water
Make-up volume
meter" menu option.
000020 l
•
Use "OK" to delete the counter.
–
Press "YES" to reset the value displayed to
"0".
–
Press "NO" to retain the displayed value.
Max. make-up This value is only displayed if "YES" has been set in the
volume "With water meter" menu option.
•
000100 l When the set volume is exceeded, the system
interrupts the make-up process and returns the error
message "Max. make-up volume exceeded".
With softening This value is only displayed if "YES" has been set in the
"With water meter" menu option.
YES
•
YES: Further queries follow about softening.
•
NEIN: The system does not offer more queries
regarding the softening process.
Disable make-up? This value is only displayed if "YES" has been set in the
"With softening" menu option.
YES
•
YES: The system stops the make-up process when
the set soft water capacity is exceeded.
•
NEIN: The system does not stop the make-up
process. The system displays the "Softening"
message.
Hardness reduction This value is only displayed if "YES" has been set in the
"With softening" menu option.
10 °dH
•
Hardness reduction is calculated from the difference
of the overall water hardness GH
water hardness GH
Hardness reduction = GH
Enter the value in the controller. Consult the manufacturer
information for third-party products.
Cap. soft water This value is only displayed if "YES" has been set in the
"With softening" menu option.
05000 l
The attainable soft water capacity is calculated from the
type of softening used and the specified hardness
reduction.
• Fillsoft I, soft water capacity ≤ 6000/hardness red. l
• Fillsoft II, soft water capacity ≤ 12000/hardness red. l
Enter the value in the controller. Consult the manufacturer
information for the values of third-party products.
Remaining cap. soft This value is only displayed if "YES" has been set in the
w. "With softening" menu option.
•
000020 l Available soft water capacity.
32 — English
and the target
actual
.
target
-GH l °dH
actual target
Reflexomat Silent Compact — 06.12.2023
Indication on the Meaning
display
Replacement This value is only displayed if "YES" has been set in the
"With softening" menu option.
18 months
•
Manufacturer specification for the replacement
interval of the softening cartridges, regardless of the
calculated soft water capacity. The system displays
the "Softening" message.
Next maintenance Recommended maintenance messages.
•
012 months Off: Without maintenance recommendation.
• 001 – 060: Maintenance recommendation in months.
Floating fault For the output of messages to the floating contact,
 9.2.2 "Messages",  34.
contact
•
YES YES: Output of all messages.
•
NEIN: Output of all messages identified with "xxx"
("01", for example).
Fault memory˃ Switch to the "Fault memory" sub-menu.
•
Press "OK" to open the menu.
•
Use the "▼▲" buttons to open the sub-menu.
ER 01...xx
The last 20 alarms are stored with fault type, date, time,
and fault code.
See the chapter "Messages" for more information about
the ER... messages.
Parameter Switch to the "Parameter memory" sub-menu.
•
memory˃
Press "OK" to open the menu.
•
Use the "▼▲" buttons to open the sub-menu.
P0 = xx.x bar The last 10 entries of the minimum working pressure are
stored with date and time.
Date | Time
Vessel info The system displays the values for the volume and the
diameter of the "RG" primary vessel.
00500 l
•
If you identify differences to the information provided
on the primary vessel's nameplate, please contact
the Reflex Customer Service.
Reflexomat Information about the software version
V1.00
9.2.1 Default settings
The device controller is shipped with the following default settings. Use the
Customer menu to adjust these values to local conditions. In specific cases, it is
possible to further adjust the values in the Service menu.
Customer menu
Parameter Setting
Language DE
Minimum operating 1.8 bar
pressure "P "
0
Next maintenance 12 months
Volt-free contact YES
Make-up
Make-up "ON" 8 %
Make-up "OFF" 12 %
Maximum make-up volume 0 Litres
Maximum make-up time 30 minutes
Maximum make-up cycles 6 cycles within
2 hours
Softening (Only if "With
softening Yes")
Shut off make-up No
Hardness reduction 8°dH
Maximum make-up volume 0 Litres
Comment
Display language.
 7.2 "Reflexomat switching
points",  29.
Time left to the next due
maintenance.
 9.2.2 "Messages",  34.
Only if make-up has been
selected in the customer menu
with "With water meter Yes".
In the case of soft water residual
capacity = 0
= Target – Actual
