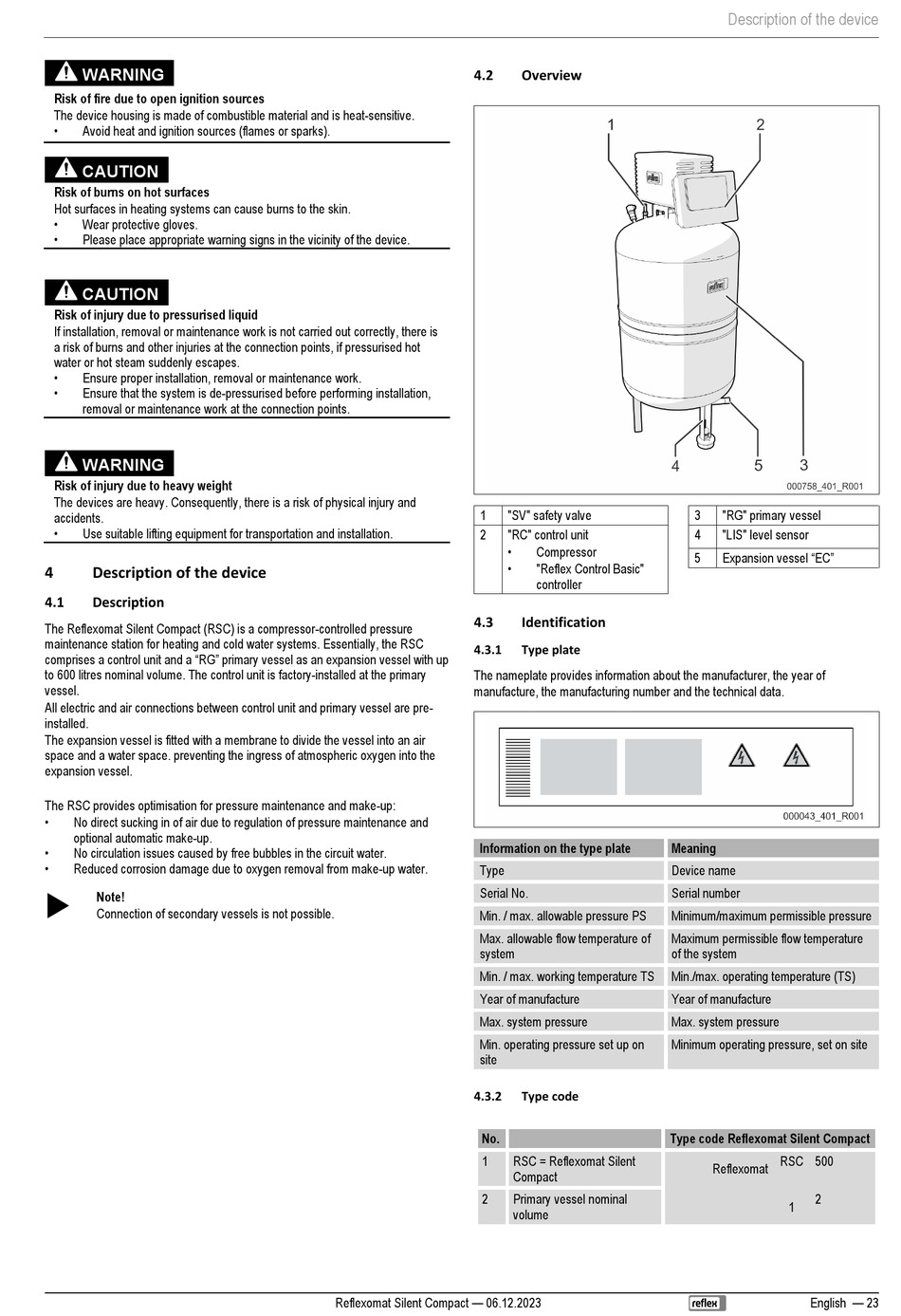

WARNING
Risk of fire due to open ignition sources
The device housing is made of combustible material and is heat-sensitive.
Avoid heat and ignition sources (flames or sparks).
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
Wear protective gloves.
Please place appropriate warning signs in the vicinity of the device.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there is
a risk of burns and other injuries at the connection points, if pressurised hot
water or hot steam suddenly escapes.
Ensure proper installation, removal or maintenance work.
Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
WARNING
Risk of injury due to heavy weight
The devices are heavy. Consequently, there is a risk of physical injury and
accidents.
Use suitable lifting equipment for transportation and installation.
4
Description of the device
4.1
Description
The Reflexomat Silent Compact (RSC) is a compressor-controlled pressure
maintenance station for heating and cold water systems. Essentially, the RSC
comprises a control unit and a "RG" primary vessel as an expansion vessel with up
to 600 litres nominal volume. The control unit is factory-installed at the primary
vessel.
All electric and air connections between control unit and primary vessel are pre-
installed.
The expansion vessel is fitted with a membrane to divide the vessel into an air
space and a water space. preventing the ingress of atmospheric oxygen into the
expansion vessel.
The RSC provides optimisation for pressure maintenance and make-up:
No direct sucking in of air due to regulation of pressure maintenance and
optional automatic make-up.
No circulation issues caused by free bubbles in the circuit water.
Reduced corrosion damage due to oxygen removal from make-up water.

Note!
Connection of secondary vessels is not possible.
4.2
1
2
4.3
4.3.1
The nameplate provides information about the manufacturer, the year of
manufacture, the manufacturing number and the technical data.
Information on the type plate
Type
Serial No.
Min. / max. allowable pressure PS
Max. allowable flow temperature of
system
Min. / max. working temperature TS
Year of manufacture
Max. system pressure
Min. operating pressure set up on
site
4.3.2
No.
1
2
Reflexomat Silent Compact — 06.12.2023
Overview
"SV" safety valve
"RC" control unit
Compressor
"Reflex Control Basic"
controller
Identification
Type plate
Meaning
Device name
Serial number
Minimum/maximum permissible pressure
Maximum permissible flow temperature
of the system
Min./max. operating temperature (TS)
Year of manufacture
Max. system pressure
Minimum operating pressure, set on site
Type code
Type code Reflexomat Silent Compact
RSC = Reflexomat Silent
Compact
Primary vessel nominal
volume
Description of the device
3
"RG" primary vessel
4
"LIS" level sensor
Expansion vessel "EC"
5
RSC 500
Reflexomat
2
1
English — 23
