Installation
6.3.1

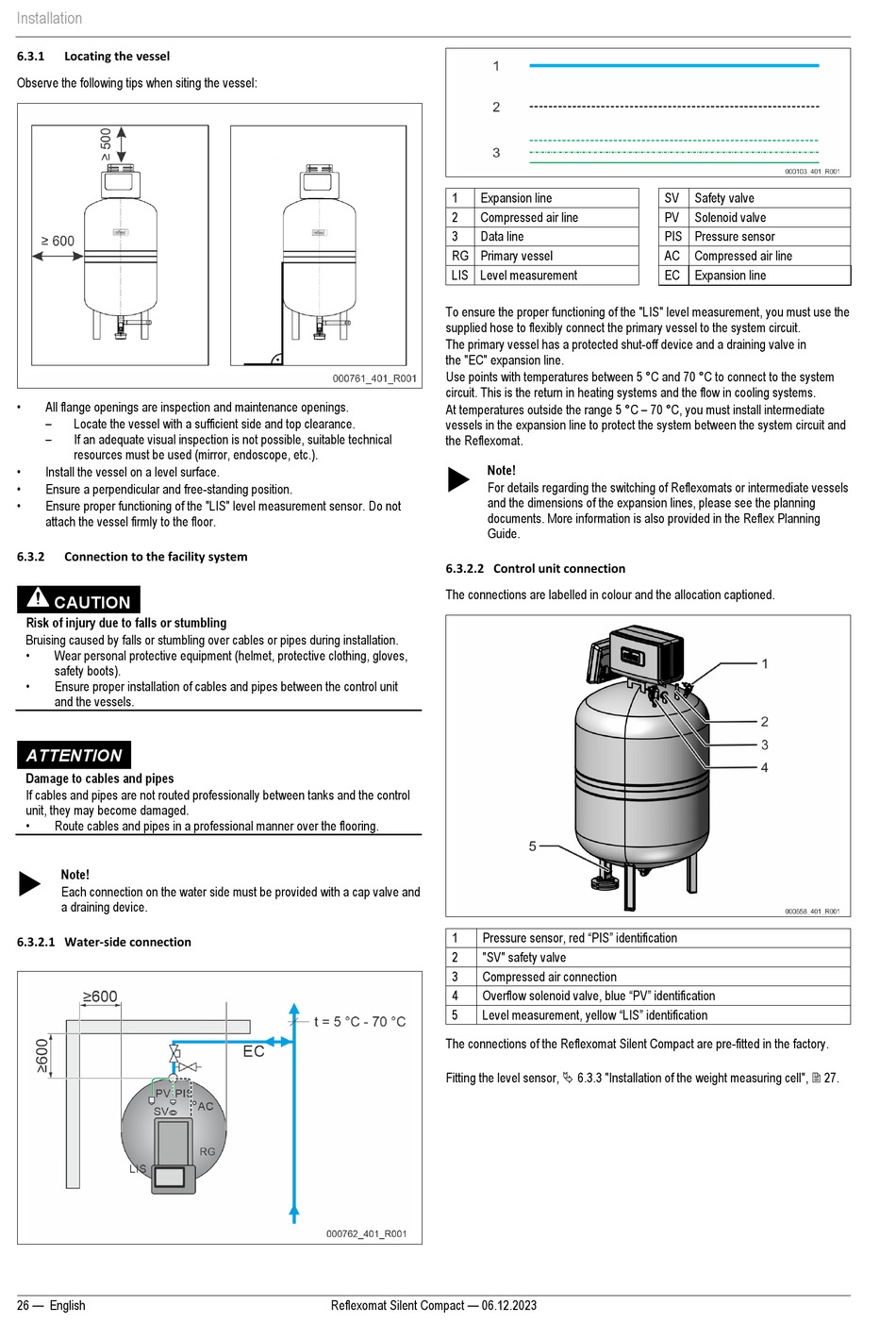

Locating the vessel
Observe the following tips when siting the vessel:
•
All flange openings are inspection and maintenance openings.
–
Locate the vessel with a sufficient side and top clearance.
–
If an adequate visual inspection is not possible, suitable technical
resources must be used (mirror, endoscope, etc.).
•
Install the vessel on a level surface.
•
Ensure a perpendicular and free-standing position.
•
Ensure proper functioning of the "LIS" level measurement sensor. Do not
attach the vessel firmly to the floor.
6.3.2
Connection to the facility system
CAUTION
Risk of injury due to falls or stumbling
Bruising caused by falls or stumbling over cables or pipes during installation.
•
Wear personal protective equipment (helmet, protective clothing, gloves,
safety boots).
•
Ensure proper installation of cables and pipes between the control unit
and the vessels.
ATTENTION
Damage to cables and pipes
If cables and pipes are not routed professionally between tanks and the control
unit, they may become damaged.
•
Route cables and pipes in a professional manner over the flooring.
Note!
Each connection on the water side must be provided with a cap valve and
a draining device.
6.3.2.1 Water-side connection
26 — English
1
Expansion line
2
Compressed air line
3
Data line
RG Primary vessel
LIS Level measurement
To ensure the proper functioning of the "LIS" level measurement, you must use the
supplied hose to flexibly connect the primary vessel to the system circuit.
The primary vessel has a protected shut-off device and a draining valve in
the "EC" expansion line.
Use points with temperatures between 5 °C and 70 °C to connect to the system
circuit. This is the return in heating systems and the flow in cooling systems.
At temperatures outside the range 5 °C – 70 °C, you must install intermediate
vessels in the expansion line to protect the system between the system circuit and
the Reflexomat.
Note!
For details regarding the switching of Reflexomats or intermediate vessels
and the dimensions of the expansion lines, please see the planning
documents. More information is also provided in the Reflex Planning
Guide.
6.3.2.2 Control unit connection
The connections are labelled in colour and the allocation captioned.
Pressure sensor, red "PIS" identification
1
2
"SV" safety valve
3
Compressed air connection
Overflow solenoid valve, blue "PV" identification
4
Level measurement, yellow "LIS" identification
5
The connections of the Reflexomat Silent Compact are pre-fitted in the factory.
Fitting the level sensor, 6.3.3 "Installation of the weight measuring cell", 27.
Reflexomat Silent Compact — 06.12.2023
SV
Safety valve
PV
Solenoid valve
PIS Pressure sensor
AC
Compressed air line
EC
Expansion line
