96 AVENTICS | DeviceNet | R499050019–BDL–001–AD
Assembly
Bus coupler
Input/output modules

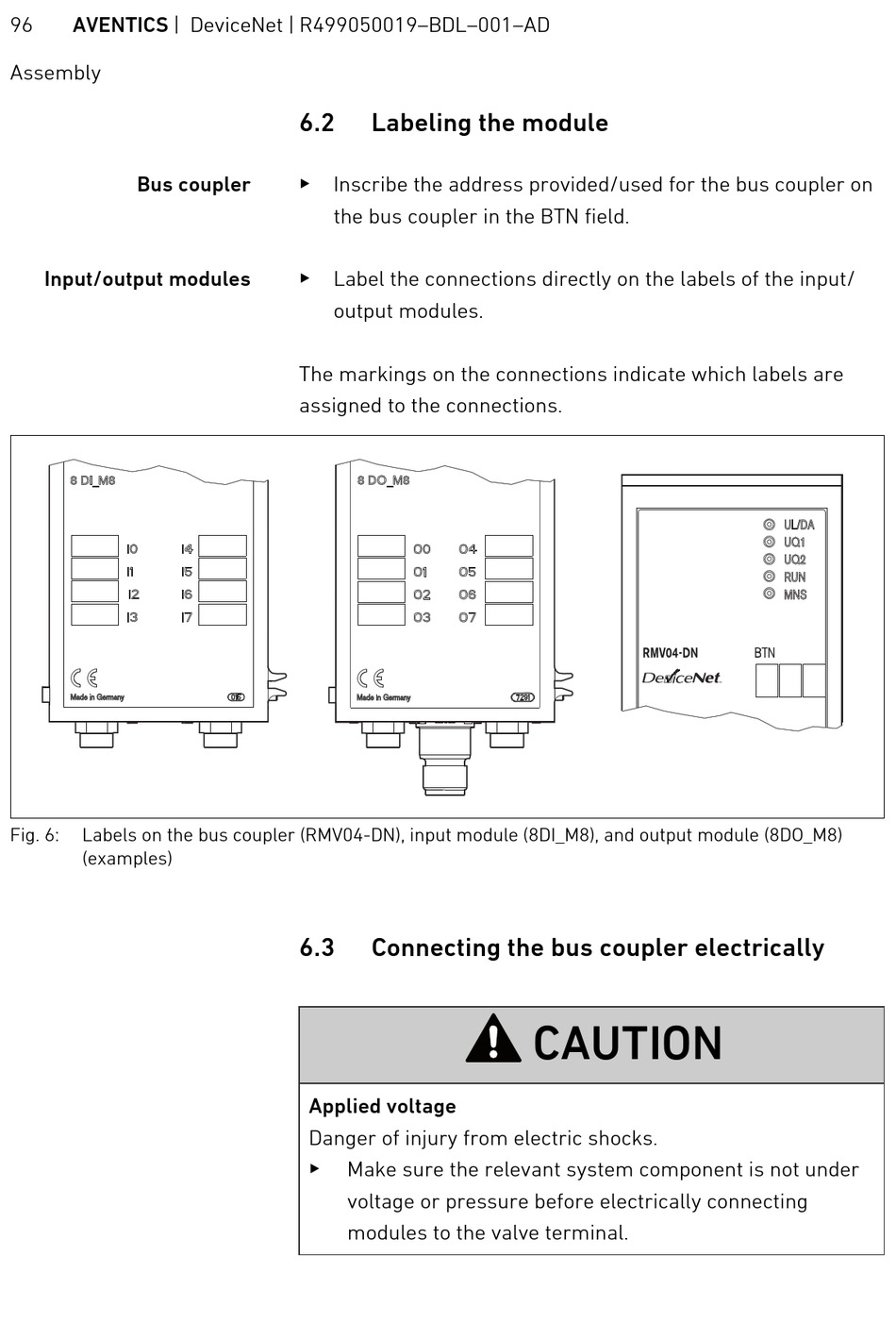

Fig. 6: Labels on the bus coupler (RMV04-DN), input module (8DI_M8), and output module (8DO_M8)
(examples)
6.2

Labeling the module

O
Inscribe the address provided/used for the bus coupler on
the bus coupler in the BTN field.
O
Label the connections directly on the labels of the input/
output modules.
The markings on the connections indicate which labels are
assigned to the connections.
6.3

Connecting the bus coupler electrically

Applied voltage
Danger of injury from electric shocks.
O
Make sure the relevant system component is not under
voltage or pressure before electrically connecting
modules to the valve terminal.
CAUTION
