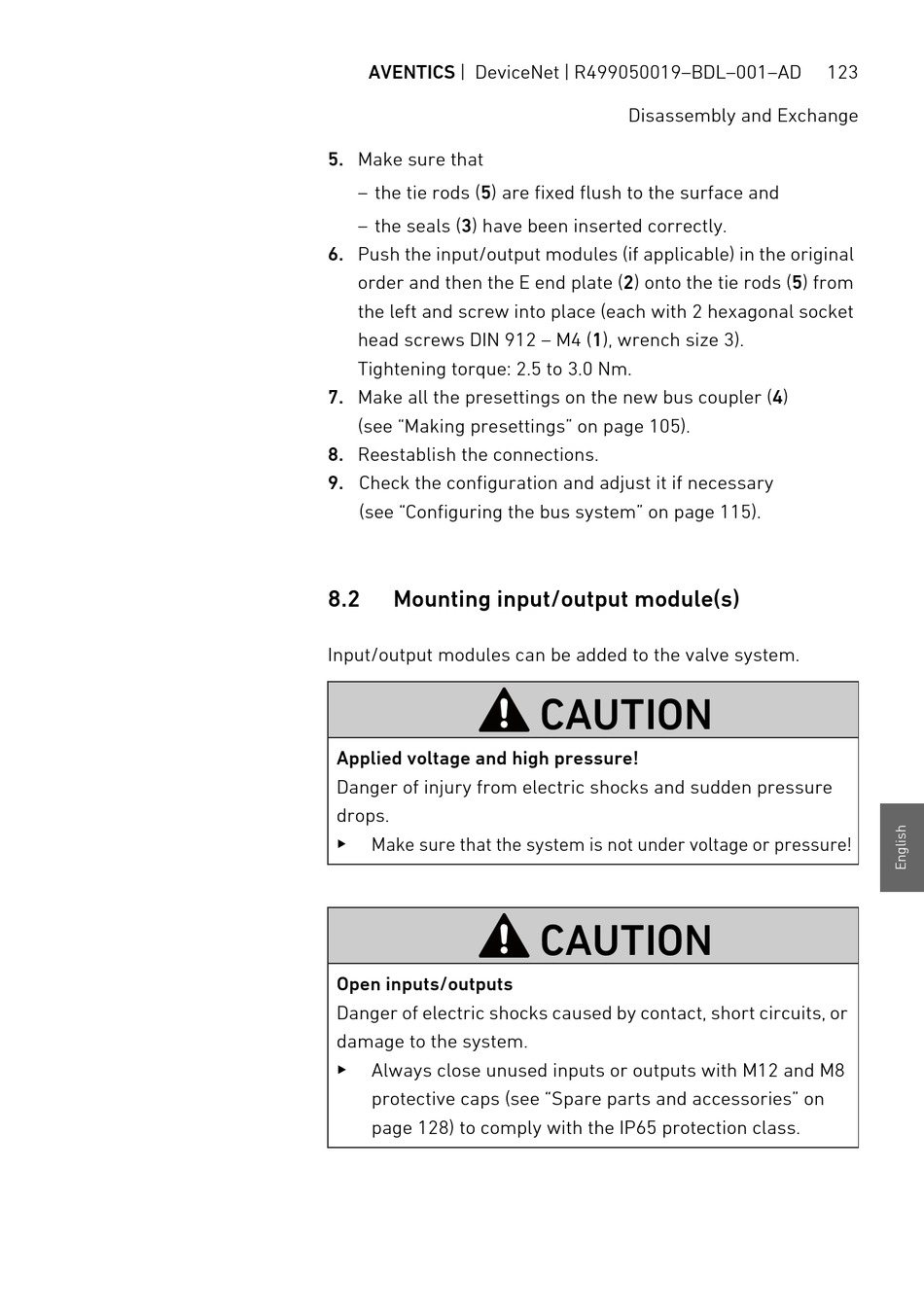

AVENTICS | DeviceNet | R499050019–BDL–001–AD
5. Make sure that
– the tie rods (5) are fixed flush to the surface and
– the seals (3) have been inserted correctly.
6. Push the input/output modules (if applicable) in the original
order and then the E end plate (2) onto the tie rods (5) from
the left and screw into place (each with 2 hexagonal socket
head screws DIN 912 – M4 (1), wrench size 3).
Tightening torque: 2.5 to 3.0 Nm.
7. Make all the presettings on the new bus coupler (4)
(see "Making presettings" on page 105).
8. Reestablish the connections.
9. Check the configuration and adjust it if necessary
(see "Configuring the bus system" on page 115).
8.2

Mounting input/output module(s)

Input/output modules can be added to the valve system.
Applied voltage and high pressure!
Danger of injury from electric shocks and sudden pressure
drops.
O
Make sure that the system is not under voltage or pressure!
Open inputs/outputs
Danger of electric shocks caused by contact, short circuits, or
damage to the system.
O
Always close unused inputs or outputs with M12 and M8
protective caps (see "Spare parts and accessories" on
page 128) to comply with the IP65 protection class.
Disassembly and Exchange
CAUTION
CAUTION
123
