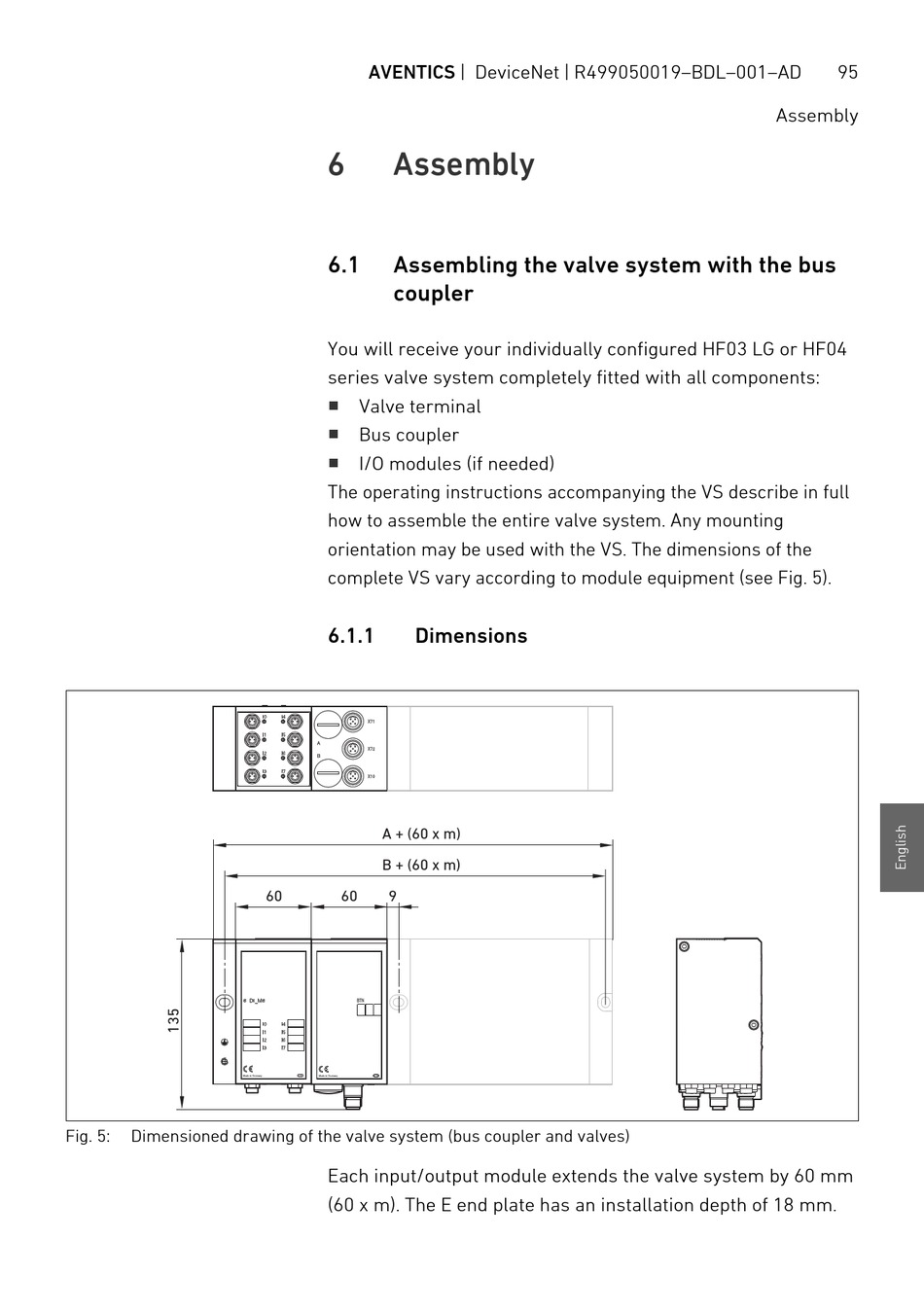

Fig. 5: Dimensioned drawing of the valve system (bus coupler and valves)
AVENTICS | DeviceNet | R499050019–BDL–001–AD
6

Assembly

6.1 Assembling the valve system with the bus
coupler
You will receive your individually configured HF03 LG or HF04
series valve system completely fitted with all components:
W
Valve terminal
W
Bus coupler
W
I/O modules (if needed)
The operating instructions accompanying the VS describe in full
how to assemble the entire valve system. Any mounting
orientation may be used with the VS. The dimensions of the
complete VS vary according to module equipment (see Fig. 5).
6.1.1

Dimensions

A + (60 x m)
B + (60 x m)
60 60 9
Each input/output module extends the valve system by 60 mm
(60 x m). The E end plate has an installation depth of 18 mm.
95
Assembly
