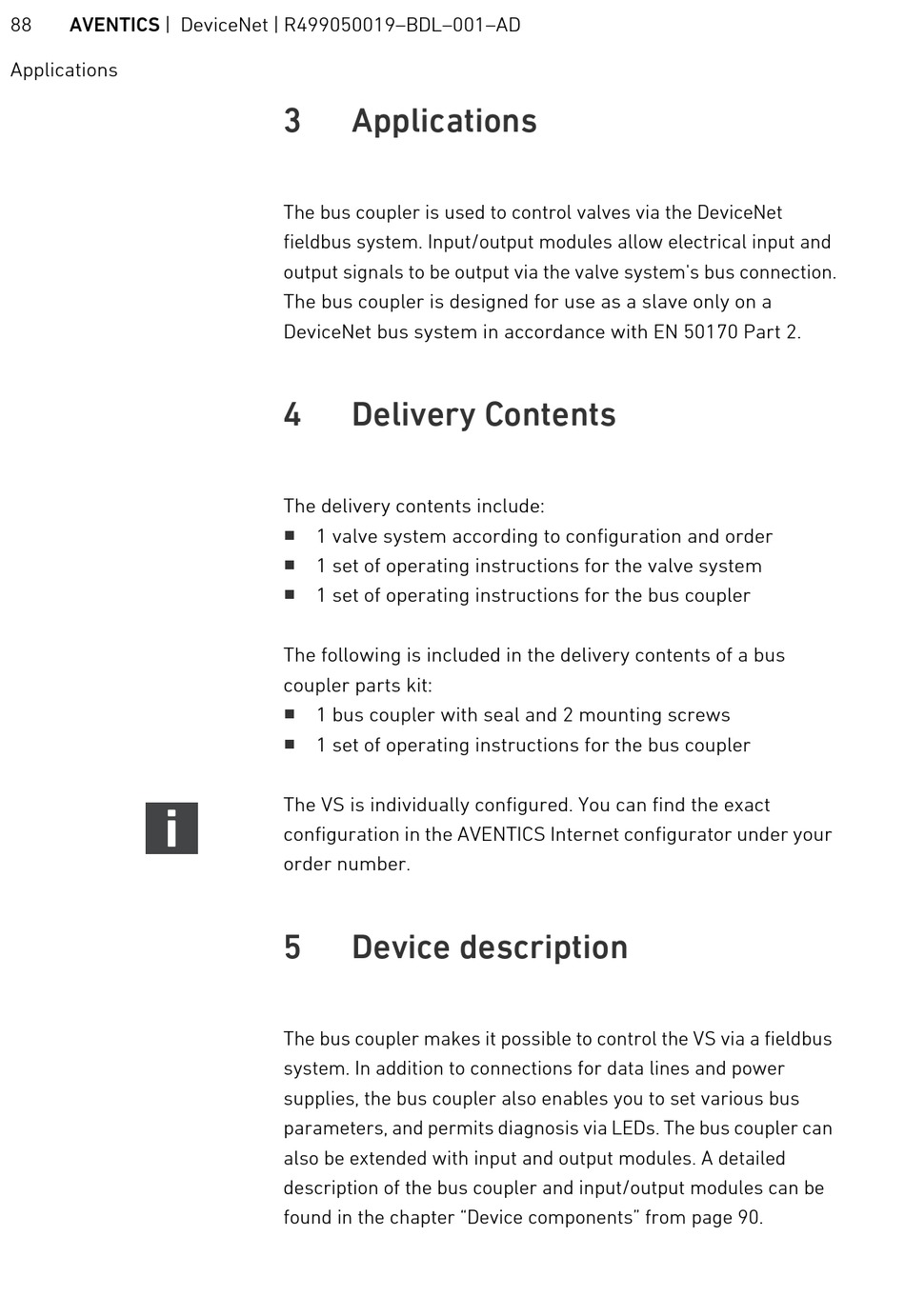

88 AVENTICS | DeviceNet | R499050019–BDL–001–AD

Applications

3 Applications
The bus coupler is used to control valves via the DeviceNet
fieldbus system. Input/output modules allow electrical input and
output signals to be output via the valve system's bus connection.
The bus coupler is designed for use as a slave only on a
DeviceNet bus system in accordance with EN 50170 Part 2.
4

Delivery Contents

The delivery contents include:
W
1 valve system according to configuration and order
W
1 set of operating instructions for the valve system
W
1 set of operating instructions for the bus coupler
The following is included in the delivery contents of a bus
coupler parts kit:
W
1 bus coupler with seal and 2 mounting screws
W
1 set of operating instructions for the bus coupler
The VS is individually configured. You can find the exact
configuration in the AVENTICS Internet configurator under your
order number.
5

Device description

The bus coupler makes it possible to control the VS via a fieldbus
system. In addition to connections for data lines and power
supplies, the bus coupler also enables you to set various bus
parameters, and permits diagnosis via LEDs. The bus coupler can
also be extended with input and output modules. A detailed
description of the bus coupler and input/output modules can be
found in the chapter "Device components" from page 90.
