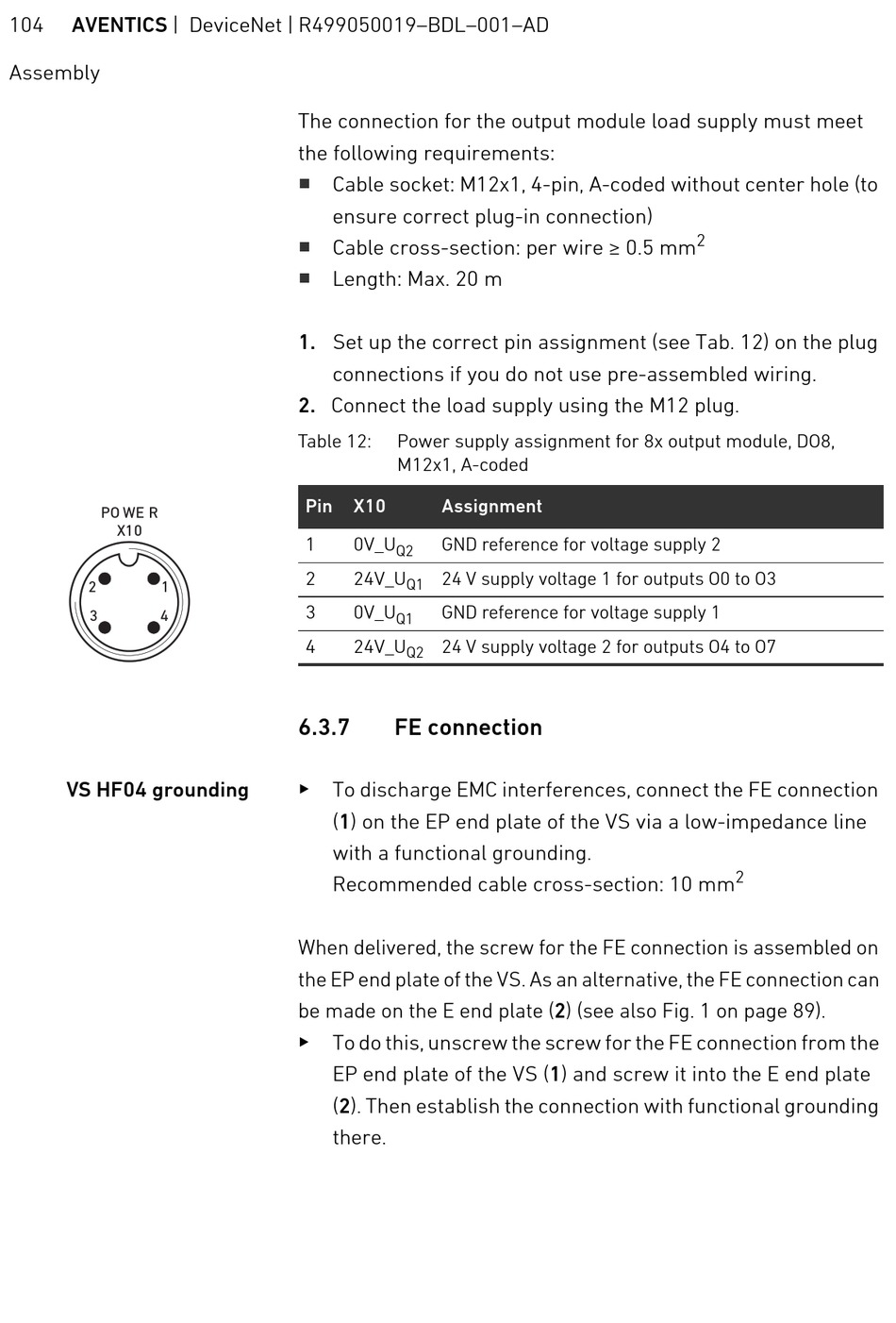

104 AVENTICS | DeviceNet | R499050019–BDL–001–AD
Assembly
PO WE R
X10
2
1
3 4
VS HF04 grounding
The connection for the output module load supply must meet
the following requirements:
W
Cable socket: M12x1, 4-pin, A-coded without center hole (to
ensure correct plug-in connection)
W
Cable cross-section: per wire ≥ 0.5 mm
W
Length: Max. 20 m
1. Set up the correct pin assignment (see Tab. 12) on the plug
connections if you do not use pre-assembled wiring.
2. Connect the load supply using the M12 plug.
Table 12: Power supply assignment for 8x output module, DO8,
M12x1, A-coded
Pin X10 Assignment
1 0V_U GND reference for voltage supply 2
Q2
2 24V_U 24 V supply voltage 1 for outputs O0 to O3
Q1
3 0V_U GND reference for voltage supply 1
Q1
4 24V_U 24 V supply voltage 2 for outputs O4 to O7
Q2
6.3.7

FE connection

O
To discharge EMC interferences, connect the FE connection
(1) on the EP end plate of the VS via a low-impedance line
with a functional grounding.
Recommended cable cross-section: 10 mm
When delivered, the screw for the FE connection is assembled on
the EP end plate of the VS. As an alternative, the FE connection can
be made on the E end plate (2) (see also Fig. 1 on page 89).
O
To do this, unscrew the screw for the FE connection from the
EP end plate of the VS (1) and screw it into the E end plate
(2). Then establish the connection with functional grounding
there.
