90
AVENTICS | DeviceNet | R499050019–BDL–001–AD
Device description
5.2

Device components

5.2.1

Bus coupler

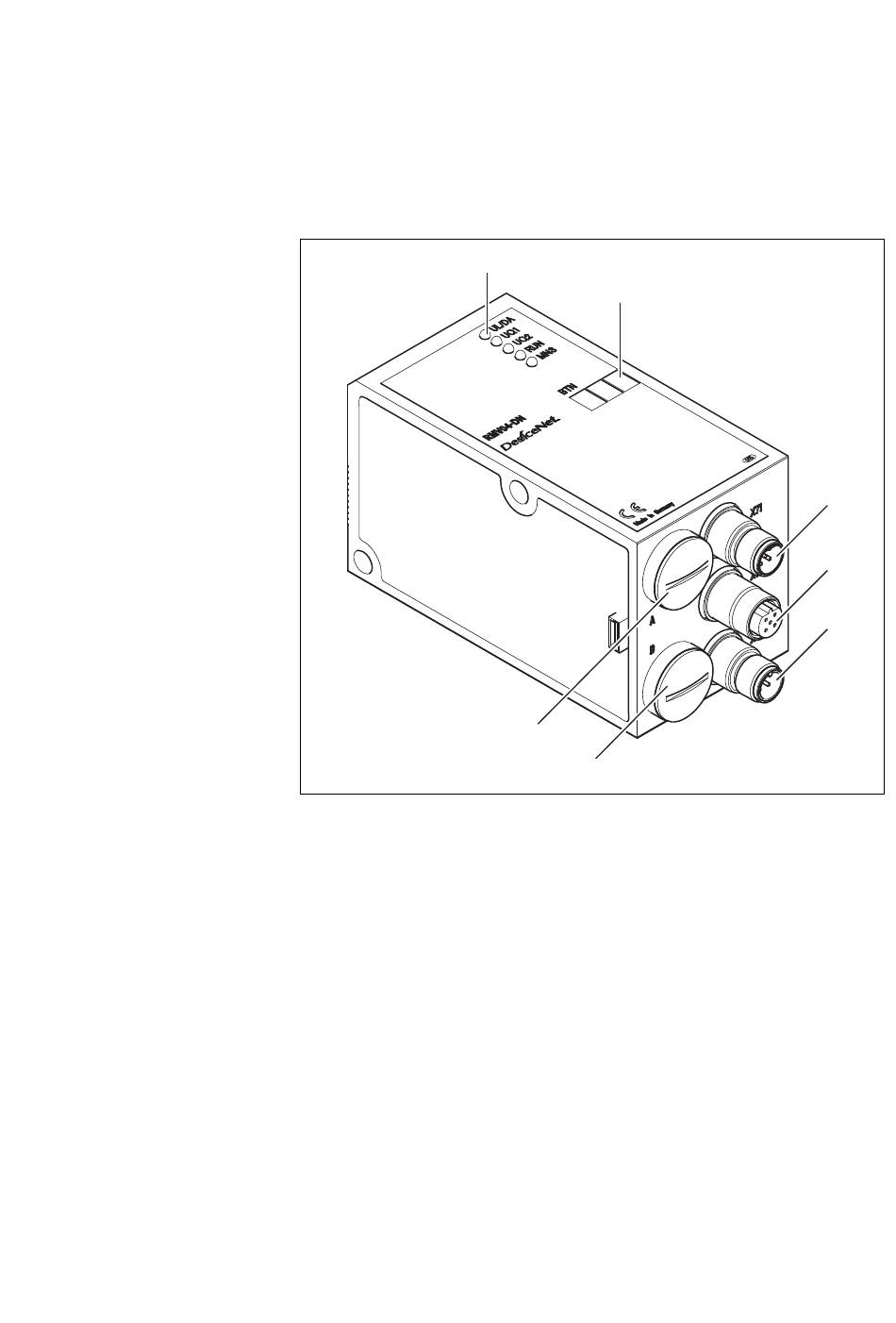

Fig. 2:
Bus coupler overview
1 LED displays for diagnostic messages
2 Bus slave label
3 X71 (BUS IN) connection for the bus coupler to control valves
and the I/O modules
4 X72 (BUS OUT) connection to control valves and the
1)
I/O modules
5 X10 (POWER) connection to supply power to the valve
solenoids
6 Screw cap B for S4, S5, S6 sliding switches (valve
assignment to power supply) and S8 (bus terminator)
7 Screw cap A for S1, S2 rotary switches (setting the station
address) and S3 DIP switch (setting modes)
1)
For plug assignment see page 97.
1
2
7
6
1)
3
4
5
