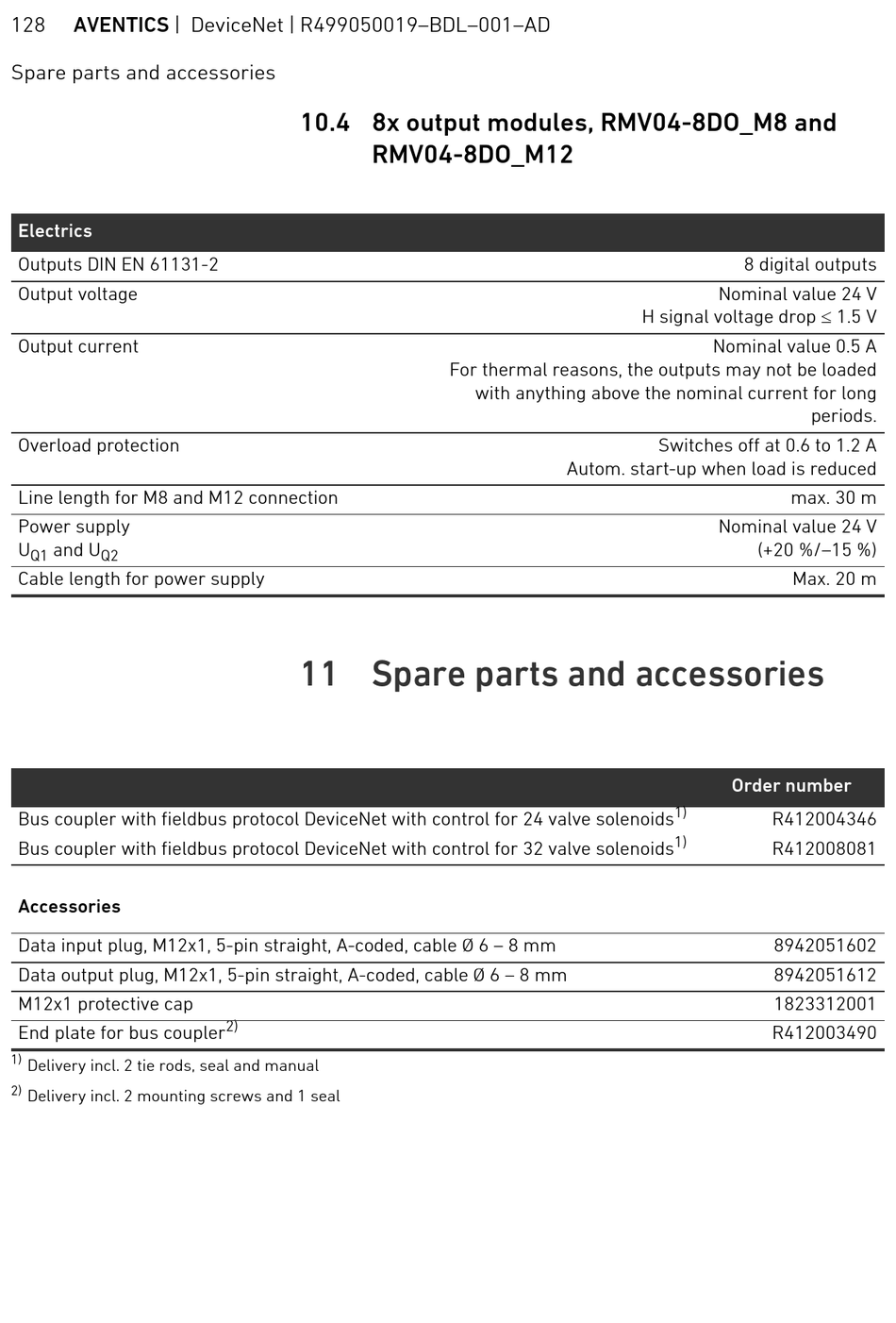

Spare parts and accessories

Electrics
Outputs DIN EN 61131-2
Output voltage
Output current
Overload protection
Line length for M8 and M12 connection
Power supply
U and U
Q1 Q2
Cable length for power supply
Bus coupler with fieldbus protocol DeviceNet with control for 24 valve solenoids
Bus coupler with fieldbus protocol DeviceNet with control for 32 valve solenoids
Accessories
Data input plug, M12x1, 5-pin straight, A-coded, cable Ø 6 – 8 mm
Data output plug, M12x1, 5-pin straight, A-coded, cable Ø 6 – 8 mm
M12x1 protective cap
End plate for bus coupler
1)
Delivery incl. 2 tie rods, seal and manual
2)
Delivery incl. 2 mounting screws and 1 seal
10.4 8x output modules, RMV04-8DO_M8 and
RMV04-8DO_M12
11 Spare parts and accessories
2)
For thermal reasons, the outputs may not be loaded
with anything above the nominal current for long
Autom. start-up when load is reduced
8 digital outputs
Nominal value 24 V
H signal voltage drop  1.5 V
Nominal value 0.5 A
periods.
Switches off at 0.6 to 1.2 A
max. 30 m
Nominal value 24 V
(+20 %/–15 %)
Max. 20 m
Order number
1)
R412004346
1)
R412008081
Order number
8942051602
8942051612
1823312001
R412003490
