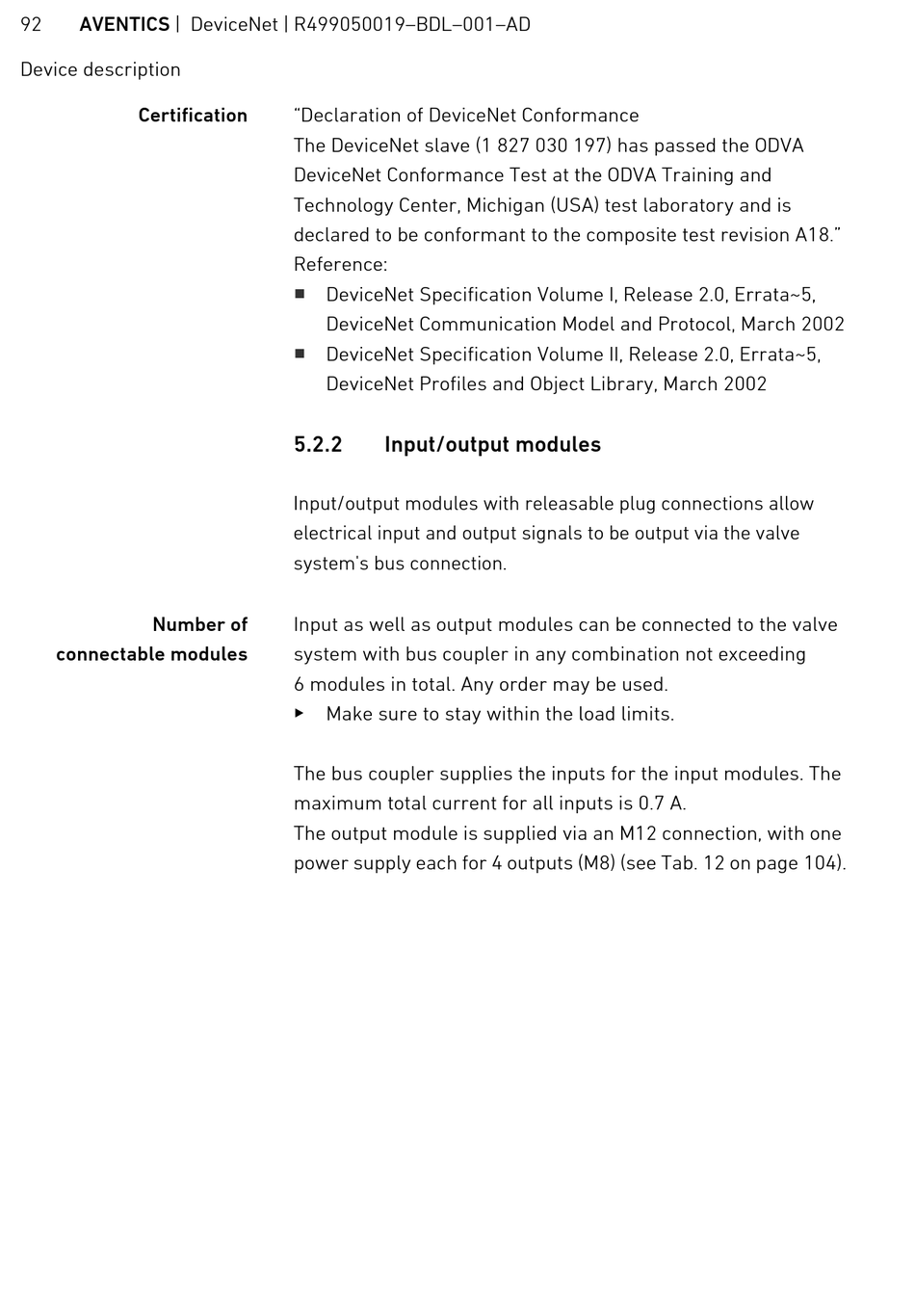

92 AVENTICS | DeviceNet | R499050019–BDL–001–AD
Device description
Certification
Number of
connectable modules
"Declaration of DeviceNet Conformance
The DeviceNet slave (1 827 030 197) has passed the ODVA
DeviceNet Conformance Test at the ODVA Training and
Technology Center, Michigan (USA) test laboratory and is
declared to be conformant to the composite test revision A18."
Reference:
W
DeviceNet Specification Volume I, Release 2.0, Errata~5,
DeviceNet Communication Model and Protocol, March 2002
W
DeviceNet Specification Volume II, Release 2.0, Errata~5,
DeviceNet Profiles and Object Library, March 2002
5.2.2

Input/output modules

Input/output modules with releasable plug connections allow
electrical input and output signals to be output via the valve
system's bus connection.
Input as well as output modules can be connected to the valve
system with bus coupler in any combination not exceeding
6 modules in total. Any order may be used.
O
Make sure to stay within the load limits.
The bus coupler supplies the inputs for the input modules. The
maximum total current for all inputs is 0.7 A.
The output module is supplied via an M12 connection, with one
power supply each for 4 outputs (M8) (see Tab. 12 on page 104).
