94 AVENTICS | DeviceNet | R499050019–BDL–001–AD
Device description

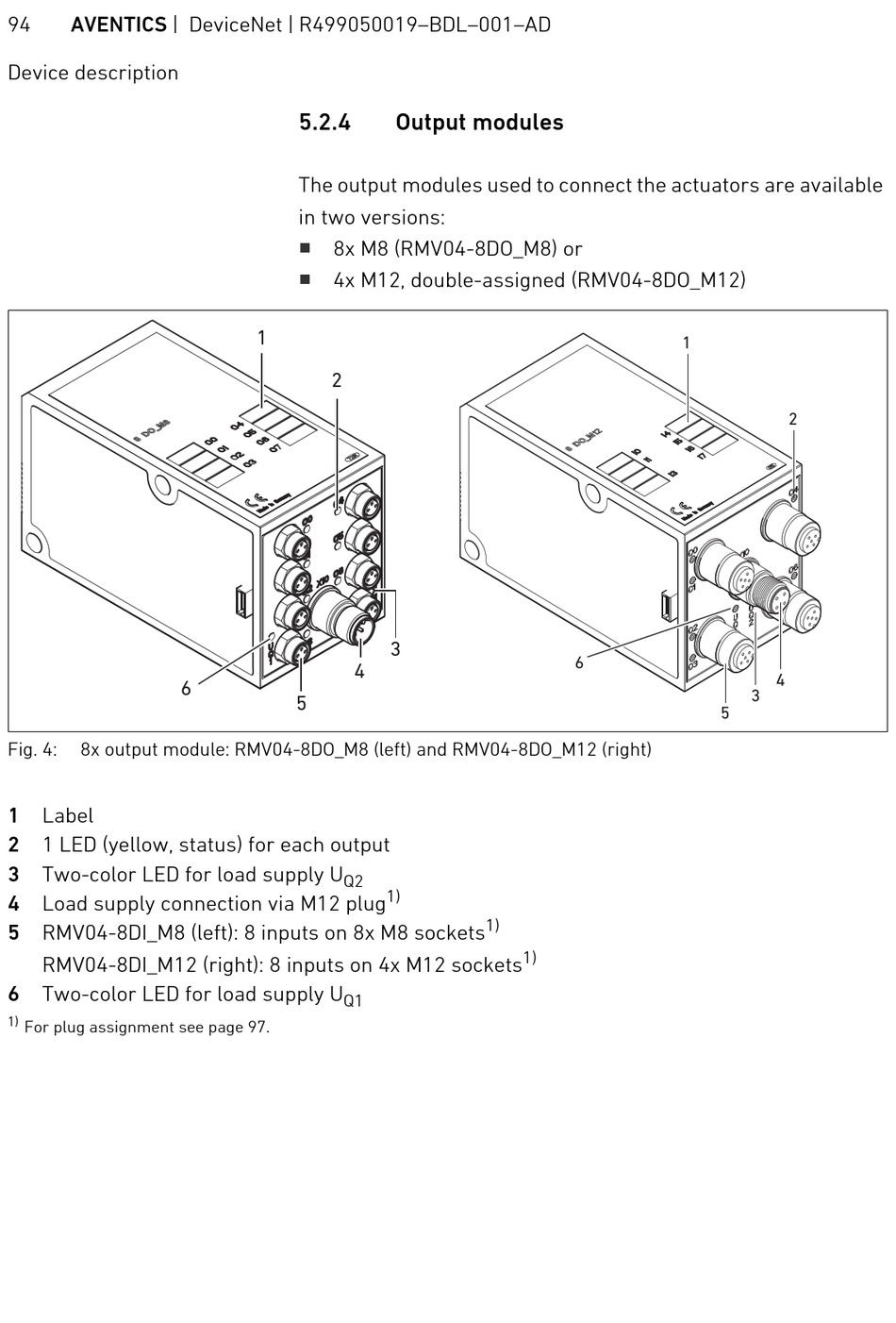

Fig. 4: 8x output module: RMV04-8DO_M8 (left) and RMV04-8DO_M12 (right)
1 Label
2 1 LED (yellow, status) for each output
3 Two-color LED for load supply U
4 Load supply connection via M12 plug
5 RMV04-8DI_M8 (left): 8 inputs on 8x M8 sockets
RMV04-8DI_M12 (right): 8 inputs on 4x M12 sockets
6 Two-color LED for load supply U
1)
For plug assignment see page 97.
5.2.4
The output modules used to connect the actuators are available
in two versions:
W
8x M8 (RMV04-8DO_M8) or
W
4x M12, double-assigned (RMV04-8DO_M12)
1
2
6
5
Q2
Q1

Output modules

3
4
1)
1)
1)
1
6
5
2
4
3
