Input Modules - Aventics CMS, B-Design Betriebsanleitung

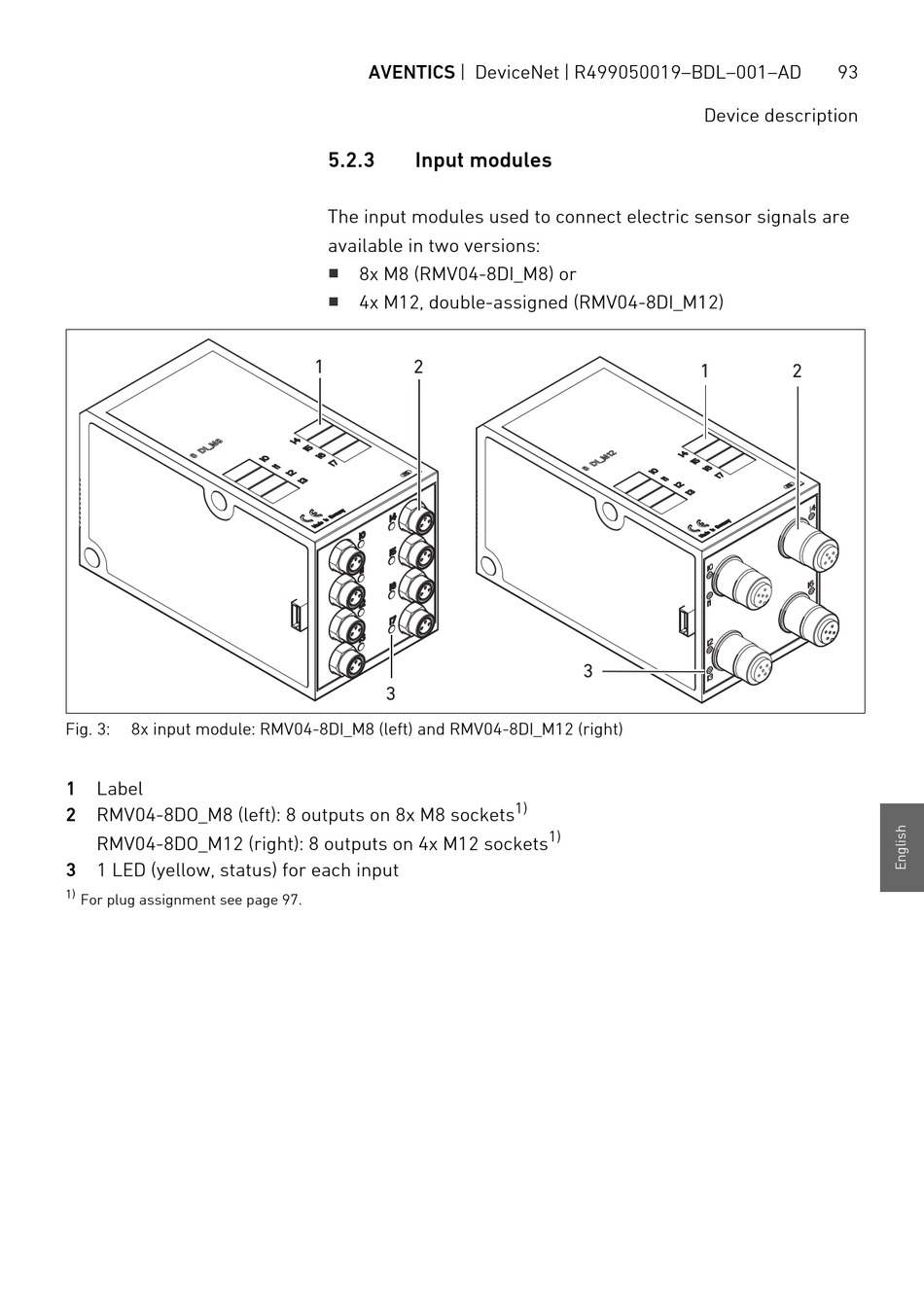

Fig. 3: 8x input module: RMV04-8DI_M8 (left) and RMV04-8DI_M12 (right)
1 Label
2 RMV04-8DO_M8 (left): 8 outputs on 8x M8 sockets
RMV04-8DO_M12 (right): 8 outputs on 4x M12 sockets
3 1 LED (yellow, status) for each input
1)
For plug assignment see page 97.
AVENTICS | DeviceNet | R499050019–BDL–001–AD
5.2.3

Input modules

The input modules used to connect electric sensor signals are
available in two versions:
W
8x M8 (RMV04-8DI_M8) or
W
4x M12, double-assigned (RMV04-8DI_M12)
1 2
3
3
1)
1)
93
Device description
1 2
