Bus coupler
Input/output modules

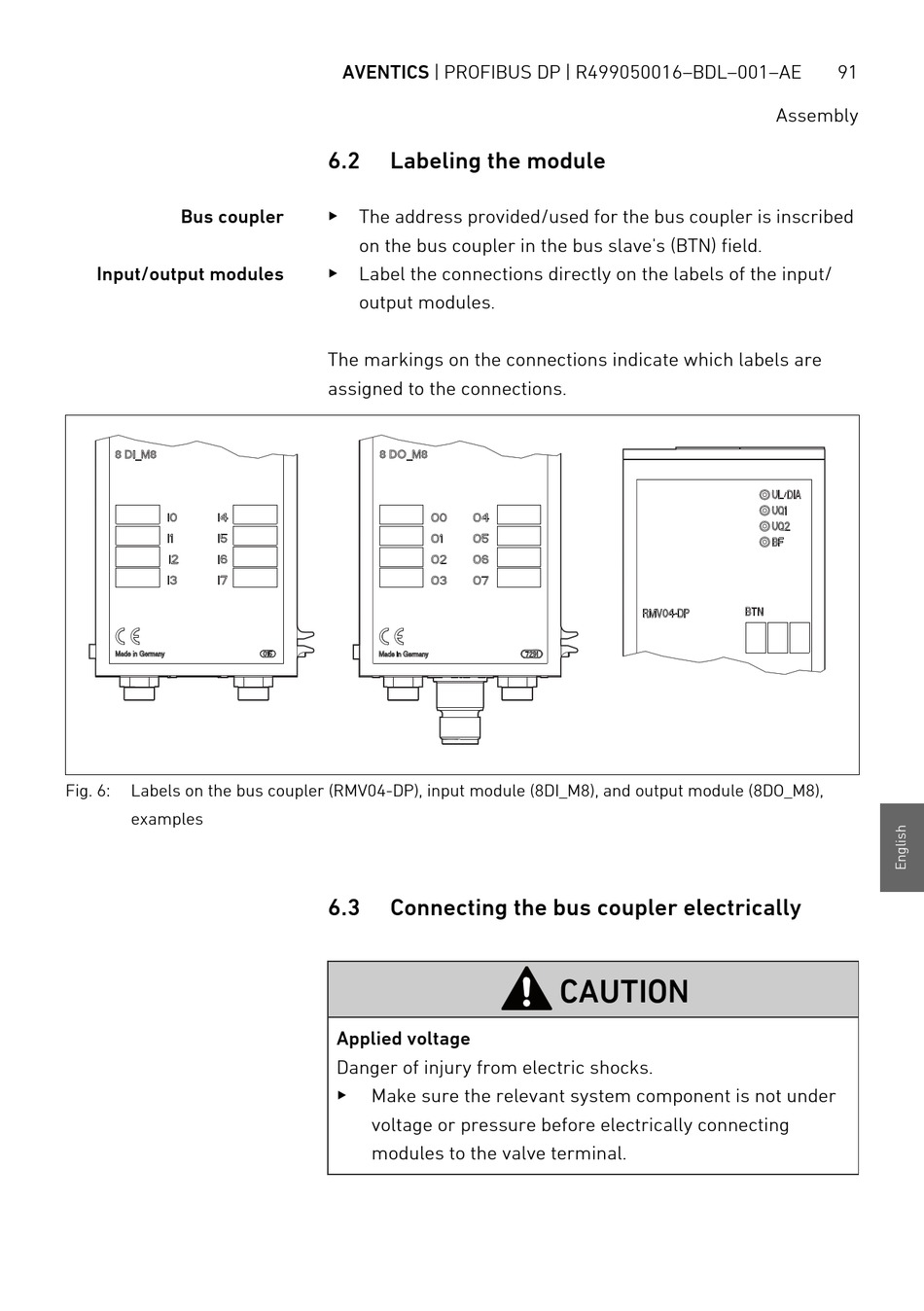

Fig. 6: Labels on the bus coupler (RMV04-DP), input module (8DI_M8), and output module (8DO_M8),
examples
AVENTICS | PROFIBUS DP | R499050016–BDL–001–AE
6.2

Labeling the module

O
The address provided/used for the bus coupler is inscribed
on the bus coupler in the bus slave's (BTN) field.
O
Label the connections directly on the labels of the input/
output modules.
The markings on the connections indicate which labels are
assigned to the connections.
6.3

Connecting the bus coupler electrically

Applied voltage
Danger of injury from electric shocks.
O
Make sure the relevant system component is not under
voltage or pressure before electrically connecting
modules to the valve terminal.
CAUTION
91
Assembly
