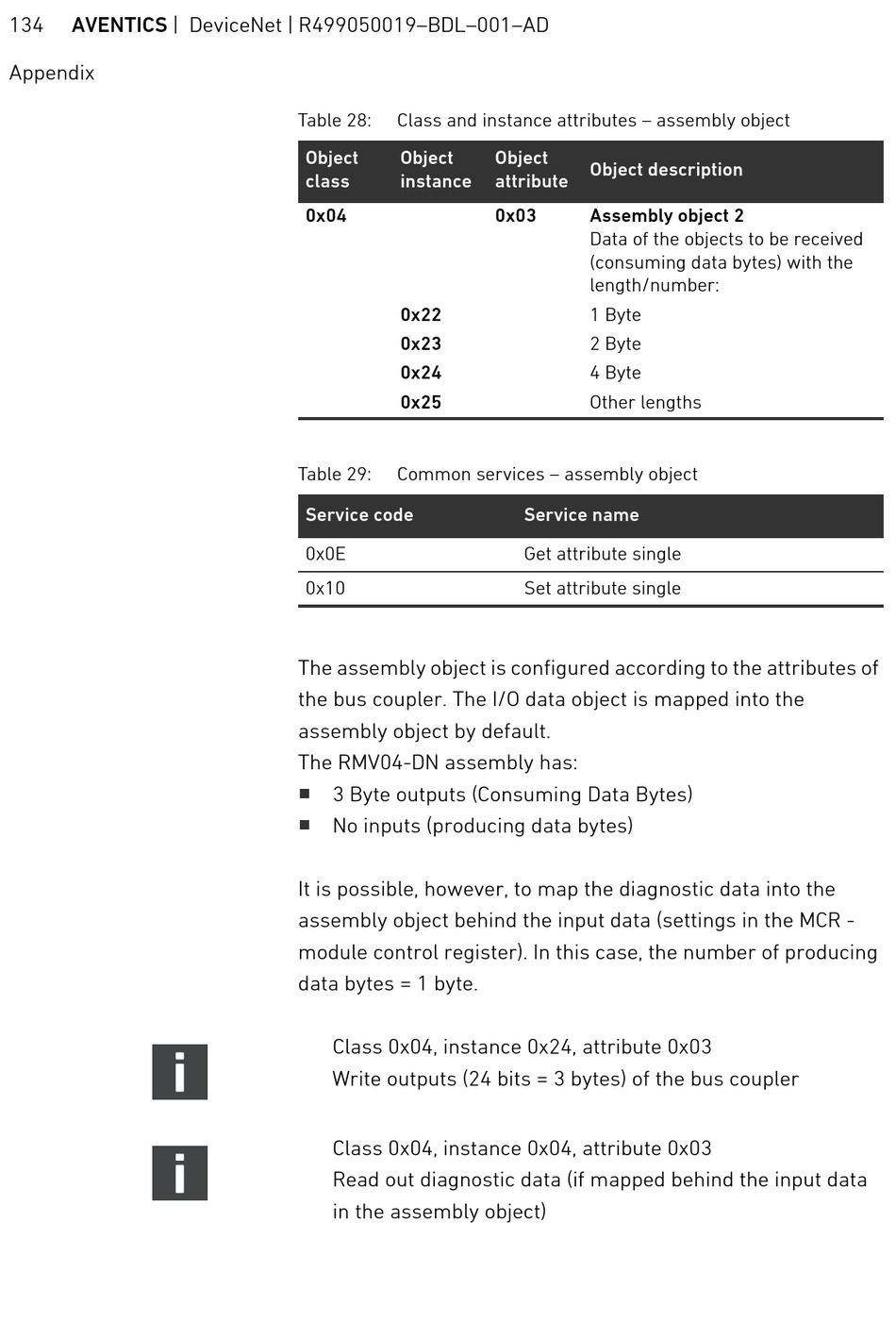

134 AVENTICS | DeviceNet | R499050019–BDL–001–AD
Appendix
Table 28: Class and instance attributes – assembly object
Object Object
class instance
0x04
0x22
0x23
0x24
0x25
Table 29: Common services – assembly object
Service code
0x0E
0x10
The assembly object is configured according to the attributes of
the bus coupler. The I/O data object is mapped into the
assembly object by default.
The RMV04-DN assembly has:
W
3 Byte outputs (Consuming Data Bytes)
W
No inputs (producing data bytes)
It is possible, however, to map the diagnostic data into the
assembly object behind the input data (settings in the MCR -
module control register). In this case, the number of producing
data bytes = 1 byte.
Class 0x04, instance 0x24, attribute 0x03
Write outputs (24 bits = 3 bytes) of the bus coupler
Class 0x04, instance 0x04, attribute 0x03
Read out diagnostic data (if mapped behind the input data
in the assembly object)
Object
Object description
attribute
0x03 Assembly object 2
Data of the objects to be received
(consuming data bytes) with the
length/number:
1 Byte
2 Byte
4 Byte
Other lengths
Service name
Get attribute single
Set attribute single
