Diagnostic status
Configuration length,
configuration data
Diagnostic data class
0x65 inst. 0x02 attr. 0x66
AVENTICS | DeviceNet | R499050019–BDL–001–AD
W
0x00 no active diagnosis
W
0x01 diagnosis is ready (group diagnosis flag)
With the assembly, these objects do not have a function. The
following values are produced when reading out:
W
Configuration length = 0x01 byte
W
Configuration data = 0x00
The diagnostic data object can be mapped in the assembly
object behind the input data. The parameter data and device
parameter data objects function as a diagnostic filter.

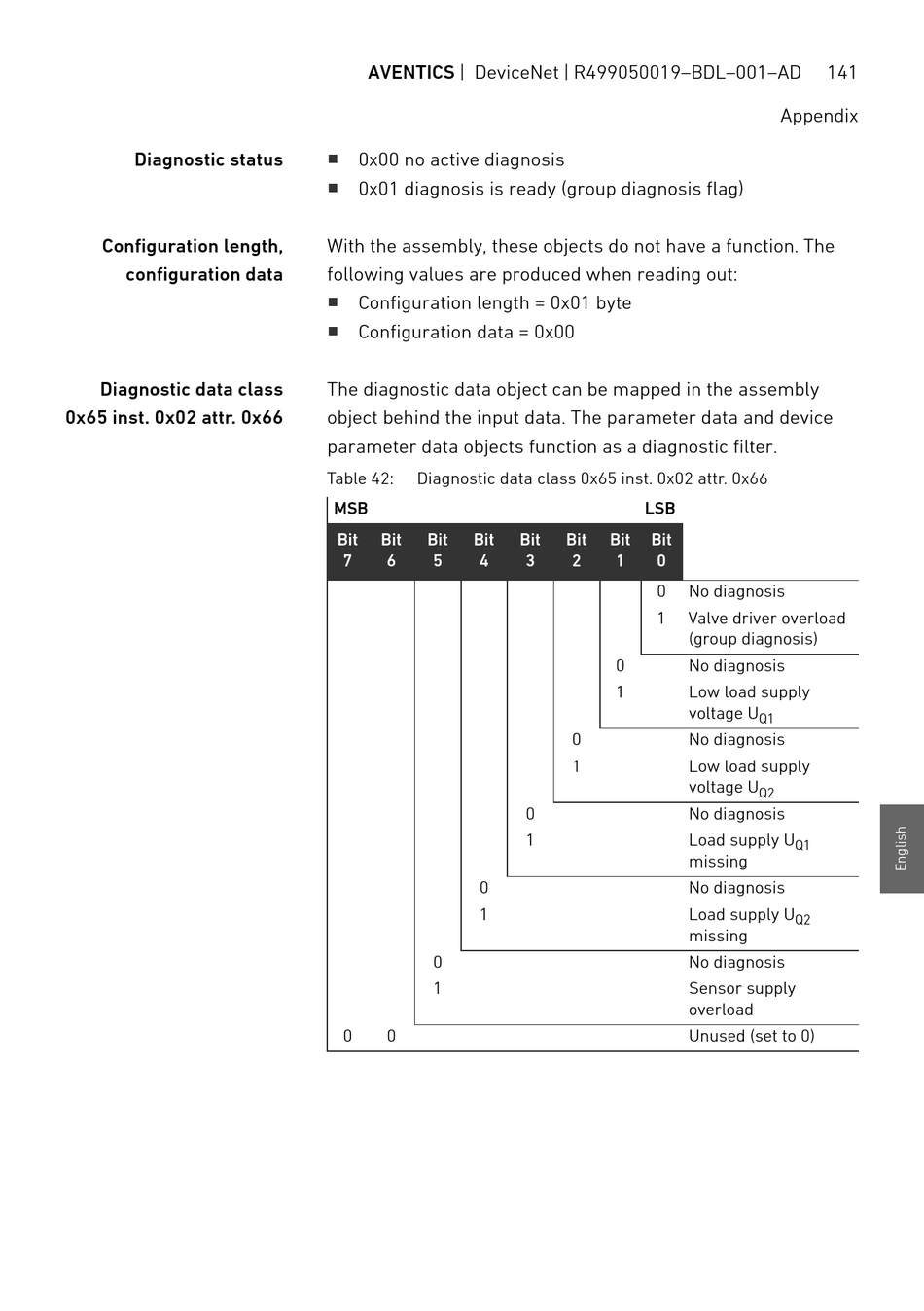

Table 42: Diagnostic data class 0x65 inst. 0x02 attr. 0x66
MSB
Bit Bit Bit Bit
7 6 5 4
0
1
0
1
0 0
LSB
Bit Bit Bit Bit
3 2 1 0
0 No diagnosis
1 Valve driver overload
(group diagnosis)
0 No diagnosis
1 Low load supply
voltage U
0 No diagnosis
1 Low load supply
voltage U
0 No diagnosis
1 Load supply U
missing
No diagnosis
Load supply U
missing
No diagnosis
Sensor supply
overload
Unused (set to 0)
141
Appendix
Q1
Q2
Q1
Q2
