Disassembly and Exchange
1
2

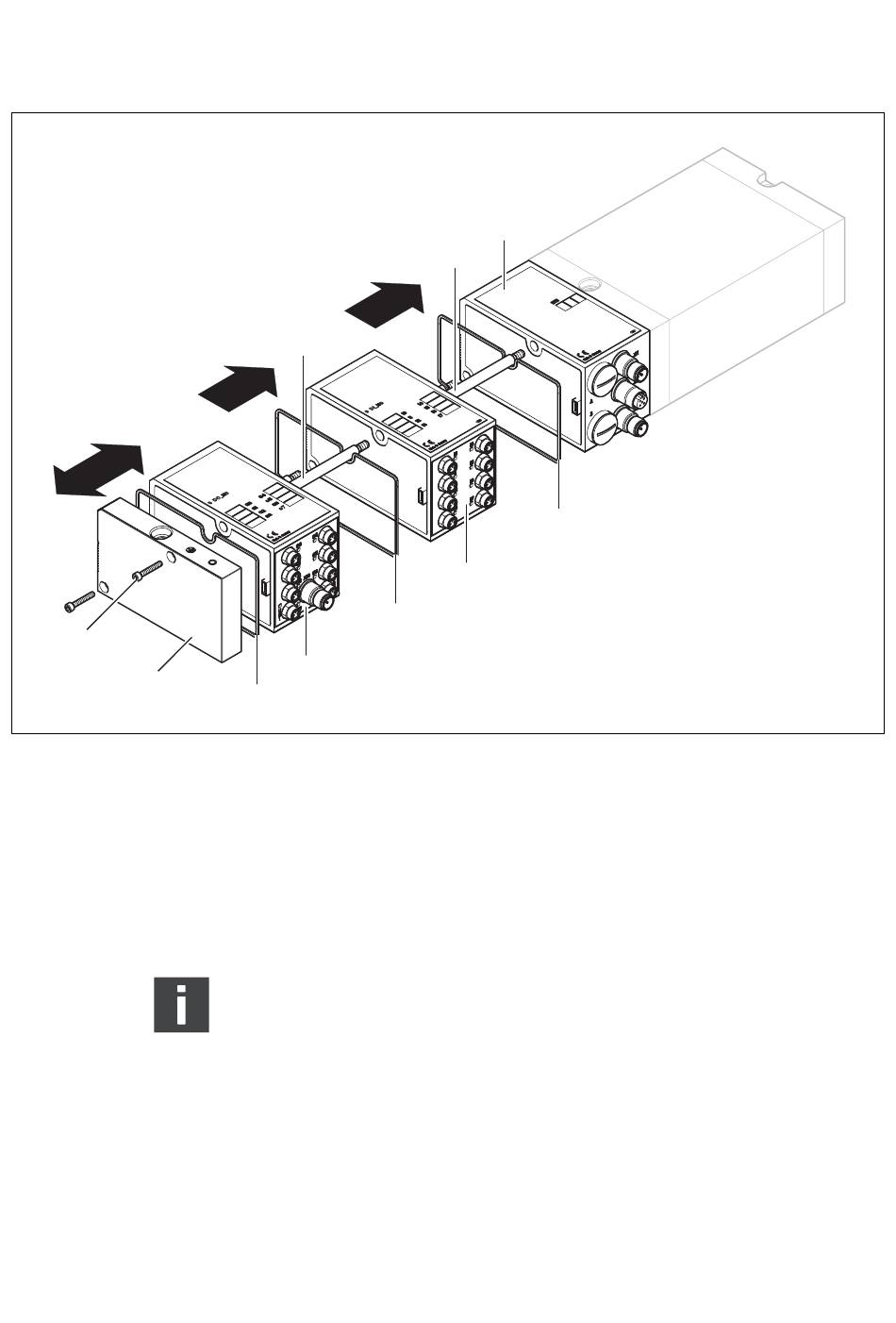

Fig. 14: Mounting input/output module, example with VS HF03 LG (A) and VS HF04 (B)
1 Hexagonal socket-head screws
2 E end plate
3 Seal
4 Output module
6
3
4
3
A maximum of 6 modules (input or output) may be mounted
on one valve system. Observe the permissible current load.
See Fig. 14 on page 124.
1. Unscrew the E end plate (2) from the bus coupler (7) or from
the last input (5) or output module (4) of the valve system
(2 hexagonal head-socket screws DIN 912 – M4 (1), wrench
size 3) and remove from the tie rods (6).
2. Screw the tie rods (6) for the input (5) or output modules (4) on
the existing tie rods (6) (2 per input (5) or output module (4)).
– Ensure that the tie rods (6) are flush with the surface!
7
6
3
5
5 Input module
6 Tie rod
7 Bus coupler
