ECOLAB EcoAdd Betriebsanleitung Seite 286

Control/software
[Choosing/setting Operating mode] [Current]
Example:
Input signal 4–20 mA = metering capacity 0–100%
2
10

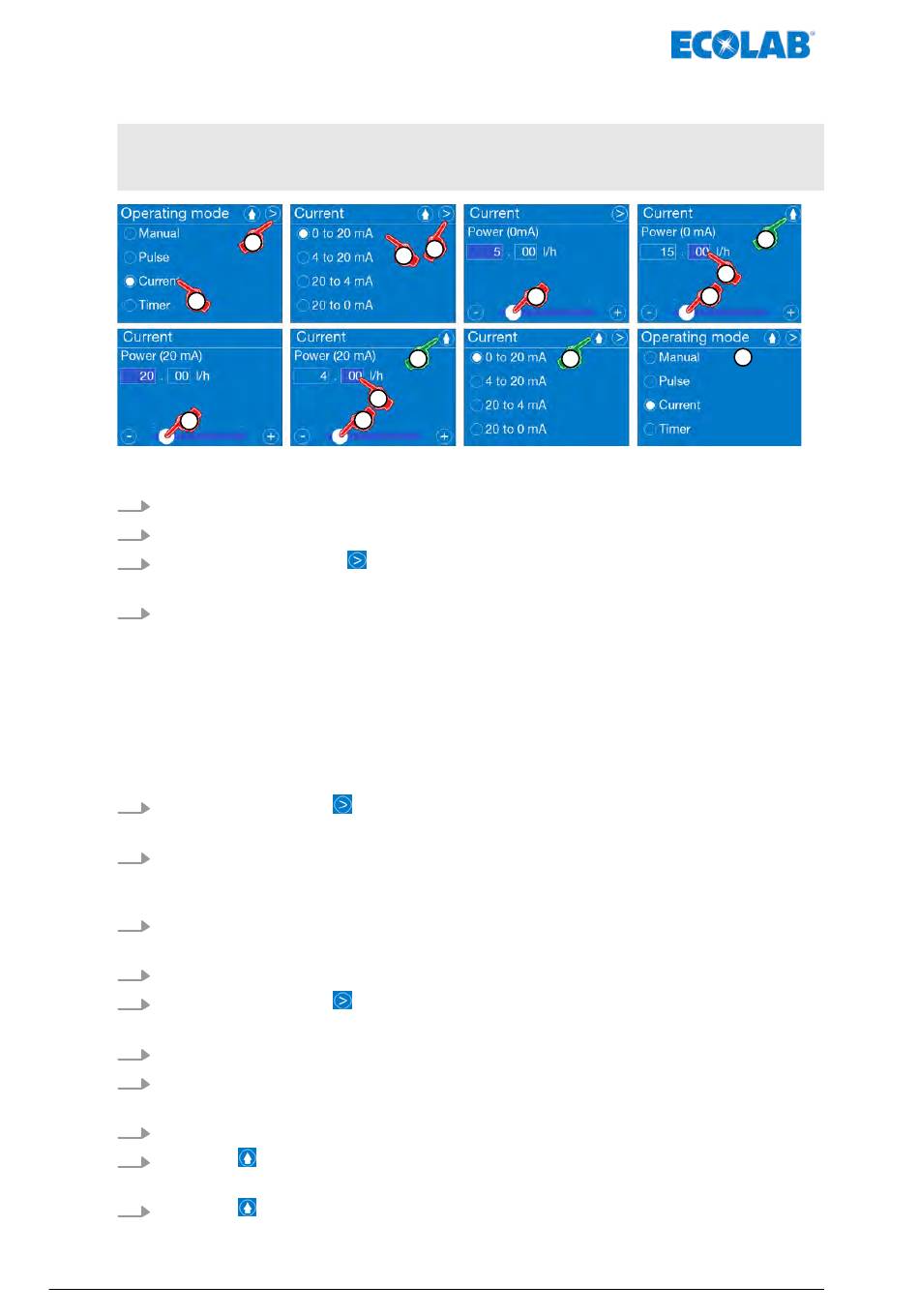

Fig. 33: Operating mode: Current
1.
[Call the main menu]:
2.
[Select Operating mode] [Current].
3.
[ Press the Next button]
ð The screen changes to the current setting.
4.
'Select a current range' :
0 to 20 mA (< 0.2 mA = 0% metering capacity, > 19.8 mA = 100% metering
n
capacity)
4 to 20 mA (< 4.2 mA = 0% metering capacity, > 19.8 mA = 100% metering
n
capacity)
20 to 4 mA (> 19.8 mA = 0% metering capacity, < 0.2 mA = 100% metering
n
capacity)
20 to 0 mA (> 19.8 mA = 0% metering capacity, < 0.2 mA = 100% metering
n
capacity)
5.
Press the Next button
ð Screen change for setting the min. metering capacity.
6.
'Use the slider to set mA' to the left of the decimal point.
Lower setting value + 0.2 mA = 0 % metering capacity
Upper setting value – 0.2 mA = 100 % metering capacity
7.
Select the field for entering the value after the decimal point.
ð The colour changes to dark blue, which indicates that the field is ready for input.
8.
Use the slider to set the value after the decimal point.
9.
Press the Next button
ð Screen change for setting the max. metering capacity.
10.
'Use the slider to set mA' to the left of the decimal point.
11. Select the field for entering the value after the decimal point.
ð The colour changes to dark blue, which indicates that the field is ready for input.
12. Use the slider to set the value after the decimal point.
13. Press the
ð Save settings, change screen: [Current].
14. Press the
MAN046939 Rev. 6-10.2021
3
4
13
11
12
Ä Chapter 8.5 'Main menu' on page 63
.
.
.
button.
button to return to the menu: [Operating mode].
5
6
14
82
9
8
7
15
