ECOLAB EcoAdd Betriebsanleitung Seite 382

Wearing parts, spare parts and accessories
Pump head 30 l/h and 50 l/h [PVDF]
1
2

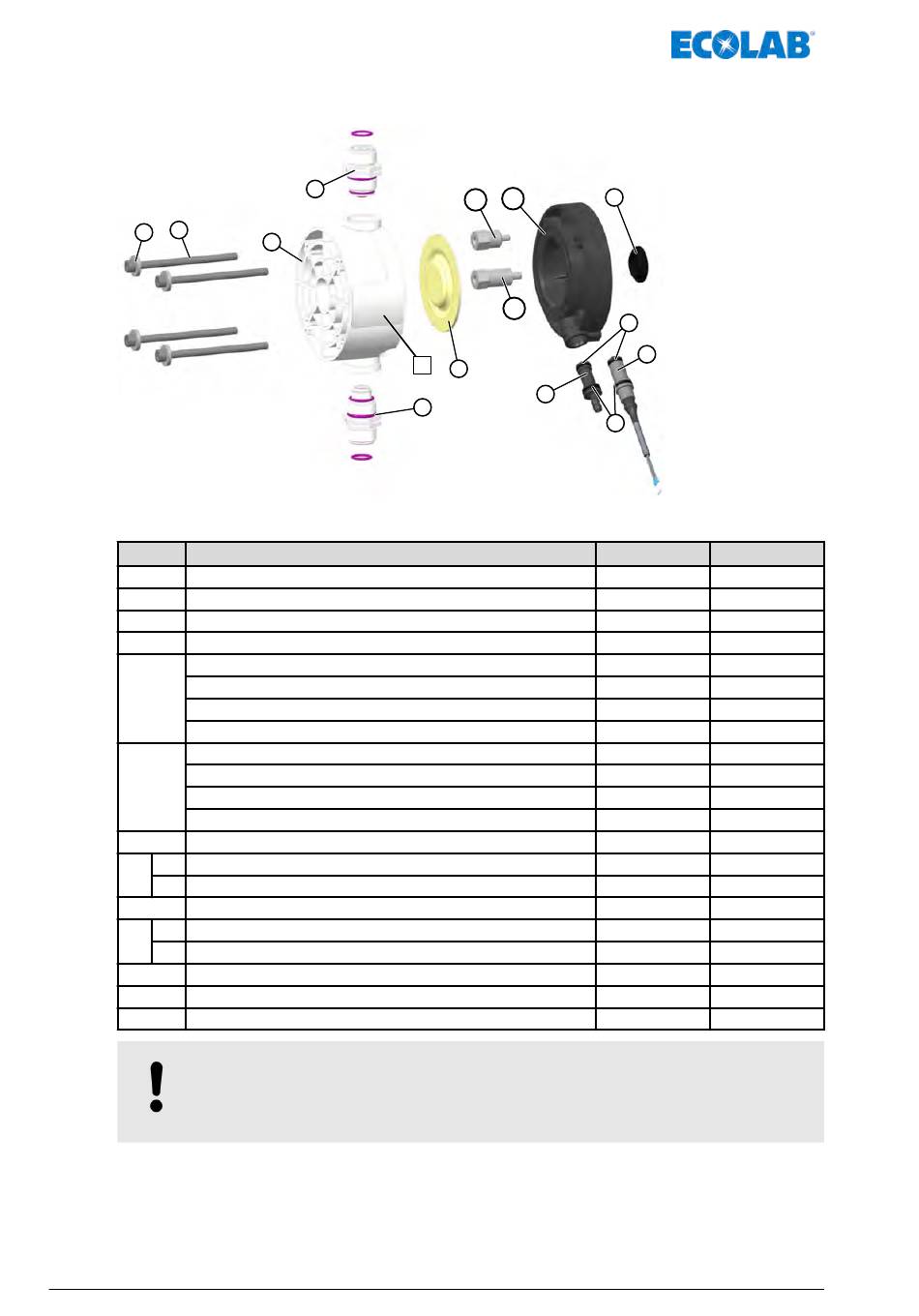

Fig. 101: Spare part sub-assembly: Pump head 30 l/h and 50 l/h
Item Description
A Adhesive label for commissioning / tightening torque (6 Nm)
1 Hexagon socket screw, M 6 x 90, DIN 912, V2A
2 Washer, 17 x 6.4 x 3 DIN 7349 V2A
3 Pump head, 30/50 l/h, PVDF
Suction valve, PFC-000 G5/8-G5/8-99
Suction valve, PEC-000 G5/8-G5/8-99
4
Suction valve, DFC-000 G5/8-G5/8-99
Suction valve, DEC-000 G5/8-G5/8-99
Pressure valve, PFC-000 G5/8-G5/8-99
Pressure valve, PEC-000 G5/8-G5/8-99
5
Pressure valve, DFC-000 G5/8-G5/8-99
Pressure valve, DEC-000 G5/8-G5/8-99
6 Diaphragm
a Diaphragm extension, 30 l/h
7
b Diaphragm extension, 50 l/h
8 Intermediate plate
a Discharge nozzle, 30/50/120 l/h
9
b Diaphragm breakage sensor
10 O-ring, 10 x 2 70 EPDM 291
11 O-ring, 9 x 1.5 70 EPDM
12 Protective diaphragm
NOTICE!
You must observe the tightening torques on the pump head. (See also
Ä Tightening torque of suction/pressure valves ).
MAN046939 Rev. 6-10.2021
5
3
A
4
178
12
8
7a
7b
11
6
9a
10
