Assembly and connection

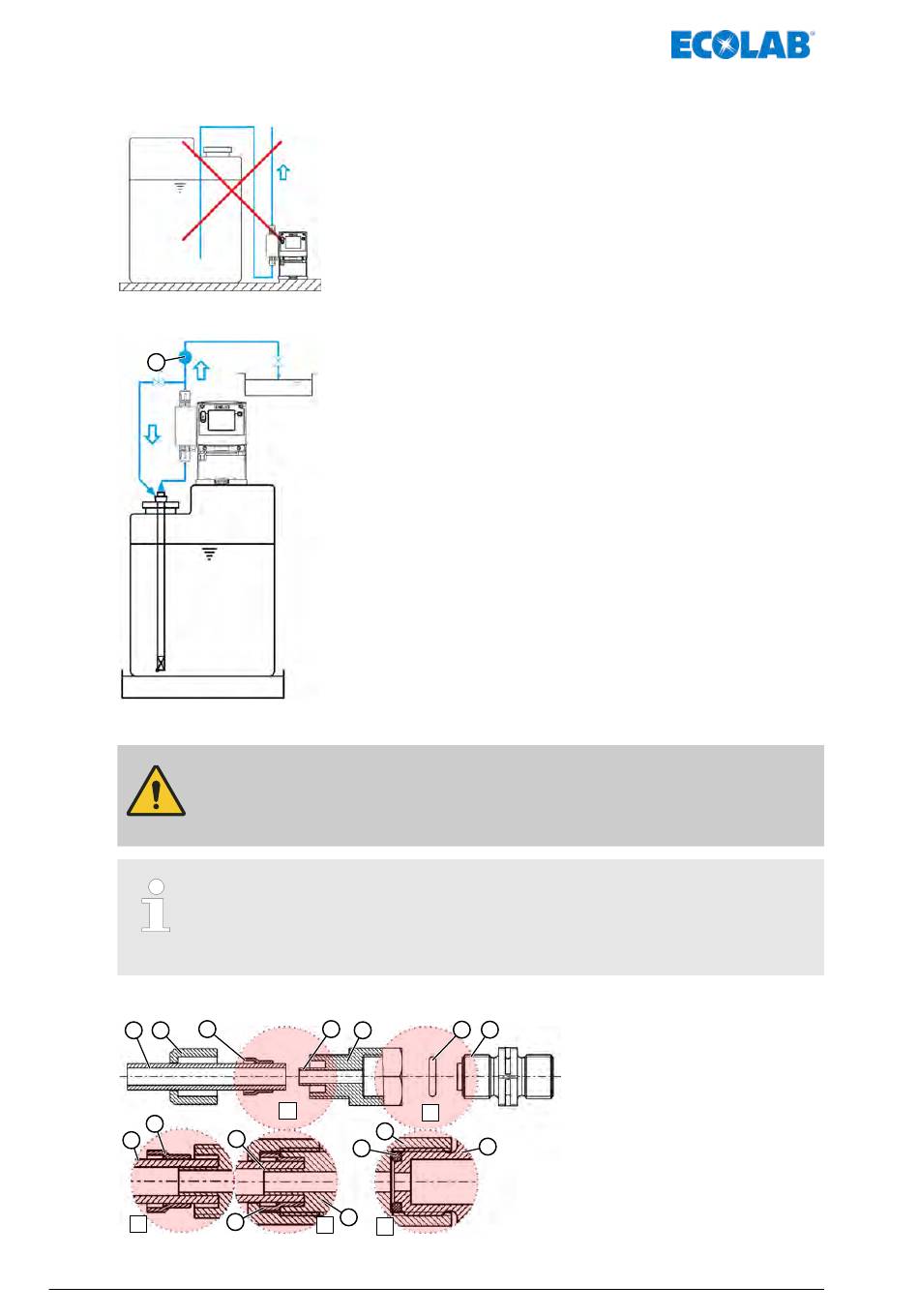

Installation example 6
Installation example 7
1
Connection of the suction and pressure tubes (dosing lines)
CAUTION!
When connecting the suction and charge pipe, make sure that the O-rings are
mounted on the connections in order to achieve the necessary sealing.
To protect the metering system, we strongly recommend the use of a suction
lance with an empty signal system and mud guard from our accessory
programme. The empty signal feature causes the pump to cut off if the medium
in the container drops below a certain level.
Hose connection with support sleeve and clamping ring
3
1 2
3
1
A1
MAN046939 Rev. 6-10.2021
The suction line must always be installed sloping upwards towards the
metering pump.
A metering monitoring instrument, such as an oval gear motor (item 1) or
flow monitor, must be installed into the metering line downstream of the
overflow valve and upstream of a pressure control valve or metering valve.
4
5
A
2
4
6
5
3
A2
B1
6 7
1
2
3
4
5
B
6
7
7
A
B
46
Pipe or hose connection
Union nut
Clamping ring
Slip-on bushing
Female connector
O-ring
Suction valve, pressure valve
Pipe or hose connection
Valve connection
