Control/software
Choosing/setting[Pulse] [operating mode]
1 1
1

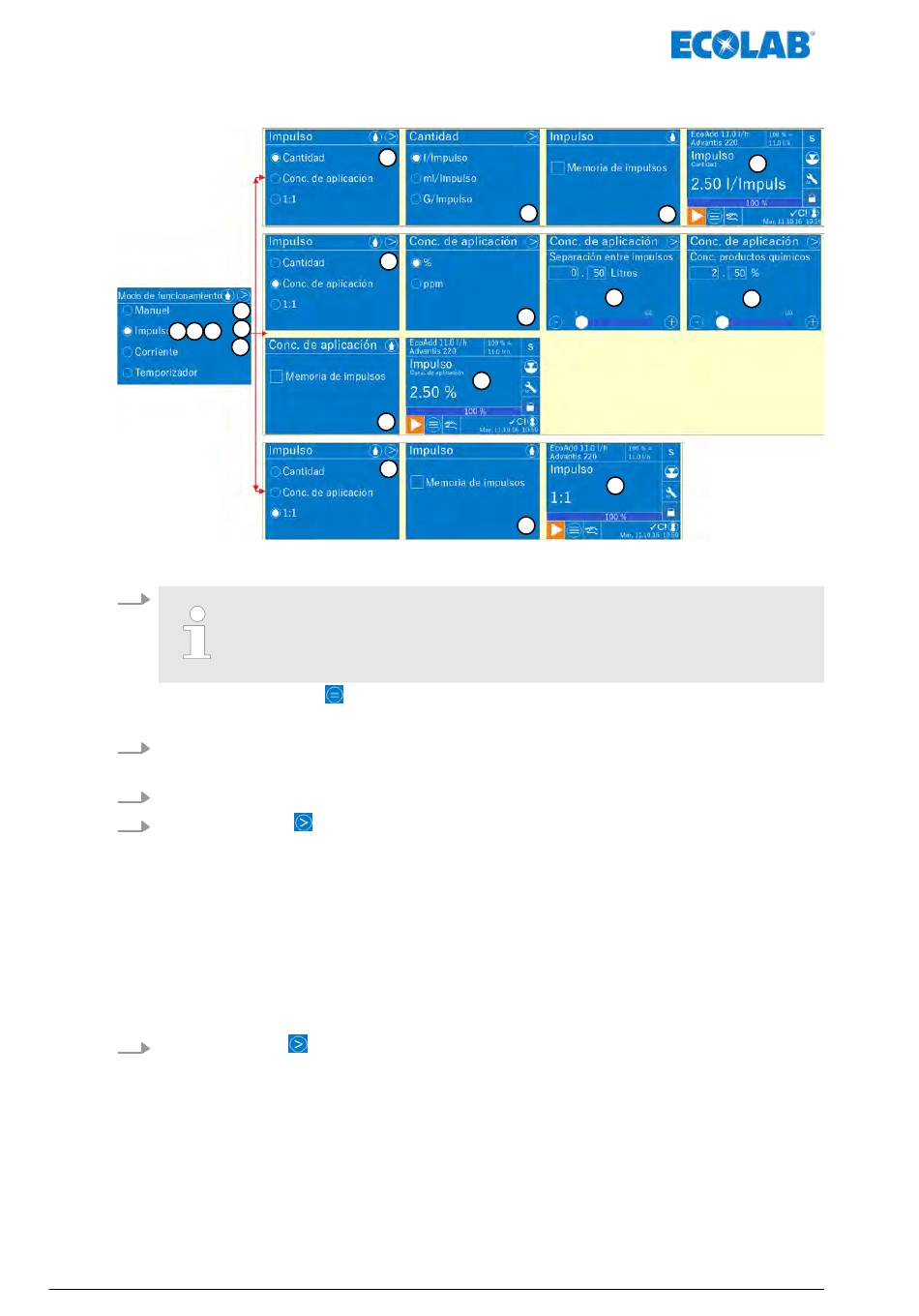

Fig. 25: [Pulse] [operating mode] overview
1.
[Call the Main menu]
ð The 'Main menu' screen is displayed.
2.
[Select Operating mode].
ð Screen switches to the [Operating mode] selection level.
3.
[Select Pulse] (item 1).
4.
[ Press the Next]
ð The screen for selecting 'pulse processing' is displayed.
You can select the following 'pulse processing' variants:
[Quantity] (item 4)
n
Ä '[Selecting/setting Operating mode] [Pulse] [Quantity]' on page 73
n [Application conc.] (Application concentrate, item 3)
Ä ' [Selecting/setting Operating mode] [Pulse] [Batch concentration] '
on page 75
n [1:1] (item 5)
Ä '[Selecting/setting Operating mode] [Pulse] [1:1]' on page 80
5.
[Press the Next]
ð The screen for the selected 'pulse processing' is displayed.
MAN046939 Rev. 6-10.2021
3
3
2
2
2
7
3
When using [Quantity] or [Application concentration] pulse processing,
the frequency of the incoming pulses must not exceed 15 Hz. For pulse
processing 1:1, the permitted frequency is max. 2 Hz.
Ä Chapter 8.5 'Main menu' on page 63
:
button (item 2).
button (item 3).
4
4
8
4
72
