Dosing controller
When using the "Dosing controller" function, the metered quantity is measured via the oval
gear meter connected for dosing monitoring. If the measured flow rate deviates from the
dosage rate set at the pump, the dosing speed of the pump is automatically adjusted via a
control algorithm.
The "Dosing controller" menu item can only be selected if an oval gear
meter is connected to the input provided for this purpose (see
7.2.2 'Electrical installation' on page 49 ).
3
4

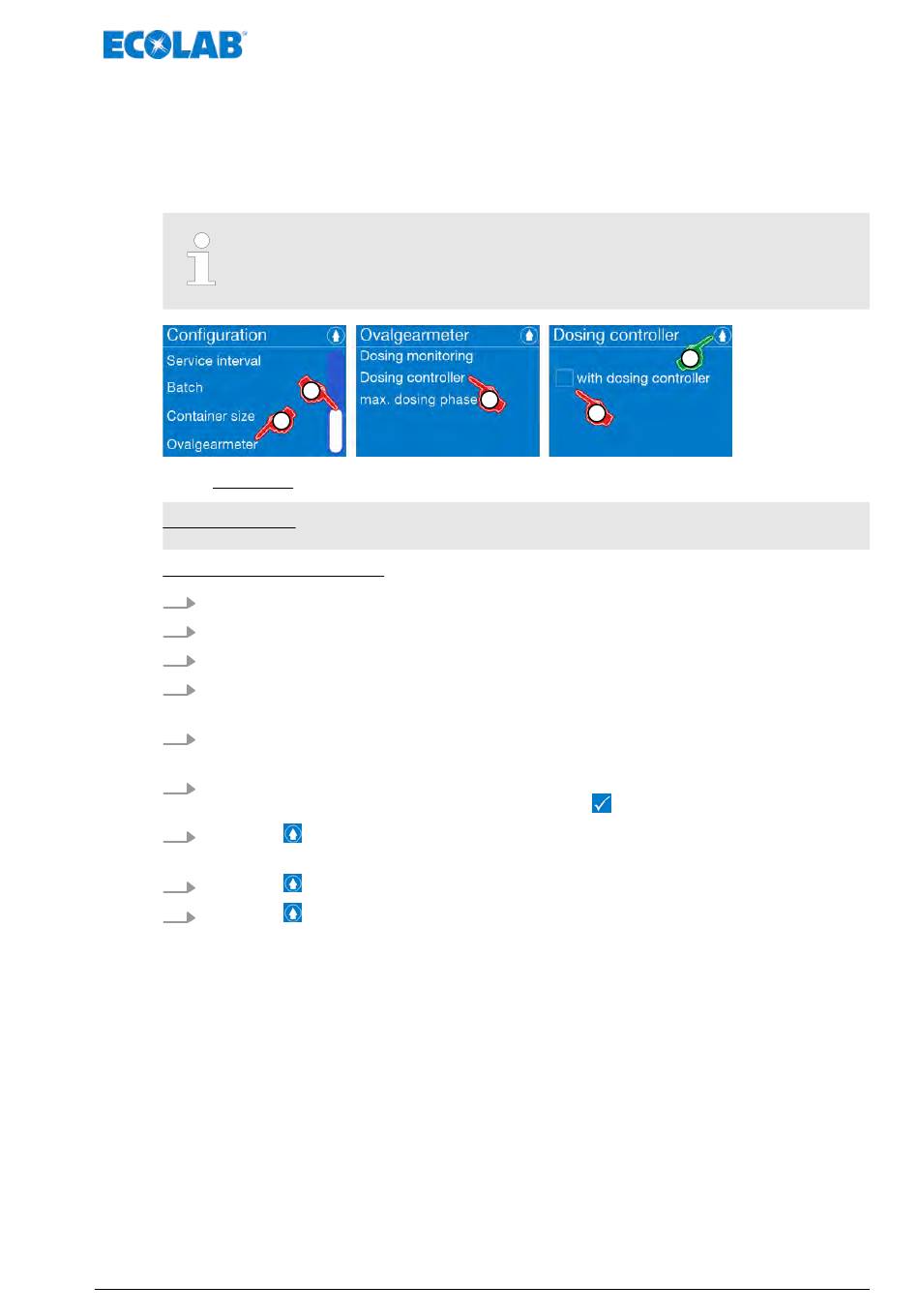

Fig. 64: Configuration: Dosing controller
Factory setting: No metering controller
[Select Dosing controller]:
1.
[Call the Main menu]:
2.
[Select Configuration]:
3.
Use the scrollbar to scroll to the [Oval gear meter] menu item.
4.
[Select Oval gear meter]
ð The screen switches to the [Oval gear meter] selection.
5.
[Select Dosing controller].
ð The screen changes to the setting: [Dosing controller]
6.
If required, select the 'With metering controller' selection box.
ð The 'with metering controller' selection box is
7.
Press the button.
ð The setting is saved, and the screen switches back to the configuration overview.
8.
Press the button to return to the [Main menu].
9.
Press the button to return to the [Operating display].
