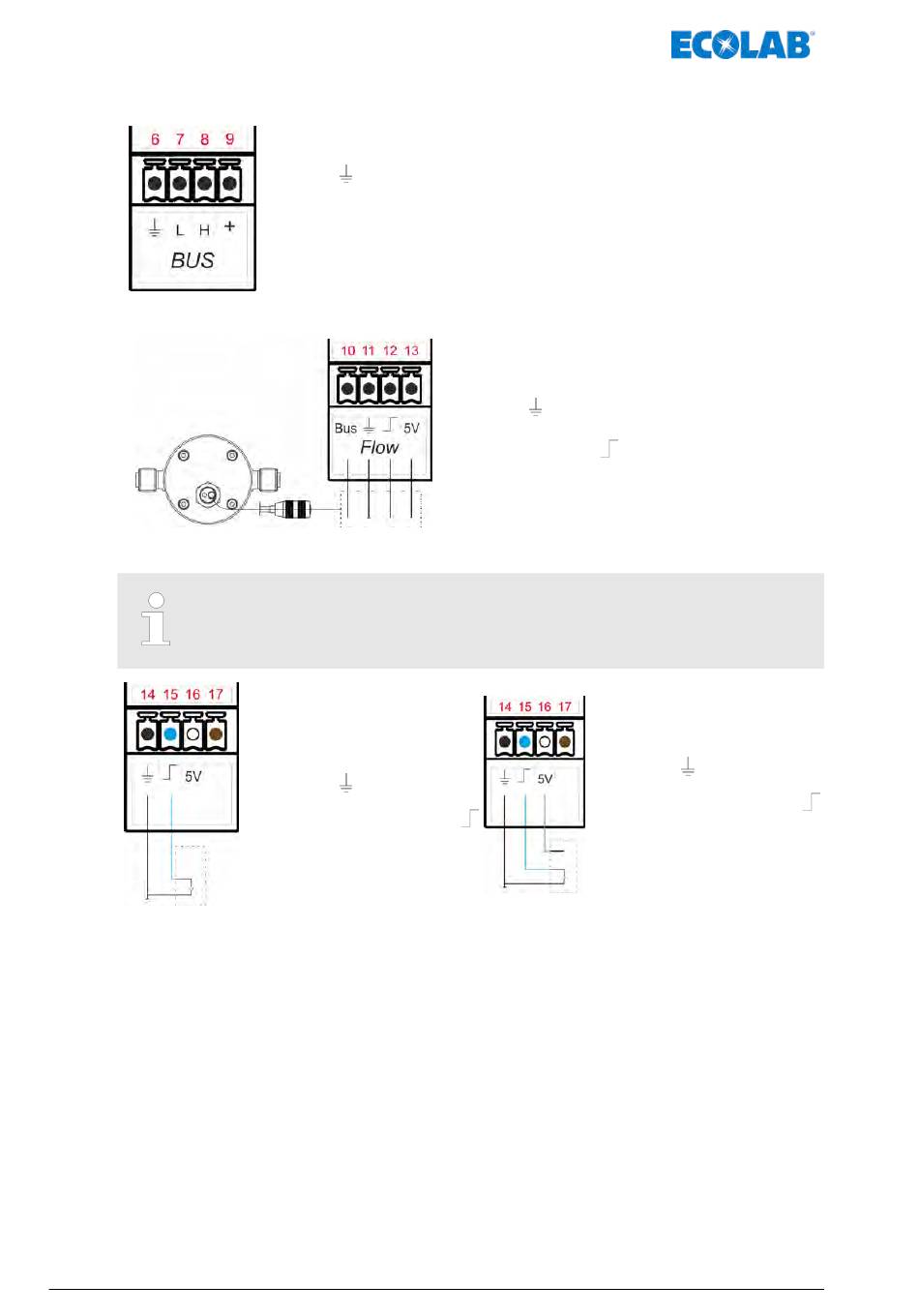

Assembly and connection
[BUS] BUS signal
[Flow] Dosing monitoring - oval gear meter OGM
[Diaphragm] Diaphragm breakage monitoring
For the software configuration, see:
Ä Chapter 8.8.16 'Diaphragm breakage' on page 123
MAN046939 Rev. 6-10.2021
6 = GND
7 = CAN L
8 = CAN H
9 = 24 V
Input with zero-potential contact
14 GND
n
Colour: Black
15 Diaphragm break signal
n
Colour: Blue
52
PLUS
10 = Bus (oval gear meter)
Colour: White
11 = GND
Colour: Blue
12 = Flow monitoring
Colour: Black
13 = 5 volt
Colour: Brown
Electronic switch (NPN)
14 GND
n
Colour: Black
15 Diaphragm break signal
n
Colour: Blue
16 5 V, DC
n
Colour: White
