Conversion, upgrade, repair
14.3 Repair
Replacing the control unit

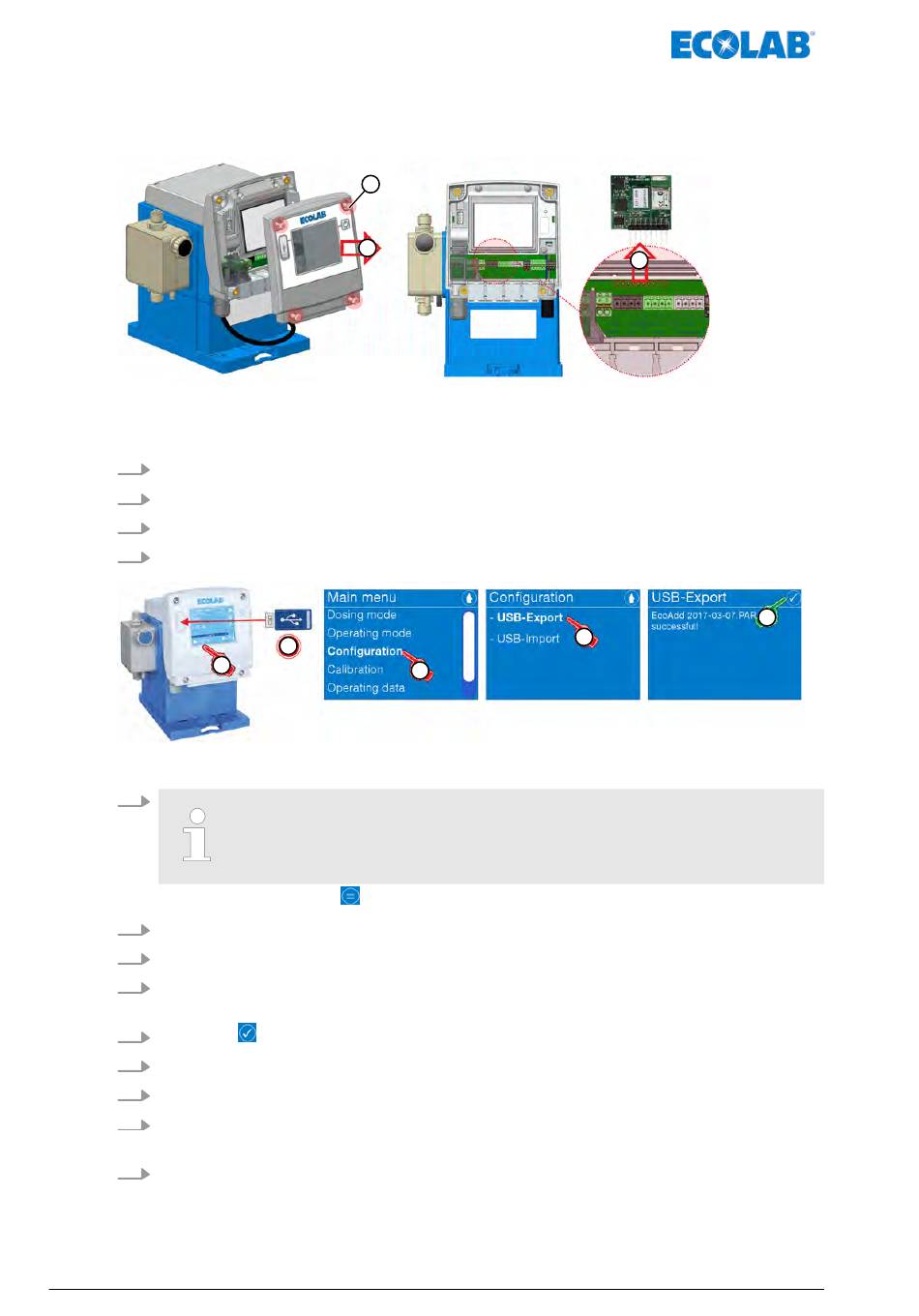

Fig. 107: Replacing the control unit
Remove the Bluetooth PCB
1.
Unfasten cover screws (x 4) using a Torx wrench (TX25).
2.
Remove the lid forwards.
3.
Remove the Bluetooth PCB from the slot.
4.
Fit the Bluetooth PCB into the new control unit.
2
Create a backup and import back onto the new control unit following conversion
1.
Press the Menu button
2.
Insert the USB stick containing the configuration into the USB port on the pump.
3.
In the [Main menu], select [Configuration].
4.
[Select USB export].
ð An export file (*.PAR) is copied to the USB stick.
5.
Press the
6.
Remove the USB stick from the USB port.
7.
Switch off the pump and disconnect from the mains.
8.
Replace the control unit as described in
on page 186 .
9.
Import the configuration back to the new control unit.
MAN046939 Rev. 6-10.2021
1
2
1
Ä 'Replacing the control unit' on page 186
See also chapter
.
button.
4
3
Ä
'Replacing the control unit'
186
