AVENTICS | PROFIBUS DP | R499050016–BDL–001–AE
6

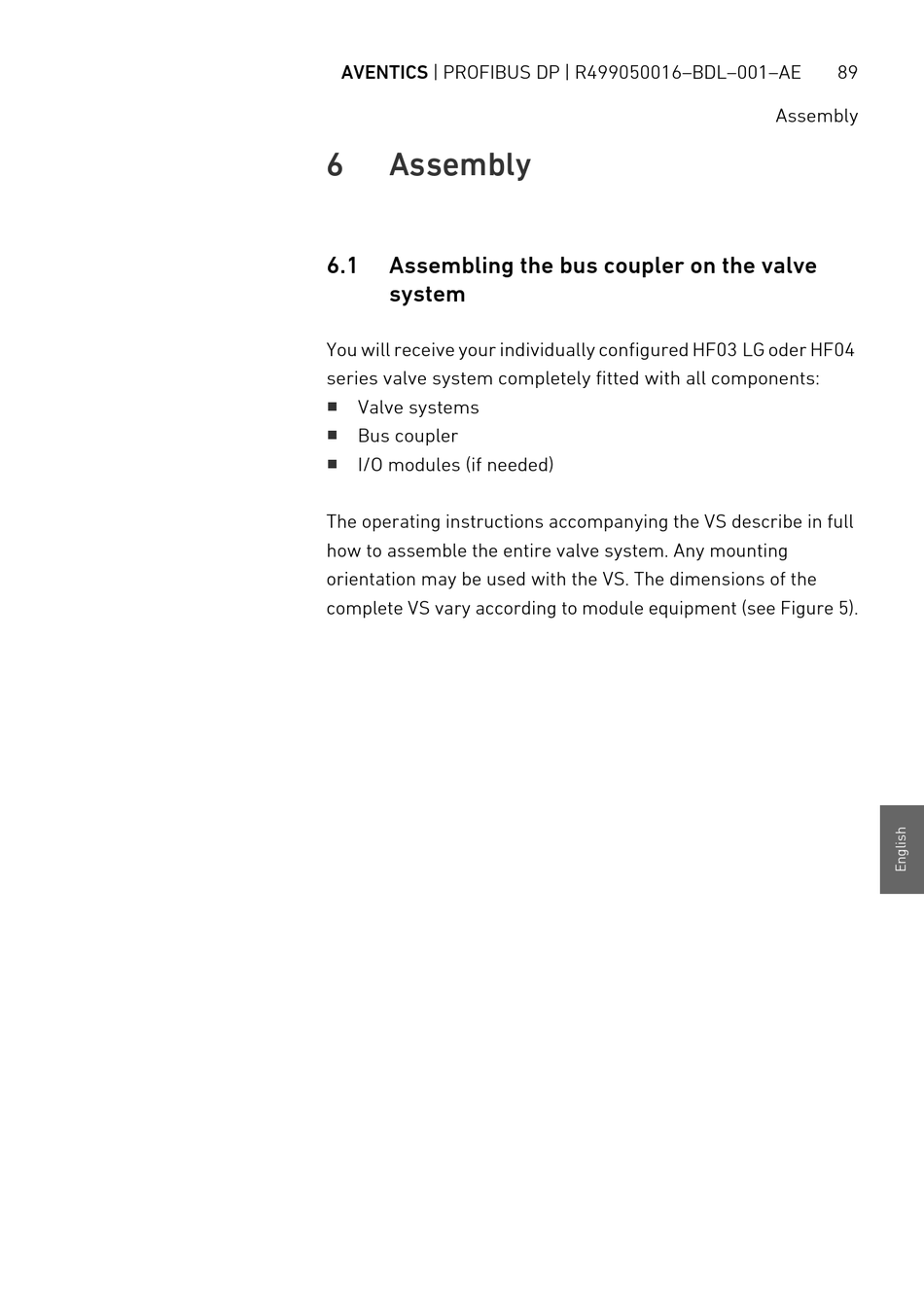

Assembly

6.1 Assembling the bus coupler on the valve
system
You will receive your individually configured HF03 LG oder HF04
series valve system completely fitted with all components:
W
Valve systems
W
Bus coupler
W
I/O modules (if needed)
The operating instructions accompanying the VS describe in full
how to assemble the entire valve system. Any mounting
orientation may be used with the VS. The dimensions of the
complete VS vary according to module equipment (see Figure 5).
89
Assembly
