12.3 Identifying the modules

12.3.1

Material number for bus coupler

The bus coupler can be clearly identified using its material number. When exchanging the bus
coupler, you can use the material number to reorder the same unit.

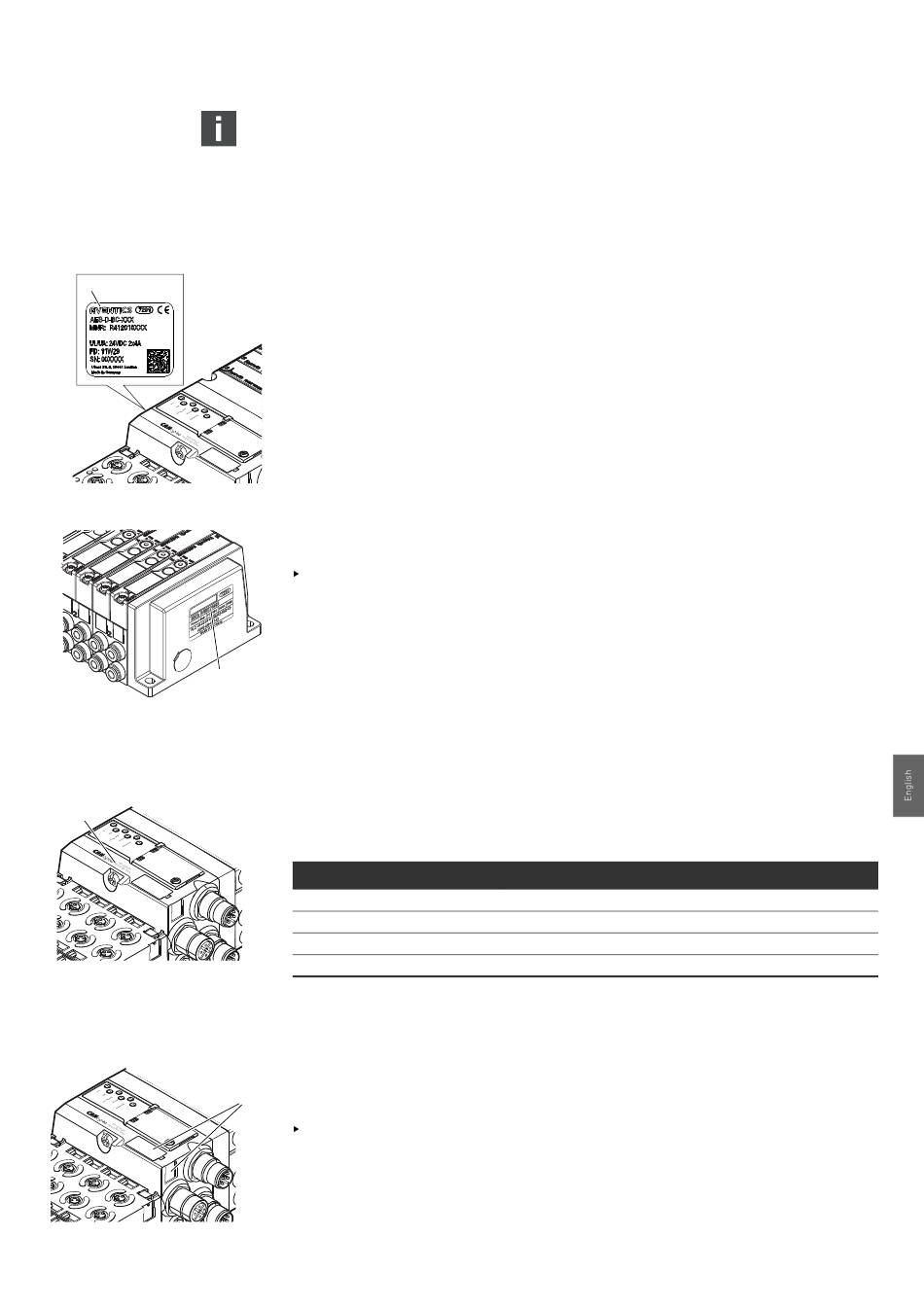

The material number is printed on the rating plate (12) on the back of the device and on the top below
the identification key. The material number for the AES series bus coupler for CANopen
is R412018220.
12.3.2

Material number for valve system

The material number for the complete valve system (46) is printed on the right end plate. You can
use this material number to reorder an identically configured valve system.
Note that, after a valve system conversion, the material number still refers to the original
configuration (see section 12.5.5 "Conversion documentation" on page 120).
12.3.3

Identification key for bus coupler

The identification key (1) on the top of the AES series bus coupler for CANopen is "AES-D-BC-CAN"
and describes the unit's main characteristics:
Table 21: Meaning of the identification key
Designation
AES
D
BC
CAN
12.3.4

Equipment identification for bus coupler

The bus coupler requires a unique ID to enable the clear identification of the unit within the system.
The two equipment identification fields (4) on the top and front of the bus coupler are available
for this purpose.
Label the two fields as shown in your system diagram.
Meaning
Module from the AES series
D design
Bus Coupler
For CANopen fieldbus protocol
