System A-100

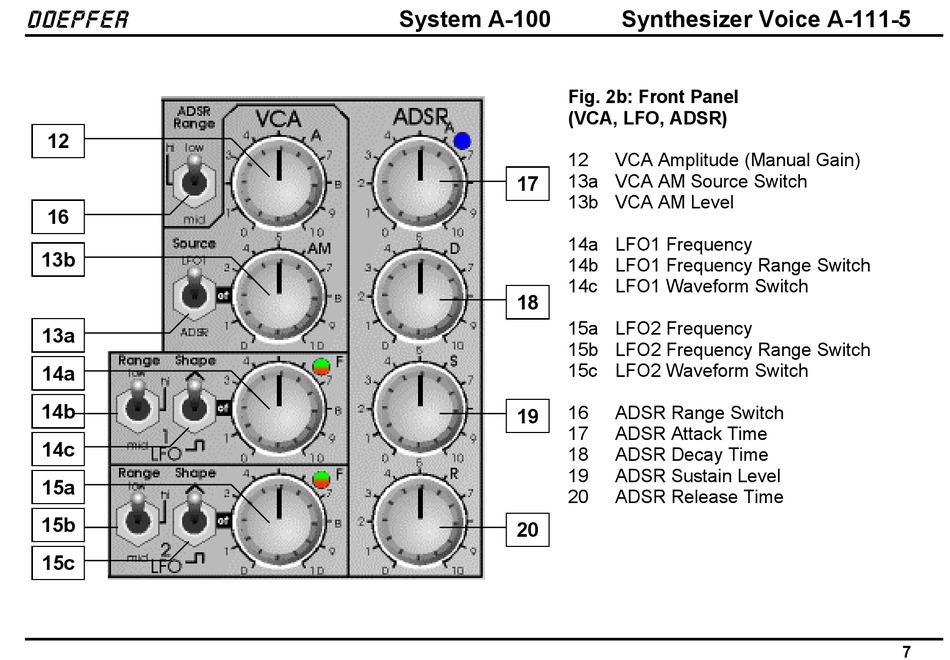

Fig. 2b: Front Panel
(VCA, LFO, ADSR)
12
13a VCA AM Source Switch
17
13b VCA AM Level
14a LFO1 Frequency
14b LFO1 Frequency Range Switch
14c LFO1 Waveform Switch
18
15a LFO2 Frequency
15b LFO2 Frequency Range Switch
15c LFO2 Waveform Switch
16
19
17
18
19
20
20
Synthesizer Voice A-111-5
VCA Amplitude (Manual Gain)
ADSR Range Switch
ADSR Attack Time
ADSR Decay Time
ADSR Sustain Level
ADSR Release Time
