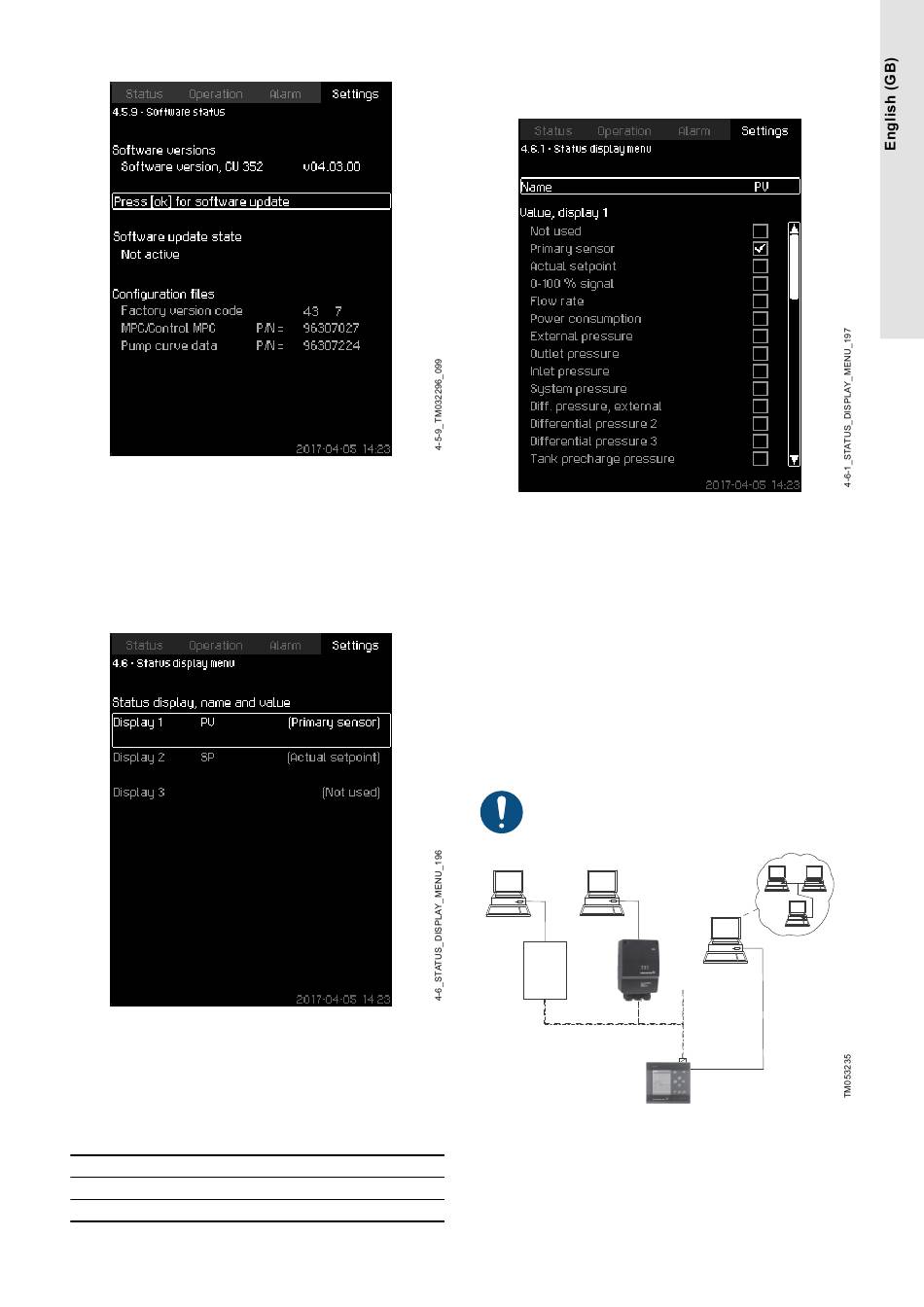

8.6.78 Software status (4.5.9)
Software status
Description
The display shows the status of the software installed in CU
352. Furthermore, the version code and the product numbers of
configuration files (GSC) read into the unit are shown. You can
also upgrade the software version. Contact Grundfos for further
information.
8.6.79 Status display menu (4.6)
Status display menu
Description
In the main status menu, you can have up to three status values
displayed.
In this menu, you can define each status value to be displayed and
define a short name for the value.
PV = Process Value
SP = Setpoint
Q = Flow
Setting range
Name of each display value.
Function type for Display 1-3.
Status display menu (4.6.1)
Setting via the operating panel
• Settings > Status display menu
1. Select display 1, 2 or 3, press [OK].
2. Define a name for display.
3. Select the value for the display 1, 2 or 3.
Factory settings
Display 1: PV, Primary sensor
Display 2: SP, Actual setpoint

8.7 Data communication

CU 352 is equipped with a hardware enabling communication with
external units, such as a computer, via an external GENIbus or
ethernet connection.
The product must only be connected to protected network
subnets with strict access control.
7
3
Data communication via external GENIbus and ethernet
connection
2
6 1
5
4
77
