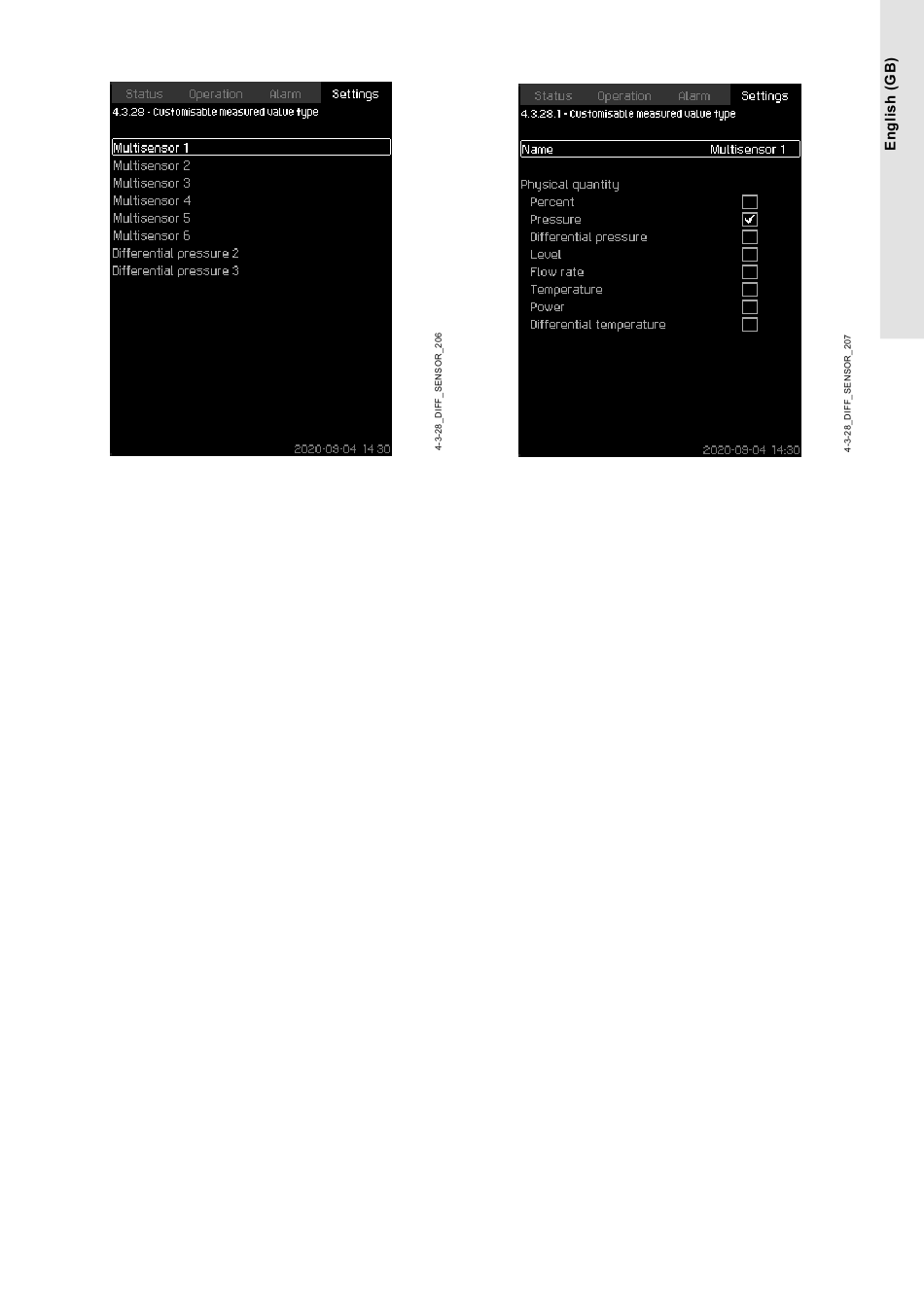

8.6.54 Customisable measured value type (4.3.28)
Customisable measured value type
Description
Up to 8 input value types can be customized in regard to name and
physical quantity.
Example
Multisensor 1
Multisensor 2
Multisensor 3.
Setting via the operating panel
• Settings > Secondary functions > Customisable measured
value type.
8.6.55 Customisable measured value type (4.3.28.1-8)
Customisable measured value type
Description
• Name: Configure the name for the measured value.
• Physical quantity: Set the type of physical values:
- Percent
- Pressure
- Differential pressure
- Level
- Flow rate
- Temperature
- Power
- Differential temperature.
Setting via the operating panel
• Settings > Secondary functions > Customisable measured
value type 1-8.
1. Set Name.
2. Select Physical quantity.
