Further settings
• Operation > Further settings.
Select one of the settings below:
• System operating mode, see section System operating mode
(2.1.1).
• Control mode, see section Control mode (2.1.2).
• Alternative setpoints, see section Alternative setpoints (2.1.3).
• Individual pump control, see section Pump 1-6 (2.1.4.1 -
2.1.4.6).
Factory settings
The setpoint is a value suitable for the system in question. The
factory setting may have been changed in the startup menu.
8.4.2 System operating mode (2.1.1)

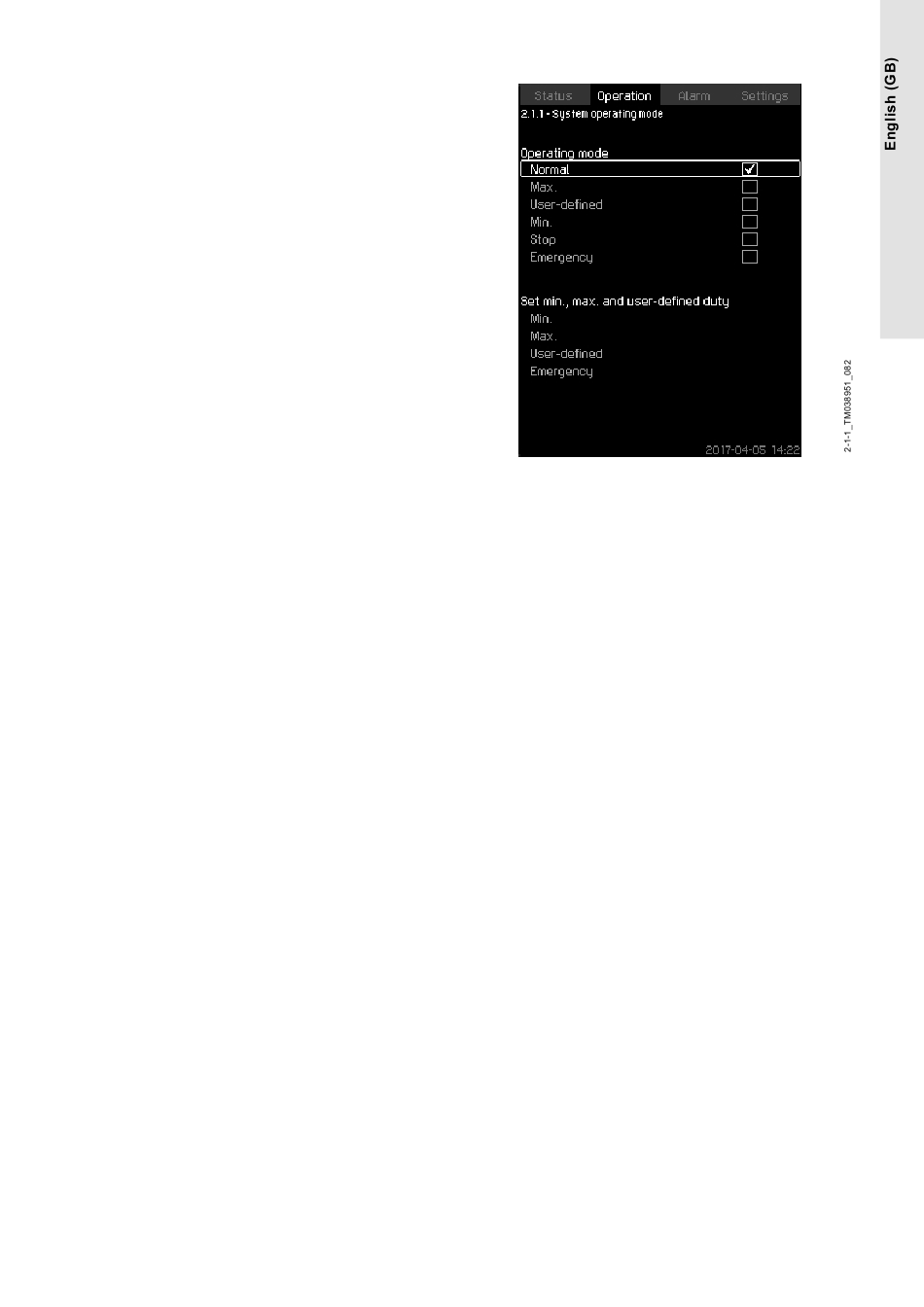

System operating mode
Description
The system can be set to six different operating modes. Normal is
the typical setting. See section Operating mode (1.2.1).
You can set the performance of the operating modes in this menu:
• Min.
• Max.
• User-defined
• Emergency.
Setting range
• Normal
• Max.
• Min.
• User-defined
• Stop
• Emergency.
Setting via the operating panel
• Operation > Further settings > System operating mode >
Operating mode.
Select the desired line at the bottom of the display to set the
performance for Max., Min., User-defined and Emergency. See
sections Emergency run (4.3.5) and Min., max. and user-defined
duty (4.3.14).
Factory settings
Normal.
Related information
8.3.3 Operating mode (1.2.1)
8.6.27 Emergency run (4.3.5)
8.6.38 Min., max. and user-defined duty (4.3.14)
