1. Low: If the level drops below the Low limit, a warning occurs
and activates the digital output Controlled output, Low and
simultaneously deactivates the digital output Controlled output,
if it is not deactivated beforehand.
2. Stop: If the level drops below the Stop limit, the digital output
Controlled output is deactivated.
3. Start: If the level exceeds the Start limit, the digital output
Controlled output is activated.
4. High: If the level exceeds the High limit, a warning occurs
and activates the digital output Controlled output and
simultaneously activates the digital output Controlled output,
High, if it is not activated beforehand.

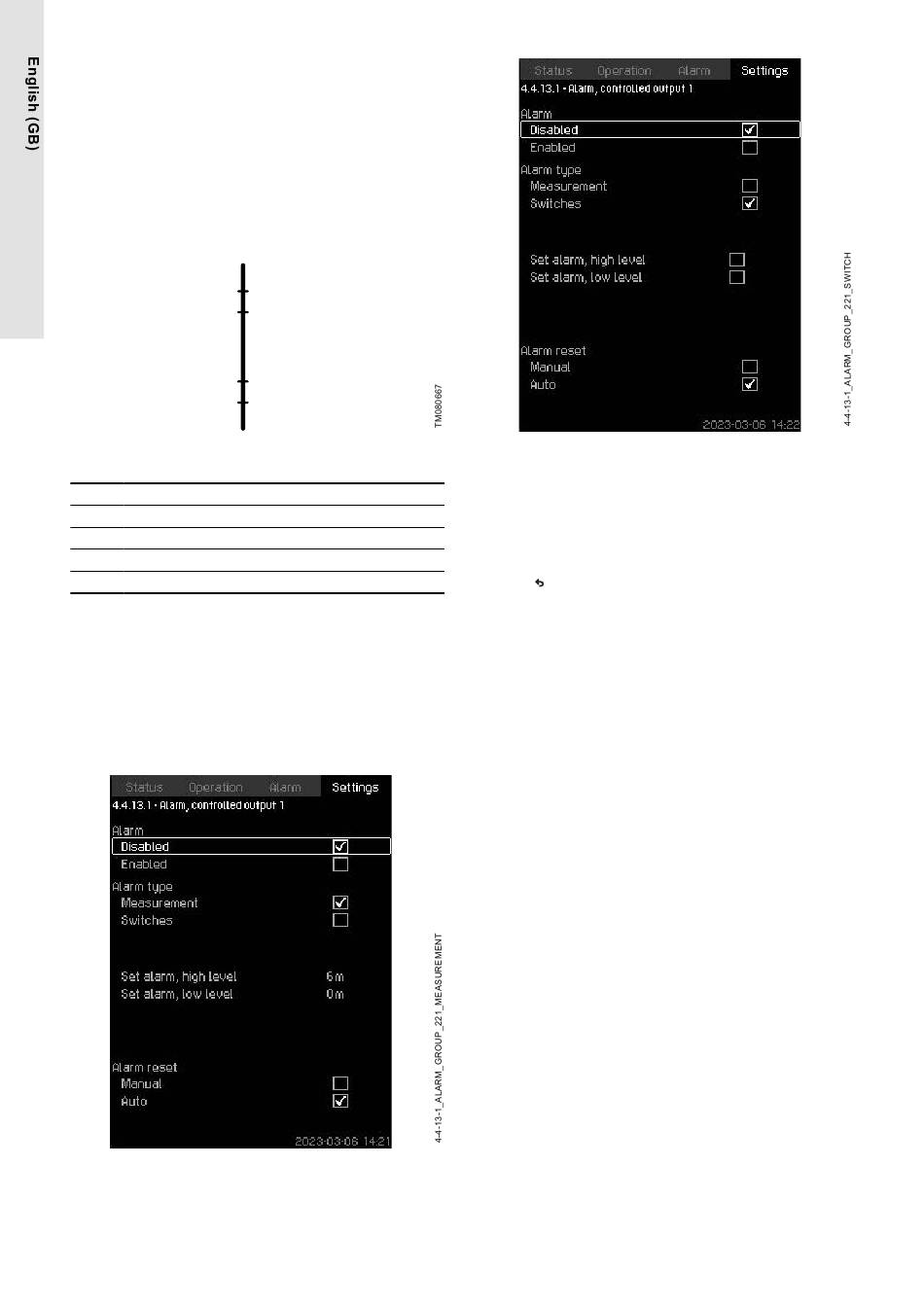

Inverse controlled output
Pos. Description
H High
1 Start
2 Stop
L Low
Setting range
1. Alarm type: select measurement or switches.
2. Set delay time: A delay can be set between the detection of an
exceeded indicator and the activation of the digital output.
3. Set start level: set the start level for activating the output (hidden
if Switches is selected).
4. Set stop level: set the stop level for deactivating the output
(hidden if Switches is selected).
5. Set Alarm type: configure the alarm.
Alarm measurement
72
H
1
2
L
Alarm switches
Setting via the operating panel
• Settings > Monitoring functions > Controlled output 1/
Controlled output 2.
1. Select Alarm type.
2. Go to setting of analog / digital input.
3. Press × 2.
4. Select: Input value to be monitored.
5. Set delay time.
6. Set start level.
7. Set stop level.
8. Configure alarm type. Display 4.4.13.1-2 appears.
