8.6.36 Output signal (4.3.10.1 - 4.3.10.3)
Output signal
Description
You can select the parameters below.
Setting range
• 0-100 % signal
• Flow rate 1-6
• Inlet pressure
• Outlet pressure
• External pressure
• Diff. pressure, pump
• Tank level, outlet side
• Tank level, suction side
• System pressure
• Diff. pressure, external
• Tank precharge pressure
• Diff. pressure, inlet
• Diff. pressure, outlet
• Return-pipe temp., external
• Flow-pipe temperature
• Return-pipe temperature
• Differential temperature
• Ambient temperature
• System power
• Power, pump 1-6
• Power, pilot pump
• Power, VFD
• Speed, pump 1-6
• Speed, pilot pump
• Current, pump 1-6
• Current, pilot pump
• Specific energy

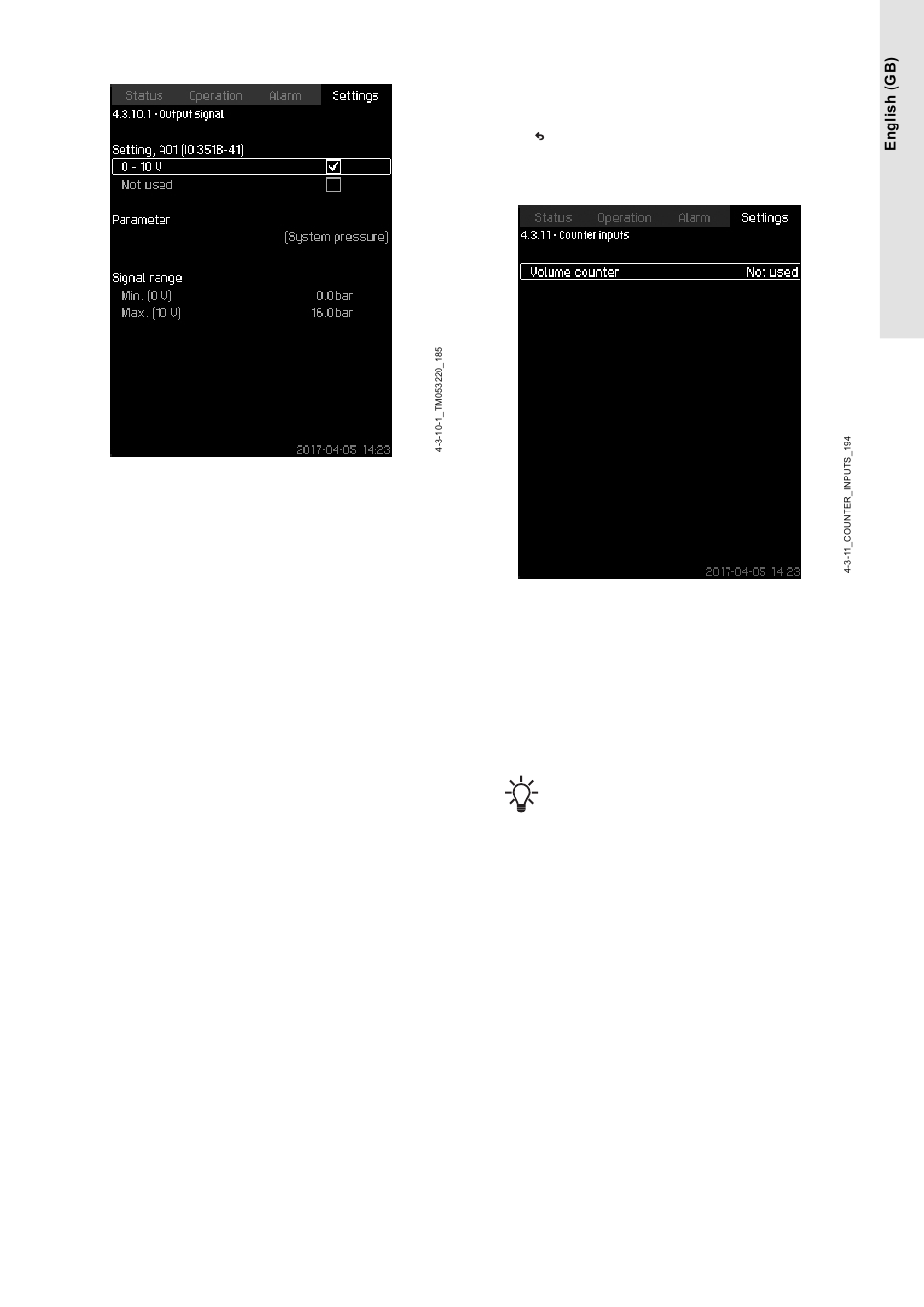

Setting via the operating panel
• Settings > Secondary functions > Go to setting of analog
input.
1. Select analog output and range.
2. Select: Parameter. Display 4.3.10.2 appears.
3. Select output.
4. Press .
5. Set: Signal range.
8.6.37 Counter inputs (4.3.11)
Counter inputs
Description
You can set CU 352 to accumulate a pumped volume from a digital
water meter.
Setting via the operating panel
1. Select digital input for volume counter
2. Define unit (unit of volume per digital input pulse).
3. Define scaling of pulse counts.
This menu only appears if an IO 351B module is
connected to CU 352.
