2.3 Identification

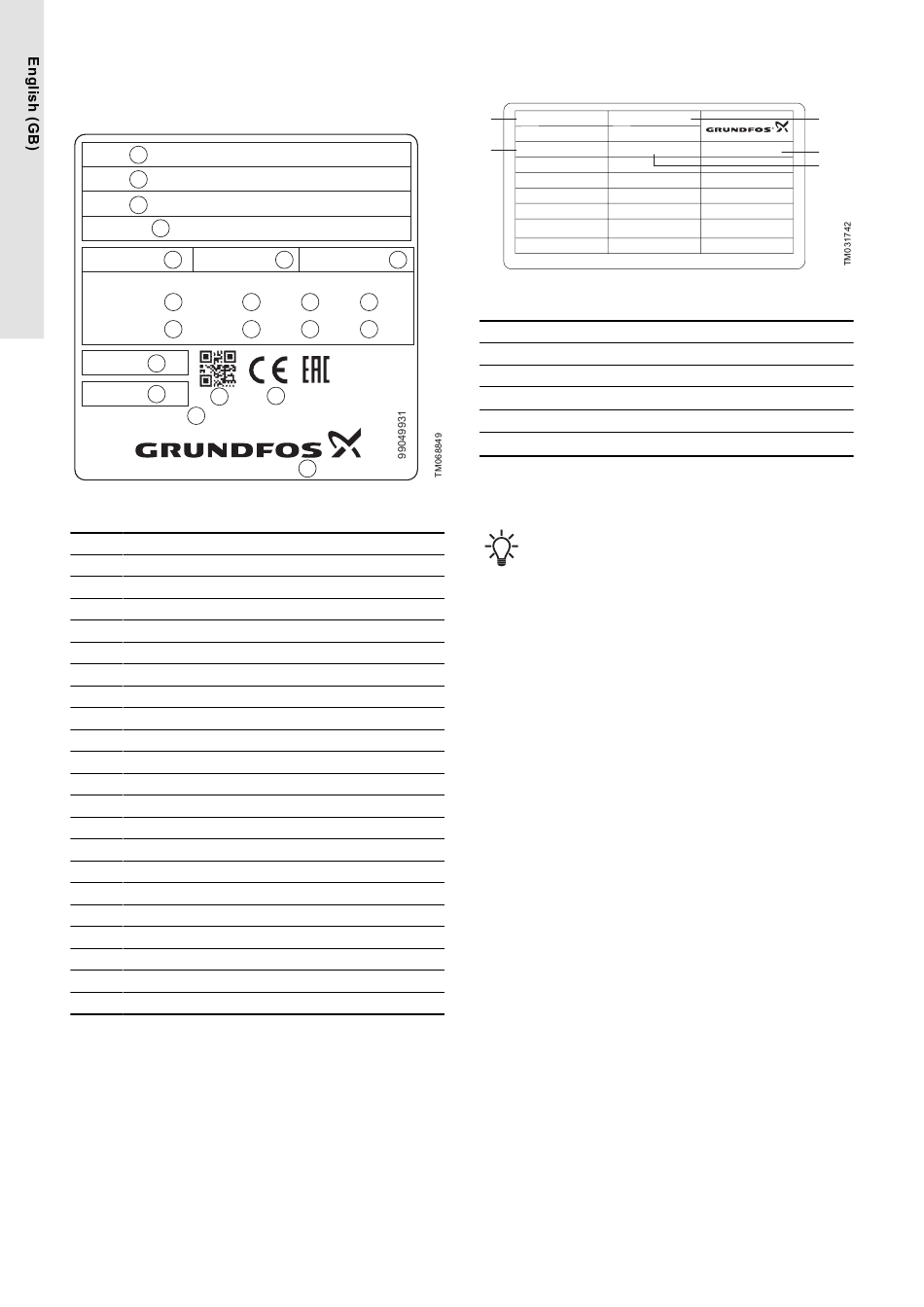

2.3.1 Nameplate, Control MPC
The nameplate is fitted on the base frame.
1
Type:
Model:
2
Mains: 3
Order No.: 4
A
In: 5 Icc
No.
Pumps:
8
Pilot Pump:
12 13
IP Class:
16
Weight: 17 kg
18
20
MADE IN GERMANY
T y 3432-021-59379130-2014
DK - 8850 - Bjerringbro - Denmark
Nameplate
Pos. Description
1 Product type
2 Code for model
3 Main supply
4 Order No.
5 Rated current [A]
6 Circuit rated current [kA]
7 Maximum ambient temperature [°C]
8 Number of mains-operated pumps
9 Power [kW] of mains-operated pumps
10 Rated current [A] of mains-operated pumps
11 Rated voltage [V] of mains-operated pumps
12 Pilot pump
13 Power [kW] of pilot pump
14 Rated current [A] of pilot pump
15 Rated voltage [V] of pilot pump
16 Enclosure class
17 Weight [kg]
18 QR code
19 Approval marks
20 Country of origin
21 Company address
6
kA 6 T °C 7
ambmax :
P I U
9 10 11
14 15
19
21
2.3.2 Software label
The software label is placed on the back of CU 352.
1 3. Hydro MPC
1. Control MPC
2
2. C-MPC options 4. H-MPC options 5. Pump data
CONFIGURATION STEPS -PLEASE FOLLOW THE NUMBERS
Software label
Pos. Description
1 Control MPC - GSC file number
2 Control MPC options - GSC file numbers
3
Hydro MPC - GSC file number
4 Hydro MPC options - GSC file numbers
5 Pump data - GSC file number
1) Applies only to systems.
2) Applies only to CR, CRI, CRN, CRE and CRIE pumps.
A GSC (Grundfos Standard Configuration) file is a
configuration data file.
3
5
4
96586126
1)
1)
2)
